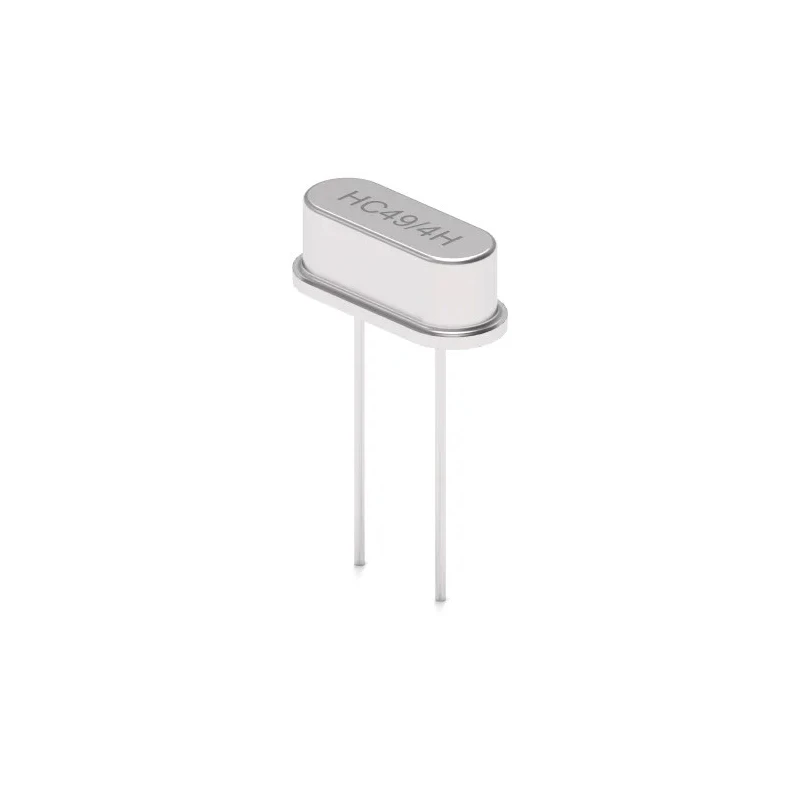

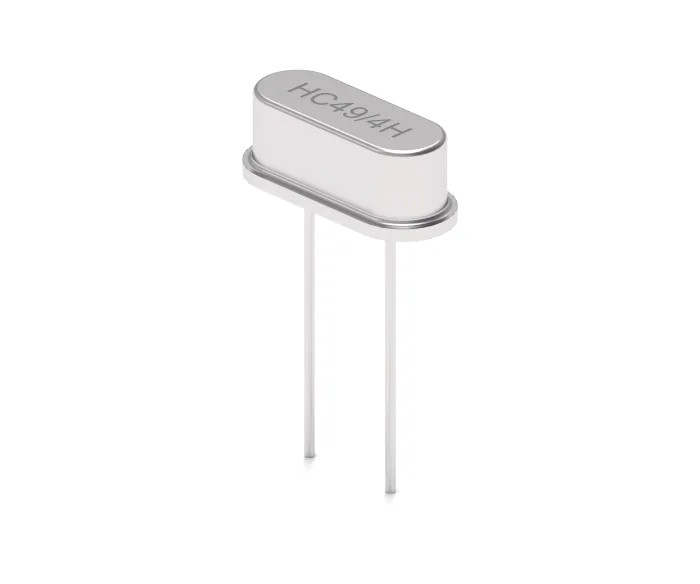

IQD 4 MHz Crystal Unit ±20 ppm HC-49 Through Hole 2-Pin 4.1 mm Height 11.05 mm Length 4.7 mm Width LFXTAL003074B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Height | 4.1mm |
| Length | 11.05mm |
| Model | LFXTAL003074B |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 60°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 4MHz |
| Load Capacitance | 30pF |
| Series Resistance | 130Ω |
Key Features
- Features a ±20 ppm frequency tolerance for accurate signal timing.
- Constructed with a hermetically sealed HC-49 package for enhanced durability.
- Fits through-hole mounting with 2 pins for easy PCB integration.
- Physical dimensions are 11.05 mm in length, 4.7 mm in width, and 4.1 mm in height.
- Load capacitance is rated at 30 pF providing stable load conditions.
- Operates reliably between -10°C and 60°C ensuring broad environmental use.
- Series resistance is specified at 130 Ω for optimal electrical characteristics.
- Complies with RoHS standards supporting environmental safety.
Product Description
IQD LFXTAL003074B 4 MHz Crystal Unit is a precision electronic component designed to provide stable oscillator frequency for various electronic circuits. Its ±20 ppm frequency tolerance ensures reliable timing in communications, instrumentation, and control systems.
The crystal is packaged in a HC-49 through-hole mount with 2 pins, enabling straightforward soldering to printed circuit boards. The hermetically sealed glass-to-metal construction preserves component integrity and enhances longevity in industrial applications.
With a length of 11.05 mm, width of 4.7 mm, and height of 4.1 mm, this compact unit is suitable for a wide range of compact devices. The load capacitance rating of 30 pF and series resistance of 130 Ω meet precision oscillation requirements.
This crystal operates reliably across temperatures from -10°C to 60°C, making it adaptable for standard industrial, commercial, and laboratory environments. Being RoHS compliant, it meets industry environmental standards.
Features a ±20 ppm frequency tolerance for precise timing. Hermetically sealed HC-49 package for durability. Through hole mounting with 2-pin configuration. Compact dimensions: 11.05 mm length, 4.7 mm width, 4.1 mm height.
Load capacitance of 30 pF ensures stable oscillation. Series resistance of 130 Ω for optimal electrical performance. Operating temperature range from -10°C to 60°C. RoHS compliant for environmental safety.
This crystal unit is ideal for use in industrial oscillators, instrumentation, audio equipment, communications devices, and other electronic applications requiring stable and precise frequency control. It supports manufacturing, testing, and development environments needing high-reliability components.
Explore more Crystal Units and electronic components in the Electronics & Electricals category at EnvMart, offering comprehensive solutions for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The frequency tolerance of this crystal unit is ±20 ppm, ensuring reliable timing for various applications.
This model has a length of 11.05 mm, a width of 4.7 mm, and a height of 4.1 mm, making it compact for various uses.
The load capacitance is rated at 30 pF, providing stable load conditions for oscillation.
The series resistance of this crystal unit is specified at 130 Ω, which contributes to optimal electrical characteristics.
It operates reliably between -10°C and 60°C, suitable for various industrial and commercial environments.
This model features through-hole mounting with a 2-pin configuration for easy integration into printed circuit boards.
It is packaged in an HC-49 type, which is hermetically sealed for enhanced durability.
Yes, this crystal unit complies with RoHS standards, supporting environmental safety in its applications.
It is ideal for use in industrial oscillators, instrumentation, audio equipment, and communications devices that require stable frequency control.
The country of origin for this crystal unit is India.
The ±20 ppm frequency tolerance contributes to precise timing, which is crucial for communications, instrumentation, and control systems.
This model features a pin count of 2, facilitating its connection to circuits.
