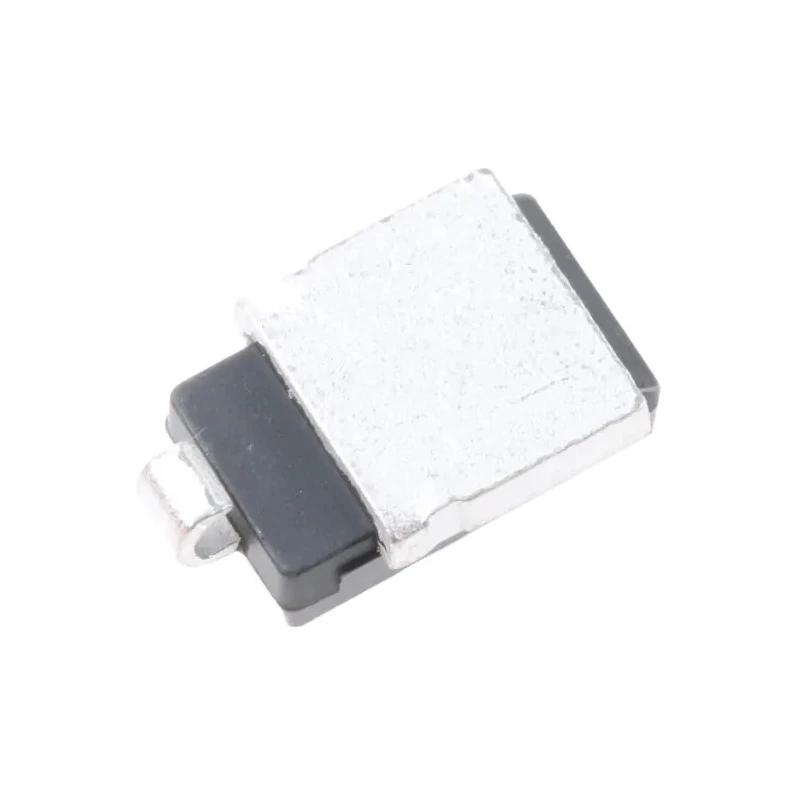

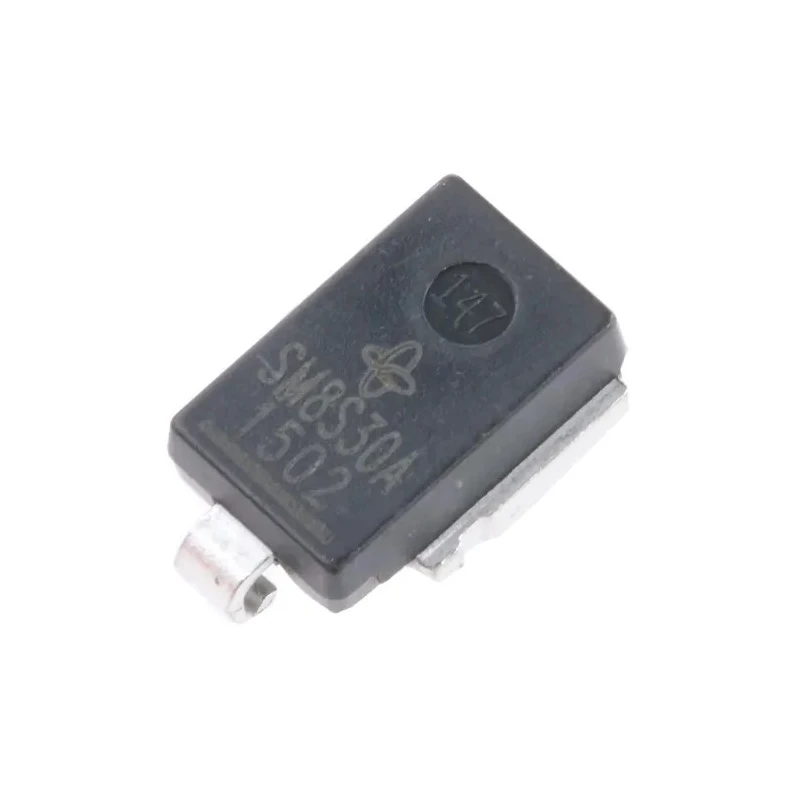

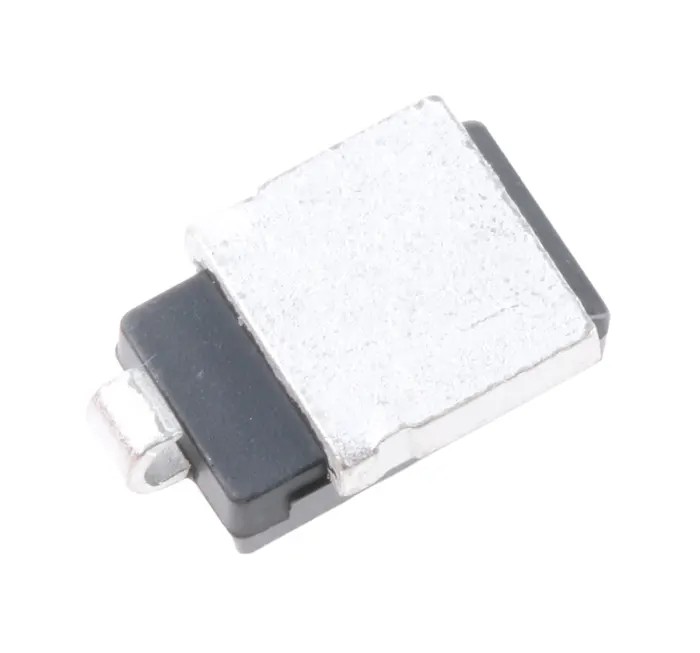

Vishay Uni-Directional TVS Diode 6.6 kW 2-Pin DO-218 SM8S30AHE3_A/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 5mm |
| Length | 13.7mm |
| Model | SM8S30AHE3_A/I |
| Width | 8.7mm |
| Mount Type | Surface |
| Series | PAR TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-218 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 48.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 33.3V |
| Maximum Reverse Stand-off Voltage Vwm | 30V |
| Peak Pulse Power Dissipation Pppm | 6.6kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 136A |
| Maximum Reverse Leakage Current | 150μA |
Key Features
- Single-element diode designed for uni-directional protection.
- Minimum breakdown voltage of 33.3 volts ensures precise clamping.
- Peak pulse power rating of 6.6 kilowatts for high surge absorption.
- Operating temperature ranges from -55°C to 175°C for versatile applications.
- Compact DO-218 surface mount package with dimensions 13.7 mm × 8.7 mm × 5 mm.
- Max peak pulse current capability of 136 amperes provides strong transient handling.
- Automotive grade with AEC-Q101 certification for reliability.
- Low maximum reverse leakage current of 150 microamperes.
Product Description
Vishay SM8S30AHE3_A/I Uni-Directional TVS Diode is a high-performance transient voltage suppressor designed to protect sensitive electronics from voltage spikes and surges. Featuring a single-element diode configuration and uni-directional direction type, this device effectively clamps transient voltages up to 48.4 volts with a peak pulse power dissipation of 6.6 kW.
The diode is housed in a compact DO-218 surface mount package measuring 13.7 millimeters in length, 8.7 millimeters in width, and 5 millimeters in height. It operates reliably within a temperature range of -55 degrees Celsius to 175 degrees Celsius, making it suitable for demanding automotive and industrial environments. The maximum peak pulse current rating is 136 A, enabling it to withstand and safely dissipate severe transient events.
With its minimal reverse leakage current of 150 microamperes and compliance with automotive AEC-Q101 standards, the SM8S30AHE3_A/I ensures high reliability and integrates seamlessly into circuit protection designs for industrial electronics, automotive systems, and power supply safeguarding.
This TVS diode is designed for surface-mount installation with a 2-pin configuration, supporting automatic insertion and assembly in manufacturing processes. It is part of Vishay's PAR TVS series, renowned for robust surge protection components that enhance system durability.
Single-element diode designed for uni-directional protection. Minimum breakdown voltage of 33.3 volts ensures precise clamping. Peak pulse power rating of 6.6 kilowatts for high surge absorption. Operating temperature ranges from -55°C to 175°C for versatile applications.
Compact DO-218 surface mount package with dimensions 13.7 mm × 8.7 mm × 5 mm. Max peak pulse current capability of 136 amperes provides strong transient handling. Automotive grade with AEC-Q101 certification for reliability.
Low maximum reverse leakage current of 150 microamperes. Designed for surface mount with 2-pin configuration. Ideal for industrial, automotive, and electronic circuit protection applications. Explore a comprehensive range of semiconductor components and TVS Diodes at EnvMart for reliable and efficient electronic system protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power rating of the Vishay Uni-Directional TVS Diode SM8S30AHE3_A/I is 6.6 kilowatts, allowing it to absorb high surge events effectively.
The minimum breakdown voltage of this diode is 33.3 volts, ensuring precise clamping during transient events.
This model has a maximum peak pulse current capability of 136 amperes, providing strong transient handling capacity.
The dimensions of the DO-218 surface mount package are 13.7 mm in length, 8.7 mm in width, and 5 mm in height.
It operates reliably within a temperature range of -55°C to 175°C, making it suitable for various applications.
Yes, this diode is automotive grade and complies with AEC-Q101 certification for reliability in automotive applications.
The SM8S30AHE3_A/I features a single-element diode configuration designed for uni-directional protection.
The clamping voltage (VC) for this model is 48.4 volts, which helps protect sensitive electronics from voltage spikes.
The DO-218 package of this diode has 2 pins, allowing for surface mount installation.
The test current (It) for the SM8S30AHE3_A/I is 5 milliamperes, used during testing to ensure performance standards are met.
This diode is part of Vishay's PAR TVS series, known for robust surge protection components.
