TE Connectivity MS54XX Series Absolute Pressure Sensor Surface Mount 8-Pin 20V 125°C 325401000-00

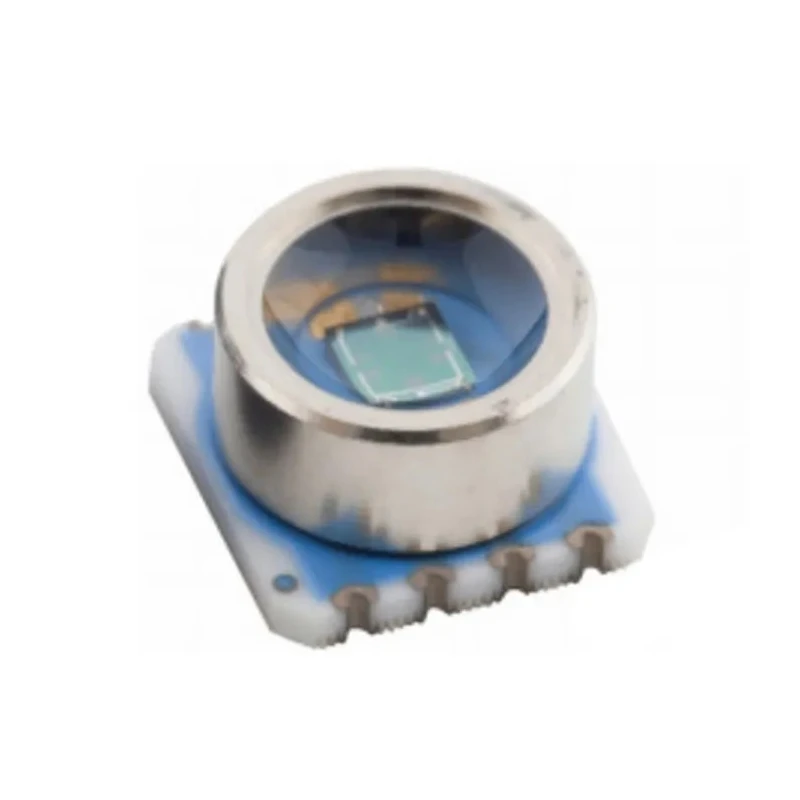

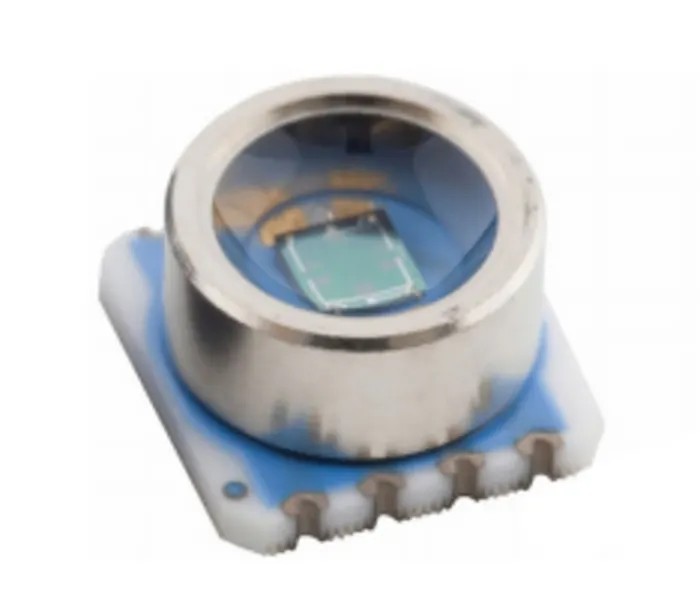

TE Connectivity 325401000-00 is an advanced absolute pressure sensor from the MS54XX series designed for high accuracy and resolution in pressure measurement systems. This surface mount device is built on a silicon micromachined piezoresistive sensor die, mounted on a small 6.2 x 6.4 mm ceramic carrier ensuring durability and stability.

Operating under a maximum supply voltage of 20 V, it can handle absolute pressure ranges from 0 bar up to 1 bar, with overload capacity reaching 10 bar, making it suitable for demanding industrial environments. The sensor operates reliably within a wide temperature range of -40°C to 125°C, maintaining stable output characteristics.

The device provides a linear output voltage directly proportional to the applied pressure, with a maximum output voltage of 180 mV. Designed for surface mounting with 8 pins, it integrates seamlessly in compact electronic circuits requiring high reliability and sensitivity.

Manufactured in Switzerland and compliant with ISO 2281 standards, this sensor finds application in automotive, manufacturing, HVAC, laboratory instrumentation, and water treatment monitoring where precise pressure sensing is essential.

The MS54XX series includes both high sensitivity and high linearity versions, offering choices tailored to specific application needs. This model, 325401000-00, features low noise and high linearity, ensuring accurate and consistent pressure readings.

This sensor offers a maximum operating pressure of 1 bar and maximum overload pressure of 10 bar. The device works reliably from -40°C to 125°C temperature range. It features a compact size with length 6.4mm and height 6.2mm on a ceramic carrier.

The sensor provides output voltage proportional to applied pressure with a maximum output of 180mV. The robust surface mount design ensures easy PCB integration for industrial and automotive applications. Manufactured in Switzerland, meeting ISO 2281 standards for quality and reliability.

Pin count is 8, ensuring stable surface mounting capability. Explore the extensive range of Pressure Sensor ICs in the Electronics & Electrical category at EnvMart for high performance and reliability.
