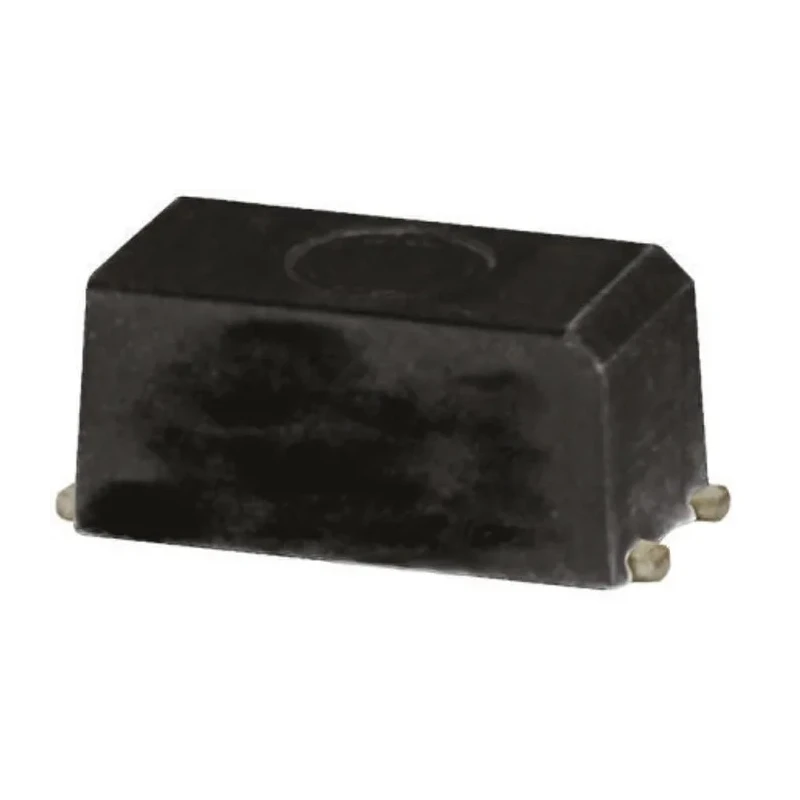

Panasonic PhotoMOS AQY Series Solid State Relay, 0.25 A Load Current, 40 V Load Voltage, 5V DC Control, PCB Mount AQY221R2V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 1.8mm |
| Length | 2.7mm |
| Model | AQY221R2V |
| Width | 4.4mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | PhotoMOS AQY |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | SOP-4 |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Maximum Load Current | 0.25A |
| Standards/Approvals | cUL, RoHS, UL |
| Maximum Load Voltage | 40V |
| Minimum Load Voltage | 0V |
| Minimum Control Voltage | 1.5V dc |
| Maximum Control Voltage | 5V dc |
| Off State Leakage Current | 0.02μA |
| On State Resistance | 23.5Ω |
Key Features
- The relay uses MOSFET output type for efficient switching.
- It supports a single-pole single-throw (SPST) contact configuration.
- Operating temperature ranges from -40°C to 85°C for robust performance.
- The package type is SOP-4, suitable for compact PCB designs.
- Approved by cUL, RoHS, and UL ensuring compliance with safety standards.
- Compact dimensions of 2.7mm length, 4.4mm width, and 1.8mm height make it suitable for dense layouts.
- Low-level analog signals control capability with minimum control voltage as low as 1.5V DC.
- Low-level off-state leakage current at a maximum of 0.02 μA enhances energy efficiency.
Product Description
Panasonic AQY221R2V PhotoMOS AQY Series Solid State Relay offers reliable performance for controlling low-level analog signals in industrial and electronic applications. The device supports a maximum load current of 0.25 A and a load voltage of up to 40 V, with a control voltage ranging from 1.5V to 5V DC. Utilizing MOSFET output technology, it provides low on-state resistance of 23.5Ω and minimal off-state leakage current of 0.02 μA, which contributes to efficient power management.
Constructed for PCB mounting with a compact SOP-4 package, this relay occupies minimal board space with dimensions of 2.7mm length, 4.4mm width, and 1.8mm height, making it ideal for tight electronic assemblies. Its contact configuration is SPST, providing simple switch operation with high reliability.
Designed to operate reliably across a broad temperature range from -40°C to 85°C, the AQY221R2V is suitable for industrial, automation, and control system environments. It complies with industry standards including cUL, RoHS, and UL certifications, reaffirming its quality and safety. This makes it well suited for incorporation into automation, electrical, and signal conditioning applications in manufacturing, laboratory, and process control sectors.
The solid state relay’s capabilities make it optimal for applications requiring precise switching with low power consumption and minimal signal interference. Employs MOSFET output for low resistance and stable switching.
Compact SOP-4 package for space-saving PCB integration. Wide operating temperature range for harsh environments. Low off-state leakage current increases energy efficiency. Certified to comply with RoHS, cUL, and UL standards.
Supports control voltage from 1.5V to 5V DC for flexible interfacing. SPST contact configuration simplifies control circuit designs. Lightweight and compact dimensions enable high-density circuit design. Explore more Panasonic Solid State Relays and electronic components to meet your industrial automation and control system requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for the AQY221R2V is 0.25 A.
This relay supports a maximum load voltage of 40 V.
The control voltage range for this model is from 1.5V to 5V DC.
It utilizes a MOSFET output type for efficient switching.
The dimensions are 2.7 mm in length, 4.4 mm in width, and 1.8 mm in height.
The AQY221R2V features a single-pole single-throw (SPST) contact configuration.
It operates reliably within a temperature range of -40°C to 85°C.
The on-state resistance is 23.5Ω.
The maximum off-state leakage current is 0.02 μA.
It is approved by cUL, RoHS, and UL, ensuring compliance with safety standards.
This model is designed for PCB mounting.
This solid state relay is suitable for industrial, automation, and control system applications requiring precise switching with low power consumption.
