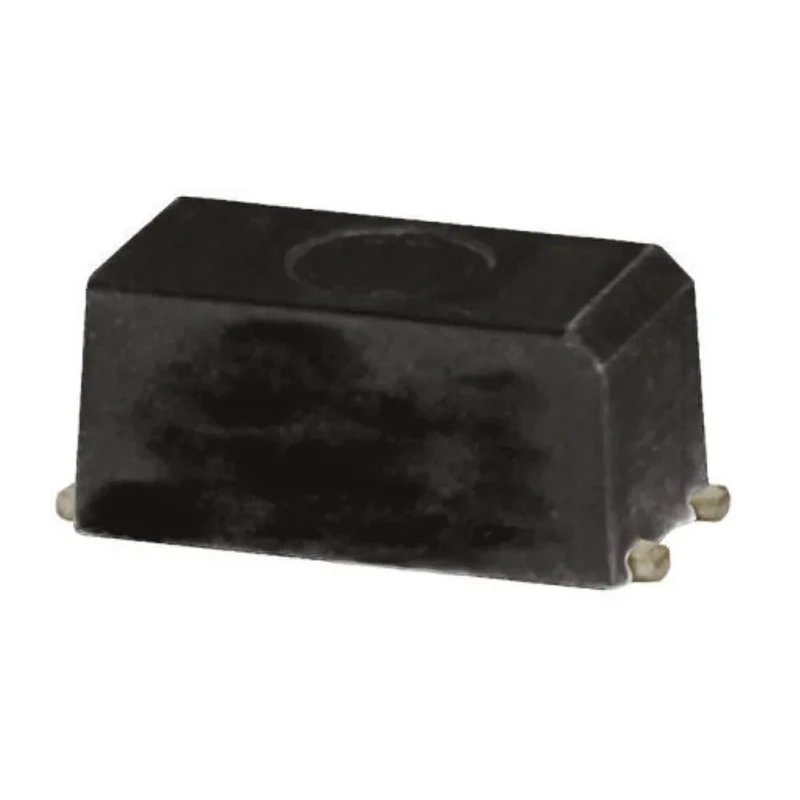

Panasonic PhotoMOS AQY Series Solid State Relay, 0.15 A Load, PCB Mount, 25 V Load, 1.5 V Control AQY221N3V

Panasonic AQY221N3V PhotoMOS AQY Series Solid State Relay is engineered for efficient low-level analog signal control. This compact relay supports a maximum load current of 0.15 amperes and withstands load voltages up to 25 volts. Its surface-mount SOP-4 package is optimized for printed circuit board (PCB) mounting, making it ideal for compact industrial and electronic applications.

The relay features a low on-state resistance of 23.5 ohms, reducing power losses and enhancing performance in sensitive electronic circuits. It operates reliably across a wide temperature range from -40° C up to 85° C, providing durability in demanding environments.

Its contact configuration is single pole single throw (SPST) and it uses MOSFET output for rapid switching with minimal off-state leakage current of 10 nA, beneficial for energy-efficient designs. Panasonic ensures compliance with UL, cUL, and RoHS regulations, underlining quality and environmental standards.

This relay is suitable for industrial automation, electrical control systems, instrumentation, and signal conditioning where precise and reliable switching is essential. Its compact dimensions (length 2.7 mm, width 4.5 mm, height 1.8 mm) allow integration into densely packed PCBs.

Controls low-level analog signals efficiently. Low off-state leakage current ensures minimal power loss. Compact SOP-4 package for PCB mounting. Compliant with UL, cUL, and RoHS standards. Wide operating temperature range ensures reliability in industrial conditions.

MOSFET output type enables fast and low-power switching. Single pole single throw contact configuration. Manufactured in Japan assuring quality and performance.
