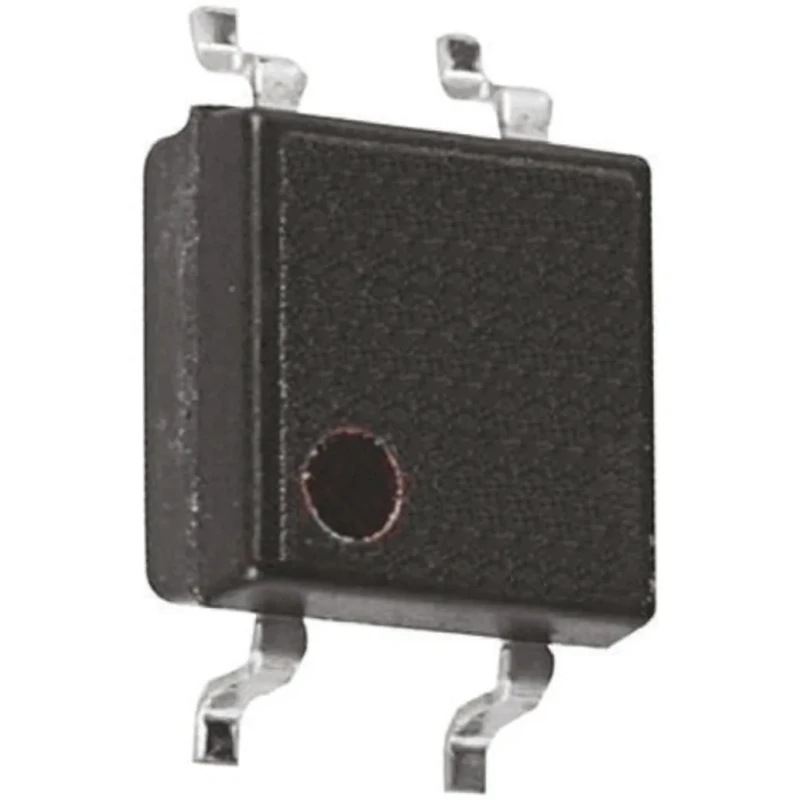

Panasonic PhotoMOS AQY Series Solid State Relay, 0.12A Load Current, PCB Mount, 40V Load Voltage, 1.5V Control AQY221N2S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.1mm |
| Length | 4.3mm |
| Model | AQY221N2S |
| Width | 4.4mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | PhotoMOS AQY |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | SOP-4 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Maximum Load Current | 0.12A |
| Standards/Approvals | cUL, UL, RoHS |
| Maximum Load Voltage | 40V |
| Minimum Load Voltage | 0V |
| Minimum Control Voltage | 1.14V |
| Maximum Control Voltage | 1.5V |
| Off State Leakage Current | 10nA |
| On State Resistance | 23.5Ω |
Key Features
- Compact SOP-4 package with dimensions 4.3mm length, 4.4mm width, and 2.1mm height.
- Surface mount terminal type with single pole single throw contact configuration.
- Low on-state resistance of 23.5Ω and off-state leakage current as low as 10nA.
- Wide operating temperature range from -40°C to 85°C.
- MOSFET output type suitable for low-level analog signal switching.
- Complies with cUL, UL, and RoHS safety and environmental standards.
- Manufactured in Japan ensuring high reliability and quality.
Product Description
Panasonic AQY221N2S PhotoMOS AQY Series Solid State Relay is a high-performance electronic switch designed for precise control of low-level analog signals in industrial, automation, and electrical applications. Featuring a compact SOP-4 surface mount package, this relay supports a maximum load current of 0.12A and a maximum load voltage of 40V with low control voltage requirement of 1.5V, making it ideal for PCB mounting in space-constrained environments.
The relay offers a single pole single throw (SPST) contact configuration with low on-state resistance of 23.5Ω, contributing to efficient switching with minimal power loss. It exhibits an off-state leakage current of only 10nA, ensuring low standby power consumption. The device is rated for operation across a wide temperature range of -40°C to 85°C, suitable for various demanding usage conditions.
Equipped with MOSFET output technology, the AQY221N2S relay delivers fast switching capabilities and high reliability. It complies with cUL, UL, and RoHS standards, guaranteeing safety and environmental friendliness. Manufactured in Japan, this solid state relay assures consistent quality and durability for industrial automation, electronics manufacturing, HVAC control systems, and other applications where precise electronic switching is essential.
Compact 4.3mm by 4.4mm by 2.1mm SOP-4 surface mount package. Maximum load current of 0.12A and load voltage of 40V. Low on-state resistance and minimal off-state leakage current. Wide operating temperature range from -40°C to 85°C for reliable performance.
Compliant with international safety and environmental standards. Excellent for industrial automation, electrical control, and laboratory instrumentation. Made in Japan, symbolizing robust design and quality assurance. Explore more Panasonic Solid State Relays on EnvMart to find components tailored for your automation and control gear requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.12A.
The maximum load voltage for the AQY221N2S is 40V.
This relay requires a maximum control voltage of 1.5V.
The dimensions of this model are 4.3mm in length, 4.4mm in width, and 2.1mm in height.
The AQY221N2S features a single pole single throw (SPST) contact configuration.
The on-state resistance for this relay is 23.5Ω.
The off-state leakage current is as low as 10nA.
This relay operates within a temperature range of -40°C to 85°C.
It complies with cUL, UL, and RoHS safety and environmental standards.
This model is designed for PCB mounting.
The AQY221N2S is manufactured in Japan.
This relay uses MOSFET output technology.
