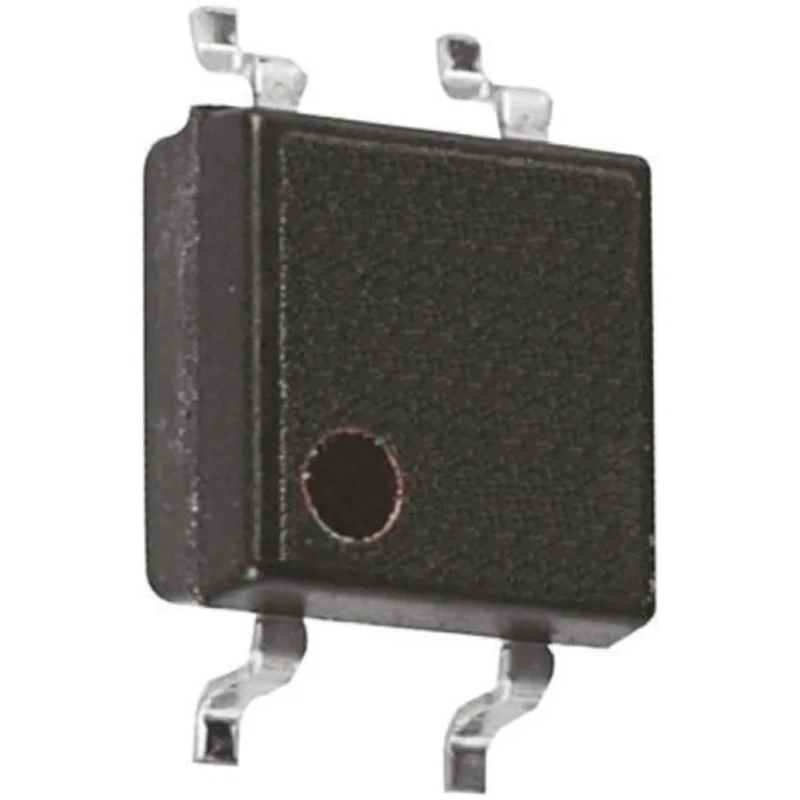

Panasonic PhotoMOS AQY Series Solid State Relay, 0.25 A Load Current, PCB Mount, 40 V Load Voltage, 1.5 V Control AQY221R2S

Free Delivery in India | Lowest Global Shipping Charges

Panasonic PhotoMOS AQY Series Solid State Relay, 0.25 A Load Current, PCB Mount, 40 V Load Voltage, 1.5 V Control AQY221R2S

Name: Panasonic PhotoMOS AQY Series Solid State Relay, 0.25 A Load Current, PCB Mount, 40 V Load Voltage, 1.5 V Control AQY221R2S
Brand: Panasonic
SKU: 214012
Price: 6.96 USD
Availability: InStock



Category Solid State Relay Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	2.1mm
Length	4.3mm
Model	AQY221R2S
Width	4.4mm
Mount Type	PCB
Output type	MOSFET
Series	PhotoMOS AQY
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Package Type	SOP-4
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Maximum Load Current	0.25A
Standards/Approvals	RoHS, UL, cUL
Maximum Load Voltage	40V
Minimum Load Voltage	0V
Minimum Control Voltage	1.14V
Maximum Control Voltage	1.5V
Off State Leakage Current	10nA
On State Resistance	23.5Ω

Key Features

Designed for low-level analog signal control applications.
Surface mount with SOP-4 package for compact PCB integration.
Low on-state resistance of 23.5 ohms for efficient operation.
Wide operating temperature range from -40°C to 85°C.
Low off-state leakage current of 10 nA ensuring minimal power loss.
Single pole single throw (SPST) contact configuration.
Control voltage ranges from 1.14 V minimum to 1.5 V maximum.
MOSFET output type ensuring fast switching performance.

Product Description

Panasonic AQY221R2S PhotoMOS AQY Series solid state relay is engineered to control low-level analog signals efficiently with a maximum load current of 0.25 A and PCB surface mount packaging.

This relay features a 40 V maximum load voltage and maintains low on-state resistance of 23.5 ohms, contributing to reduced power dissipation and improved performance in electronic control circuits.

The device supports single pole single throw (SPST) contact configuration, suitable for signal switching in industrial automation, instrumentation, HVAC, and electronic manufacturing applications.

Encased in a SOP-4 surface mount package, the relay measures 4.3 mm length, 4.4 mm width, and 2.1 mm height, allowing compact PCB layout. It operates reliably across a wide temperature spectrum from -40°C to +85°C and demonstrates exceptionally low off-state leakage current at 10 nA.

Operates at control voltages from 1.14 V to 1.5 V ensuring compatibility with low-voltage control circuits. Output type is MOSFET, providing efficient and fast switching. RoHS-compliant and certified by UL and cUL ensuring safety and environmental standards.

Manufactured in Japan, this AQY221R2S model is ideal for use in industrial automation systems, control panels, laboratory equipment, HVAC controls, and other electronics requiring reliable solid state relays.
