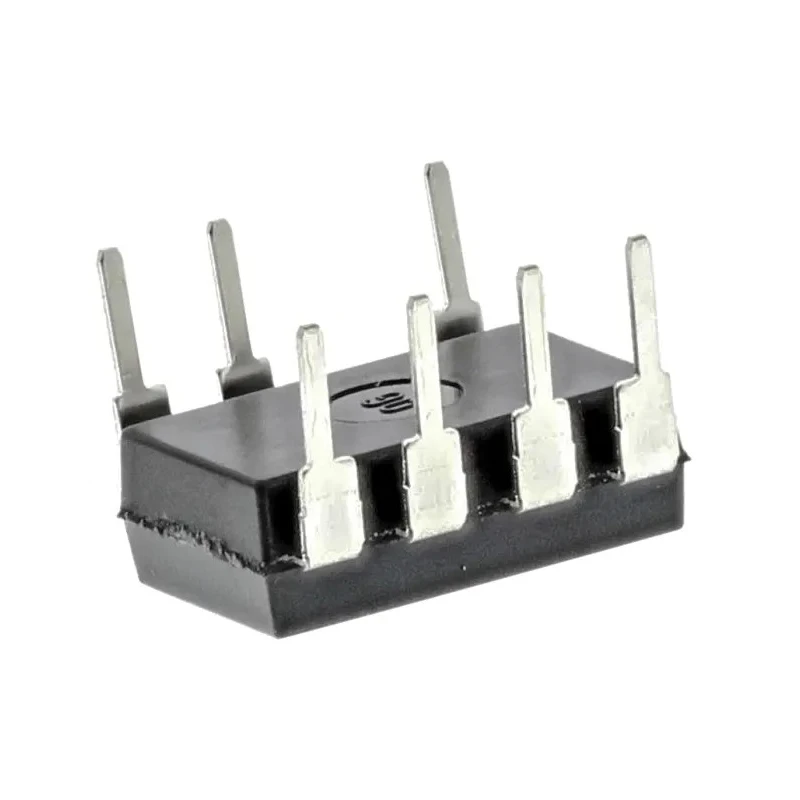

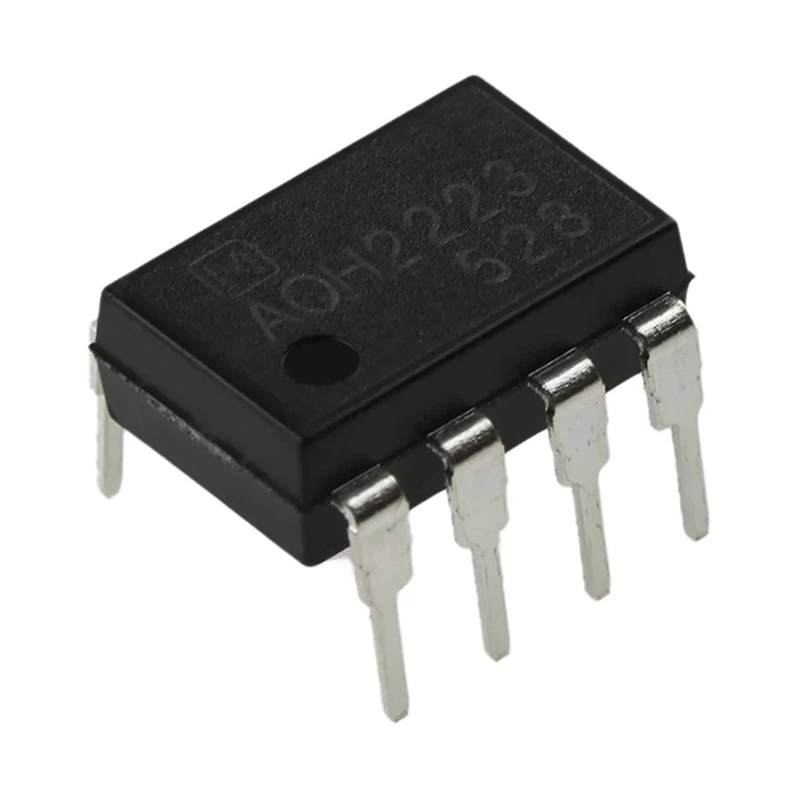

Panasonic AQ-H Series Solid State Relay, 0.9A Load, PCB Mount, 600V Load, 1.3V Control AQH2223
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 3.9mm |
| Length | 9.8mm |
| Model | AQH2223 |
| Width | 6.4mm |
| Mount Type | PCB |
| Output type | Phototriac Coupler |
| Series | AQ-H |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST-NO |
| Package Type | DIP-8 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 0.9A |
| Standards/Approvals | VDE, RoHS, cUL, UL |
| Maximum Load Voltage | 600V |
| Minimum Load Voltage | 0V ac |
| Minimum Control Voltage | 1.21V |
| Maximum Control Voltage | 1.3V |
| Off State Leakage Current | 100μA |
Key Features
- Compact DIP-8 package ideal for PCB mounting.
- Zero cross switching function ensures reduced electrical noise.
- High dielectric strength of 5000 Vac between input and output.
- Operating temperature range from -30°C to 85°C.
- Phototriac coupler output type with SPST-NO contact configuration.
- Through hole terminal type for secure mounting.
- Low off-state leakage current of 100μA.
- Minimum control voltage of 1.21V and maximum control voltage of 1.3V.
Product Description
Panasonic AQH2223 AQ-H Series solid state relay is a compact and highly reliable electronic switching device designed specifically for AC load control applications. It features a DIP-8 package for easy PCB mounting and offers a maximum load current of 0.9A at a maximum load voltage of 600V, making it suitable for a wide range of industrial, home appliance, and automation control uses.
This solid state relay utilizes zero cross switching functionality that helps reduce electrical noise and improves the switching reliability, enhancing the lifespan of connected devices. Its phototriac coupler output provides efficient isolation between the control input and the load circuit.
The relay operates reliably within a temperature range from -30°C to 85°C, supporting applications in diverse operating environments. With low off-state leakage current (100μA) and through hole terminal design, it ensures stable and easy installation on the PCB.
The device boasts a high dielectric strength of 5000 Vac between input and output, providing excellent voltage isolation and safety. Compact physical dimensions of 9.8mm length, 6.4mm width, and 3.9mm height make it space-efficient in circuit designs.
This Panasonic AQH2223 SSR complies with key international standards including VDE, RoHS, cUL, and UL, ensuring adherence to quality and safety norms. Typical applications include use in home appliances, industrial equipment, and automation systems requiring reliable AC load switching.
Compact DIP-8 package ideal for PCB mounting. Zero cross switching function reduces noise. High dielectric strength of 5000 Vac isolation. Robust operation in -30°C to 85°C range. Phototriac coupler output and SPST-NO contact.
Through hole terminals for secure mounting. Low off-state leakage current of 100μA. Precise control voltage range: 1.21V to 1.3V. Compact size with 9.8mm x 6.4mm x 3.9mm dimensions. Certified to VDE, RoHS, cUL, UL standards.
Explore more Solid State Relays and electronic components in the Electronics & Electricals category at EnvMart for superior industrial automation solutions.
