Panasonic AQW Series Solid State Relay 0.1A Load 400V PCB Mount MOSFET Output AQW614

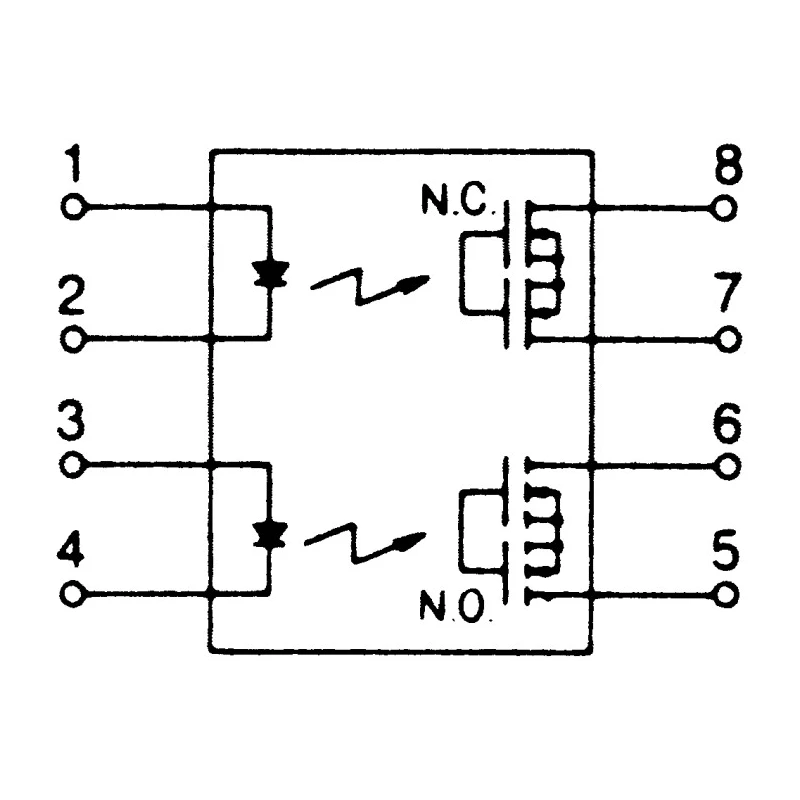

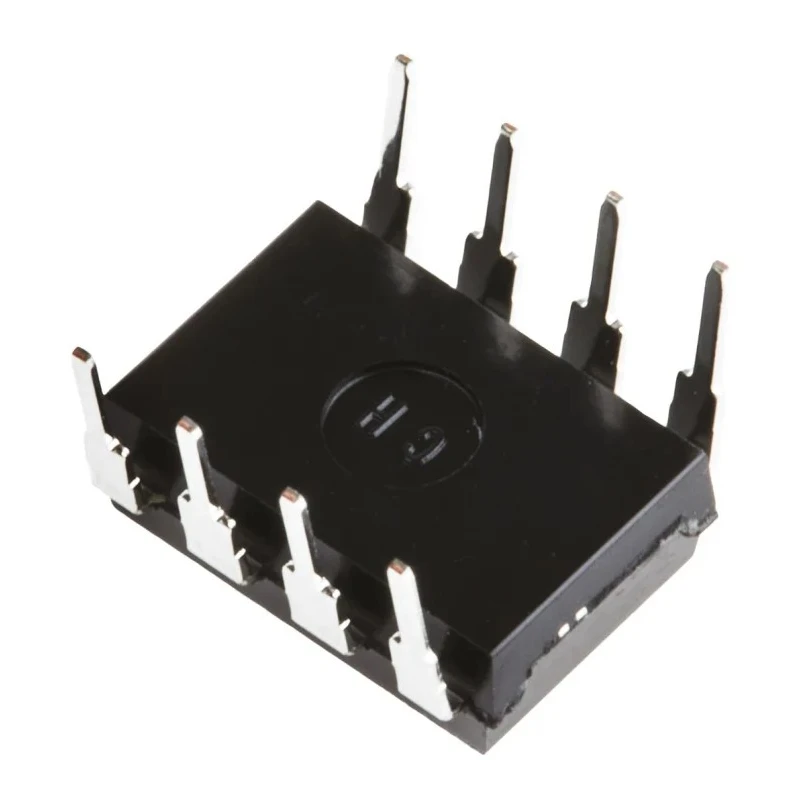

Panasonic AQW614 Solid State Relay is a high-performance Photomos optoelectronic relay equipped with a MOSFET output stage, housed in an 8-pin DIP casing. It supports a maximum load current of 0.1 A and a load voltage rating of up to 400 V. Designed for PCB mounting, the device ensures easy integration into electronic assemblies.

This solid state relay features a low on-state resistance of 50 ohms, limiting power loss and heat generation during operation. Its off-state leakage current is exceptionally low at 1 microampere, making it suitable for sensitive electronic control circuits.

Operational temperature range from -40°C to +85°C allows it to function reliably in various industrial environments. The unit meets UL standards and is rated IP20 for protection against foreign solid objects, though it requires suitable protection against liquids.

The relay’s control voltage ranges from a minimum of 1.5 V DC to a maximum of 5 V DC, with a capacitance of 1.5 pF that helps minimize switching noise. Its compact dimensions (9.86 mm length, 6.4 mm width, and 3.2 mm height) and DIP-8 package make it ideal for embedded system designs.

Applications include high-speed communication equipment, computers, and industrial robots, where reliable and fast switching of low load currents is critical. Manufactured in Japan, this product ensures superior quality and durability.

This solid state relay features a MOSFET output type ensuring efficient switching. The device includes an IP20 rating, providing protection against solid objects larger than 12mm. Designed for high speed communication equipment, computers and industrial robots applications.

Operation temperature ranges from -40°C to +85°C for wide environmental adaptability. On state resistance is specified at 50 ohms, with low off state leakage current of 1 microamp. Package comes in DIP-8 configuration measuring 9.86mm length, 6.4mm width, and 3.2mm height.

Minimum control voltage required is 1.5 V DC, maximum is 5 V DC with output capacitance of 1.5 pF. Terminal type is PCB terminal for easy circuit board integration. Product is manufactured in Japan, ensuring premium quality.
