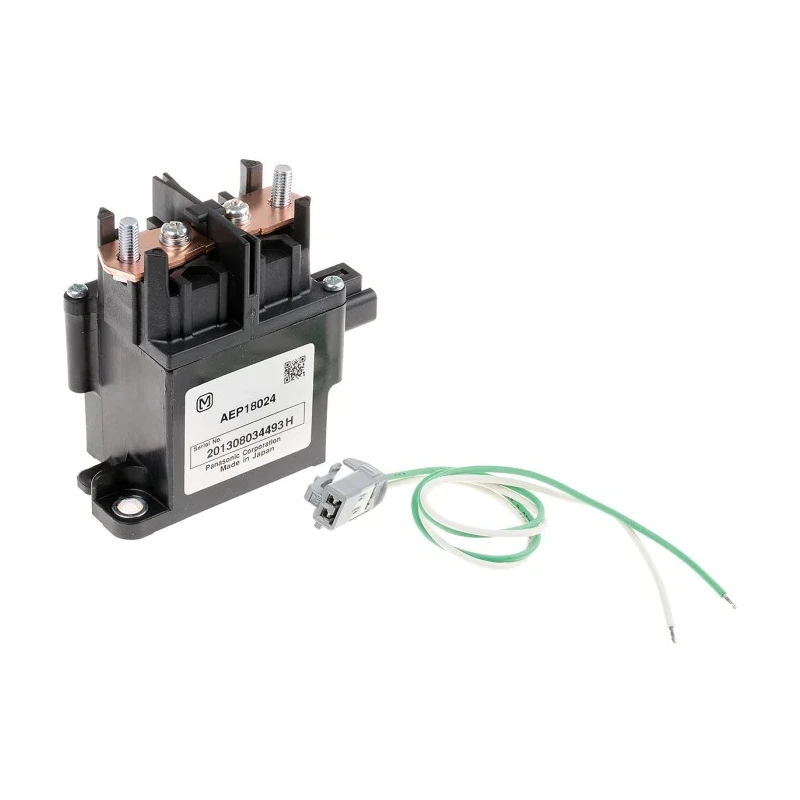

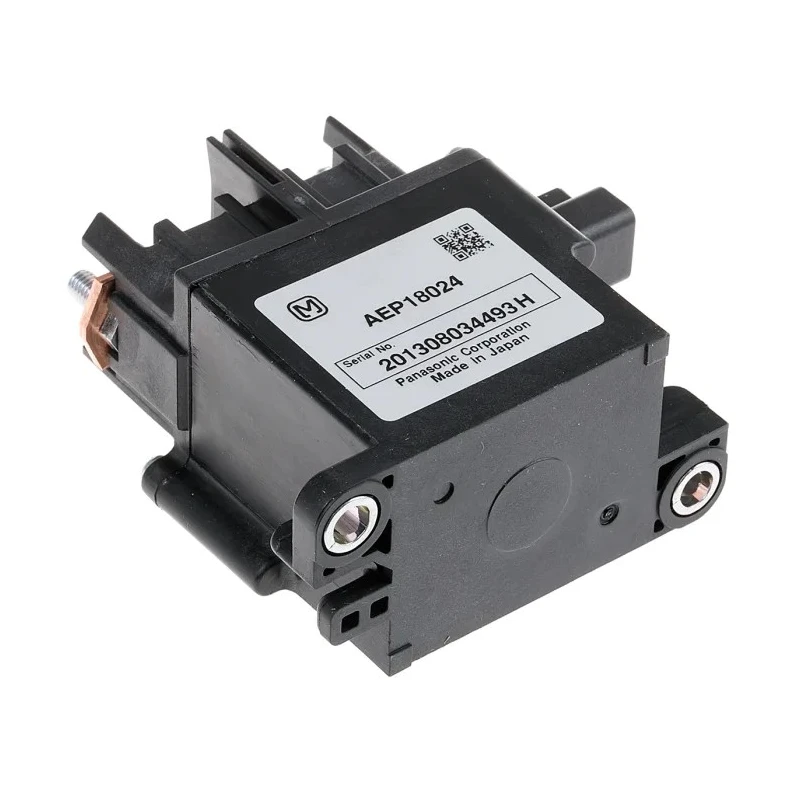

Panasonic Flange Power Relay 24V DC Coil 80A Switching Current SPST AEP18024
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 79mm |
| Length | 82.3mm |
| Model | AEP18024 |
| Width | 40mm |
| Mount Type | Flange |
| Series | AEP |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 80A |
| Terminal type | Screw |
| Standards/Approvals | RoHS, UL |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 7.3Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 400V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 5W |
Key Features
- The relay has a coil power consumption of 5W ensuring efficient operation.
- Coil resistance is stable at 7.3 ohms to maintain performance.
- Equipped with screw type terminals for secure electrical connections.
- Operates reliably within a temperature range of -40°C to 80°C.
- Supports switching AC and DC voltages up to 400V enhancing versatility.
- Compact dimensions with 82.3mm length, 40mm width, and 79mm height fitting flange mount installation.
- High contact reliability ensures durability for industrial applications.
- Manufactured in Japan adhering to RoHS compliance and UL certifications.
Product Description
Panasonic AEP18024 flange power relay is a non-latching power relay designed for industrial and commercial electrical control applications. Featuring a 24V DC coil and an 80A switching current capability, this SPST (Single Pole Single Throw) relay provides reliable power switching with low operating noise and high contact stability.
The relay’s coil power is rated at 5 watts with a coil resistance of 7.3 ohms, ensuring efficient actuation with minimal energy consumption. It includes screw terminals for secure and easy wiring during flange mount installation.
Engineered to operate over a wide ambient temperature range from -40°C to 80°C, the AEP18024 relay is suitable for demanding environments including cogeneration systems, battery testing, construction machinery, automatic guided vehicles, welding equipment, inverter control, solar power generation systems, and elevator controls.
Supporting up to 400V switching voltage for both AC and DC circuits, this relay offers a compact footprint measuring 82.3mm in length, 40mm in width, and 79mm in height. Panasonic’s strict quality standards ensure the relay is RoHS compliant and UL approved, assuring safety and environmental adherence.
Applications for this power relay span across industrial automation, electrical equipment, and renewable energy systems, where dependable high current switching is critical. The relay has a coil power consumption of 5W ensuring efficient operation.
Coil resistance is stable at 7.3 ohms to maintain performance. Equipped with screw type terminals for secure electrical connections. Operates reliably within a temperature range of -40°C to 80°C. Supports switching AC and DC voltages up to 400V enhancing versatility.
Compact dimensions with 82.3mm length, 40mm width, and 79mm height fitting flange mount installation. High contact reliability ensures durability for industrial applications. Manufactured in Japan adhering to RoHS compliance and UL certifications.
Discover more Panasonic Power Relays and related electrical components at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 80A, making it suitable for high current applications.
This model operates with a coil voltage of 24V DC.
The relay measures 82.3mm in length, 40mm in width, and 79mm in height.
It is equipped with screw type terminals for secure electrical connections.
The coil power consumption is rated at 5W, ensuring efficient operation.
This relay operates reliably within a temperature range of -40°C to 80°C.
It supports switching voltages of up to 400V for both AC and DC circuits.
This relay is manufactured in Japan and adheres to RoHS compliance and UL certifications.
The relay features a Single Pole Single Throw (SPST) contact configuration.
It complies with RoHS and UL standards, ensuring safety and environmental adherence.
This power relay is suitable for industrial automation, electrical equipment, and renewable energy systems.
The coil resistance is stable at 7.3 ohms, which helps maintain performance.
