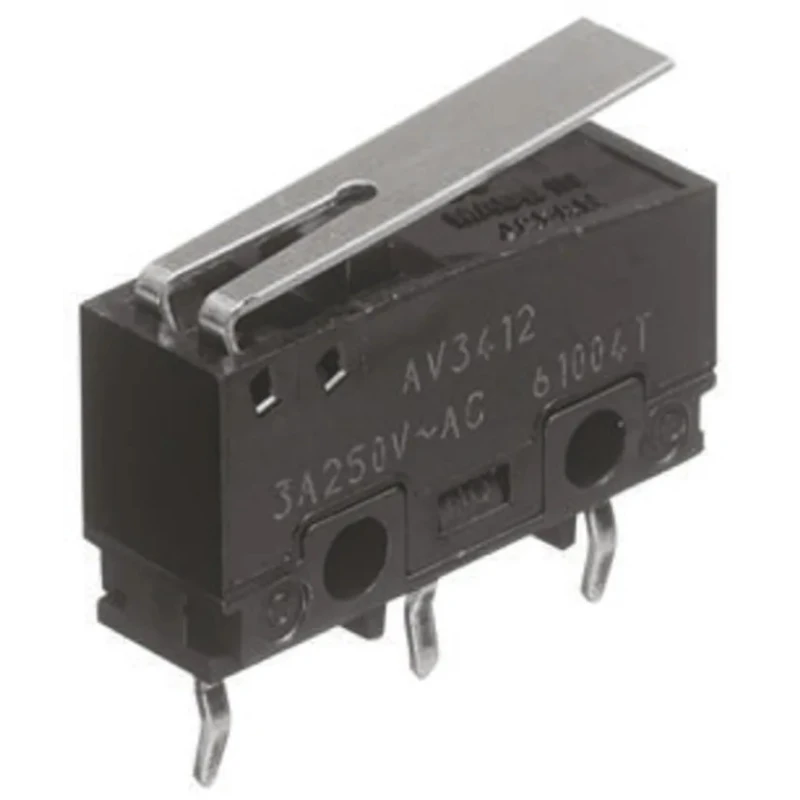

Panasonic Short Hinge Lever Micro Switch, Solder Terminal, 100mA, 30 V dc, SPCO AVL321561-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Model | AVL321561-A |
| Series | AVL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Short Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | UL, VDE, CSA, SEMKO, RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.59N |
| Mechanical Life | 10Operations |
| Microswitch Type | Subminiature |
Key Features
- Rated for 100mA contact current and 30 V dc contact voltage.
- Subminiature switch type with SPCO contact configuration.
- Operating force of 0.59N ensures sensitive actuation.
- Operates over temperature range from -25°C to 85°C reliably.
- Long mechanical life for 10 million operations and UL, VDE, CSA, SEMKO, RoHS certified.
- Constructed with flux-resistant integrally moulded terminals for durability.
- Typical applications include communication, vending, security, data, and medical equipment.
- Manufactured in Thailand with AVLC series design quality assurance.
Product Description
Panasonic AVL321561-A Short Hinge Lever Micro Switch is a high precision subminiature switch designed for low current, low voltage applications requiring sensitive and reliable actuation. Featuring a solder terminal and a Single Pole Change Over (SPCO) contact configuration, this switch supports a maximum contact current of 100mA and a contact voltage of 30 V dc.
The switch actuator is a short hinge lever, which offers an operating force of 0.59 Newtons, making it ideal for precise control in compact spaces. It is designed to operate reliably in temperatures ranging from -25°C to 85°C, ensuring performance stability in diverse environmental conditions.
Constructed with flux resistant integrally moulded terminals, the AVR series switches follow the AVLC series that comes with a long mechanical life rated at 10 million operations. The switch is approved under multiple standards including UL, VDE, CSA, SEMKO, and RoHS, confirming its safety and compliance for industrial and commercial use.
Common uses span across communication devices, vending machines, security systems, data systems, and medical equipment, where precise micro switching is critical. Terminals include common pitch options with right angle and left angle configurations suitable for PC board mounting, enhancing installation flexibility.
This micro switch is manufactured in Thailand, reflecting Panasonic's quality assurance and strict manufacturing standards. Rated contact current of 100mA and contact voltage of 30 V dc. Subminiature micro switch with short hinge lever actuator.
Operates over wide temperature range from -25°C to 85°C. Long mechanical life of 10 million operations ensures durability. Certified to UL, VDE, CSA, SEMKO, and RoHS standards. Ideal for communication, vending, security, data, and medical devices.
Flux resistant integrally moulded terminals enhance reliability. Manufactured in Thailand to Panasonic's quality specifications. Explore our full range of electronics components and Micro Switches at EnvMart for industrial, manufacturing, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this micro switch is 100mA.
The contact voltage rating of this model is 30 V dc.
This switch features a short hinge lever actuator type.
The operating temperature range for this micro switch is from -25°C to 85°C.
The mechanical life of this switch is rated at 10 million operations.
This micro switch is certified to UL, VDE, CSA, SEMKO, and RoHS standards.
The operating force required for actuation is 0.59 Newtons.
This model has solder type terminals that are flux resistant and integrally moulded.
Typical applications for this micro switch include communication devices, vending machines, security systems, data systems, and medical equipment.
This micro switch is manufactured in Thailand.
The contact configuration of this micro switch is Single Pole Change Over (SPCO).
This micro switch belongs to the AVL series.
