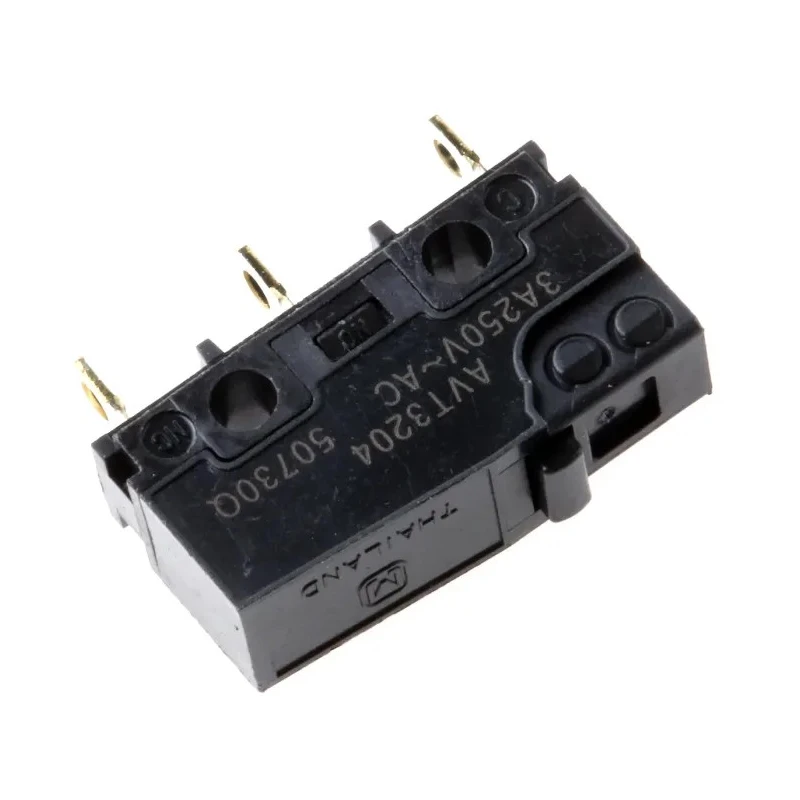

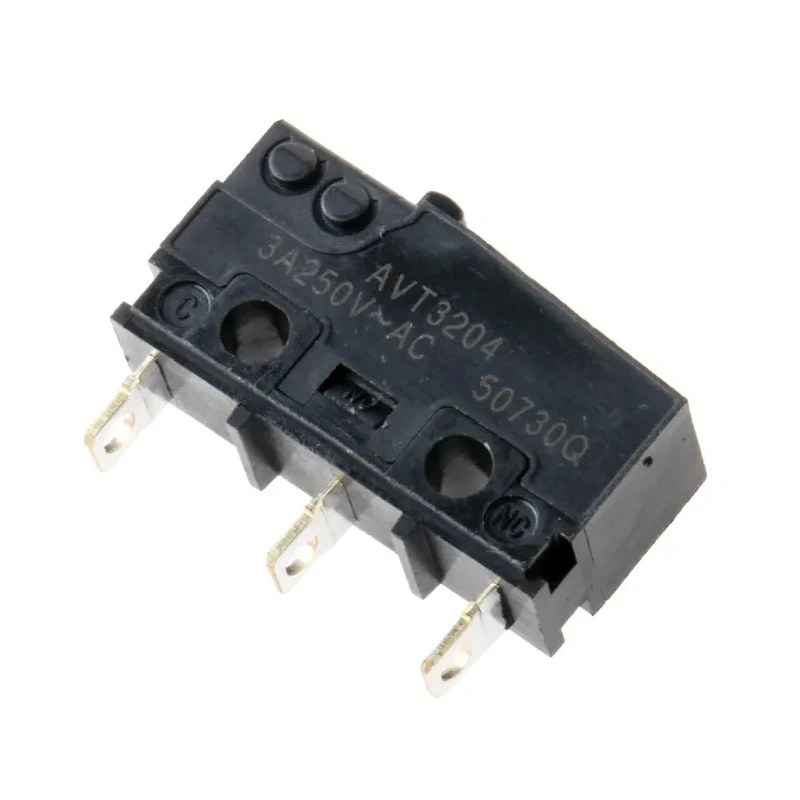

Panasonic Pin Plunger Micro Switch, Solder Terminal, 3A, 250 V AC, SPCO AVT3204-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Model | AVT3204-A |
| Series | AVT |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, CSA, UR |
| Switch Contact Current | 3A |
| Operating Force | 0.98N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- The actuator type is a pin plunger for accurate actuation.
- Designed with a solder terminal connection suitable for secure wiring.
- Supports a contact current rating of 3 amperes.
- Operates at an AC voltage of up to 250 volts.
- Features a single-pole changeover (SPCO) contact configuration.
- Has an operating force of 0.98 newtons for reliable operation.
- Operates reliably across a temperature range from -25°C to 85°C.
- Has a mechanical life expectancy of 500,000 operations.
Product Description
Panasonic AVT3204-A Pin Plunger Micro Switch is a subminiature, high-precision switch featuring a solder terminal and flux-resistant construction. It is designed for industrial, electrical automation, communication equipment, vending machines, security systems, data systems, and medical equipment applications. The pin plunger actuator provides precise and reliable mechanical actuation suitable for demanding conditions.
This microswitch supports a maximum contact current of 3A and an AC voltage of 250V AC, making it suitable for low power control circuits. The single-pole changeover (SPCO) contact configuration ensures stable electrical switching with an operating force of 0.98N, ensuring ease of actuation while maintaining mechanical durability with a rated life of 500,000 operations.
The device functions across a wide temperature range of -25°C to 85°C, allowing use in varied environmental conditions. It conforms to international standards including VDE, RoHS, CSA, and UR, guaranteeing compliance with safety, environmental, and performance criteria.
The AVT3204-A model is part of Panasonic's AVT series and is manufactured in Thailand with integrally moulded, flux-resistant terminals, ensuring durability and reliability in installation and operation. Typical uses include switches in communication devices, vending machines, and safety systems, among others.
The pin plunger actuator ensures precise mechanical control. Solder terminals provide secure and reliable electrical connections. Rated for a current capacity of 3 amperes at 250 volts AC. Single-pole changeover contact arrangement for versatile switching.
Robust construction with a mechanical lifespan of 500,000 operations. Wide operating temperature range from -25 to 85 degrees Celsius. Compliant with recognized safety and quality certifications: VDE, RoHS, CSA, UR. Subminiature form factor suitable for compact equipment integration.
Manufactured in Thailand with high quality standards. Designed for use in industrial automation, HVAC, medical, and communication systems. Explore our extensive range of microswitches and electrical components at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch supports a maximum contact current rating of 3 amperes.
It operates at an AC voltage of up to 250 volts.
This model features a pin plunger actuator for accurate actuation.
It operates reliably across a temperature range from -25°C to 85°C.
The micro switch has a mechanical life expectancy of 500,000 operations.
It features a single-pole changeover (SPCO) contact configuration.
It is designed with solder terminals for secure wiring connections.
It conforms to international standards including VDE, RoHS, CSA, and UR.
The operating force for this model is 0.98 newtons.
This micro switch is manufactured in Thailand.
It is suitable for applications in industrial automation, communication equipment, vending machines, and security systems.
It is classified as a subminiature microswitch.
