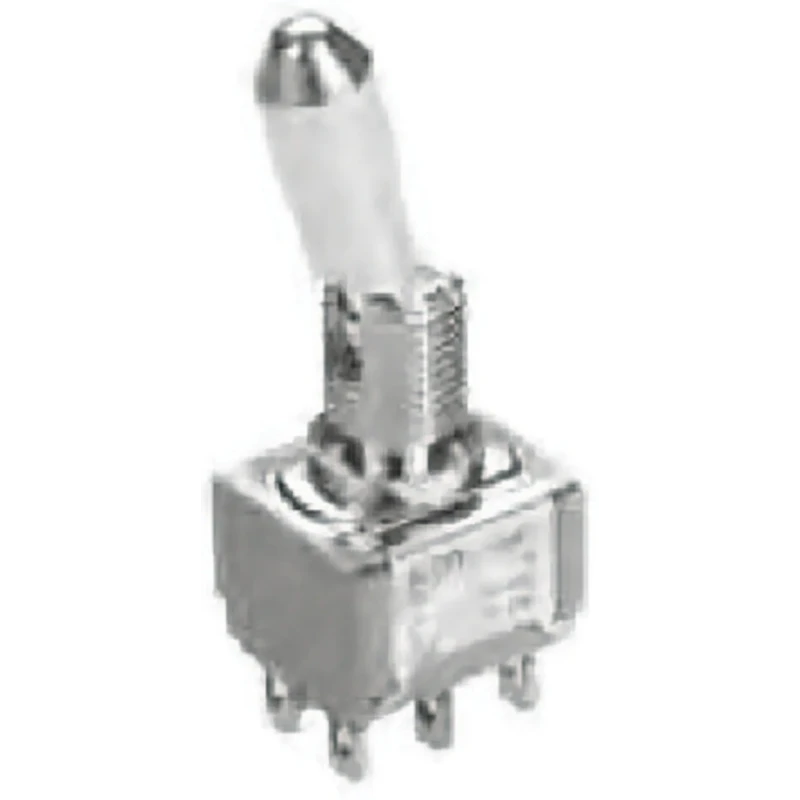

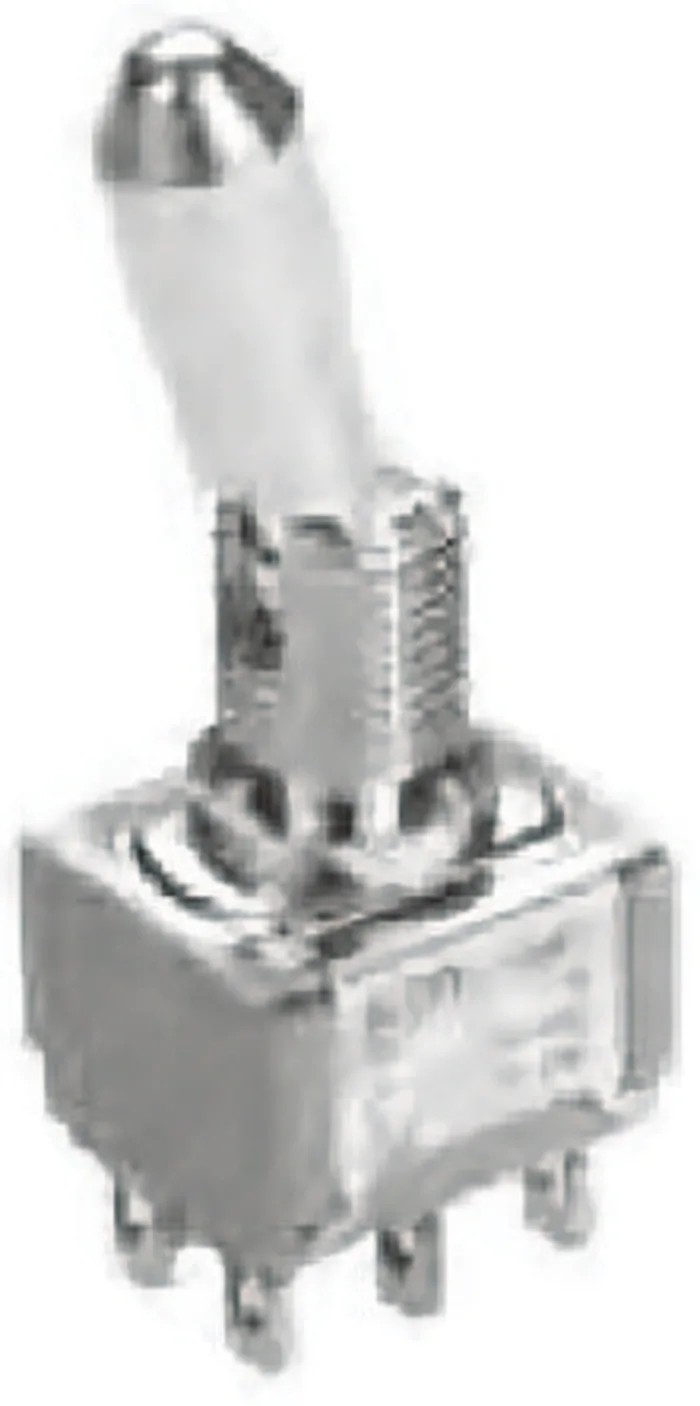

TE Connectivity Panel Mount Toggle Switch DPDT On-On 5A 28 V dc 125 V ac Gemini A Series 1825138-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 0.25 in |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 14.71mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- This toggle switch features a double-pole double-throw switch configuration ensuring versatile circuit control.
- Panel mount design with epoxy sealed terminals provides durability and easy installation.
- Stainless steel frame with brass tin-plated solder terminals ensures reliable conductivity and corrosion resistance.
- The actuator is made of phenolic material with a length of 14.71 mm for easy operation.
- Rated for operating temperatures from -30°C to 85°C, suitable for a wide range of industrial applications.
- Compact dimensions with a height of 0.35 in, length of 0.5 in, and width of 0.45 in save panel space.
- Fully RoHS compliant, Gemini A Series, built for industrial and electrical automation use.
- Suitable for electrical panels, industrial machinery, and automation control systems.
Product Description
TE Connectivity 1825138-3 is a robust panel mount toggle switch designed with a DPDT On-On switch operation and rated for 5A contact current at 28 V dc and 125 V ac. This Gemini A Series switch features epoxy sealed terminals for enhanced reliability and longevity in harsh operating environments.
The switch's stainless steel frame and brass tin-plated solder terminals provide excellent corrosion resistance and electrical conductivity, ensuring dependable performance in industrial and automation applications. The phenolic actuator with 14.71 mm length allows smooth toggling action.
With compact physical dimensions of 0.35 inches in height, 0.5 inches in length, and 0.45 inches in width, the switch fits efficiently into control panels. It maintains operating integrity across a temperature range from -30°C to 85°C, suitable for demanding electrical circuitry and machinery control tasks.
The device is RoHS compliant, adhering to environmental standards, and is part of the Gemini A Series, known for quality and durability. Its panel cutout size is 0.25 inches, enabling straightforward mounting and replacement in existing panel configurations.
This toggle switch is ideal for use in industrial automation systems, electrical panels, and control equipment that require reliable double-pole switching functionality. Its solder terminal type facilitates secure connections for PCB or wiring harness integration.
This toggle switch features a double-pole double-throw switch configuration ensuring versatile circuit control. Panel mount design with epoxy sealed terminals provides durability and easy installation. Stainless steel frame with brass tin-plated solder terminals ensures reliable conductivity and corrosion resistance.
The actuator is made of phenolic material with a length of 14.71 mm for easy operation. Rated for operating temperatures from -30°C to 85°C, suitable for a wide range of industrial applications. Compact dimensions with a height of 0.35 in, length of 0.5 in, and width of 0.45 in save panel space.
Fully RoHS compliant, Gemini A Series, built for industrial and electrical automation use. Suitable for electrical panels, industrial machinery, and automation control systems. Explore more from TE Connectivity Toggle Switches and related industrial electrical components in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double-pole double-throw (DPDT) contact configuration, allowing for versatile circuit control.
It has compact dimensions with a height of 0.35 inches, length of 0.5 inches, and width of 0.45 inches.
The switch is rated for a contact current of 5A at 28V DC and 125V AC.
It operates effectively within a temperature range of -30°C to 85°C.
This unit features solder terminals, which facilitate secure connections for PCB or wiring harness integration.
The required panel cutout size for this toggle switch is 0.25 inches.
The actuator is made of phenolic material, which contributes to its operational functionality.
Yes, it is fully RoHS compliant, adhering to environmental standards.
This switch is part of the Gemini A Series, known for its quality and durability in industrial applications.
It is suitable for use in electrical panels, industrial machinery, and automation control systems.
The switch features a panel mount design with epoxy sealed terminals, which enhances its reliability and longevity in harsh environments.
The switch operates with an On-On configuration, allowing for two distinct circuit states.
