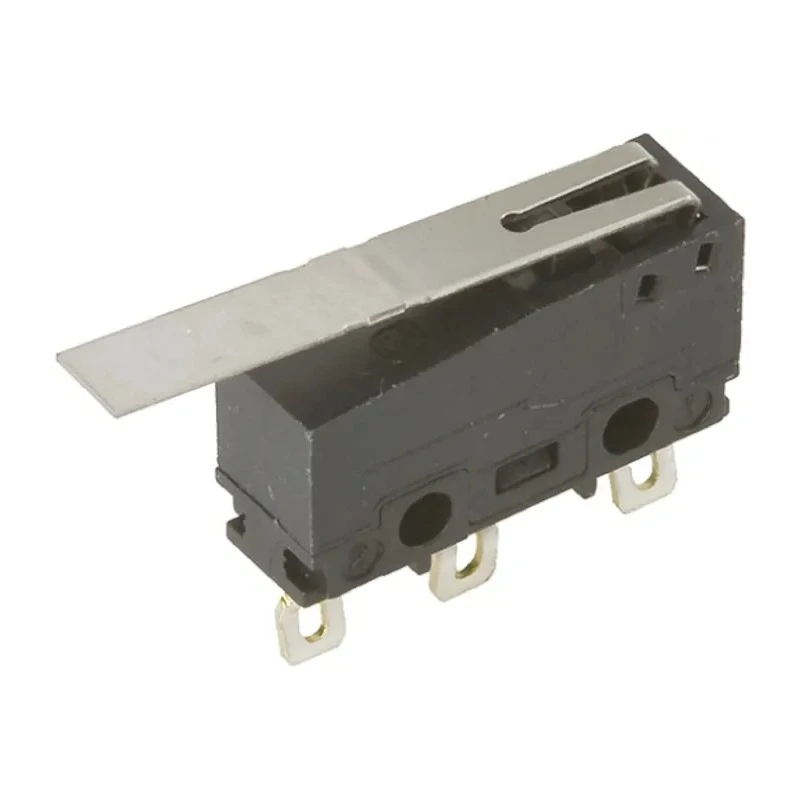

Panasonic Subminiature Long Hinge Lever Micro Switch, Solder Terminal, 100mA, 250 V AC, 30 V DC, SPCO AVT3232613-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Model | AVT3232613-A |
| Series | AVT |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Long Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | VDE, UR, RoHS, CSA |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.12N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- Features a long hinge lever actuator for sensitive operation.
- Solder terminal type enables secure electrical connections.
- Supports contact current of 100mA for DC and AC loads.
- Rated for 250 V AC and 30 V DC maximum contact voltages.
- Contact configuration is Single Pole Change Over (SPCO) for versatile switching.
- Operating force is low at 0.12 Newtons for minimal actuation energy.
- Temperature range from -25°C to 85°C allows broad environmental usage.
- Durability up to 500,000 mechanical operations assures long lifespan.
Product Description
Panasonic AVT3232613-A subminiature micro switch with a long hinge lever actuator and solder terminals offers durable, high precision switching performance. Designed for electrical and automation applications, this switch supports 100mA contact current with 250V AC and 30V DC voltage ratings, ensuring reliable switching in low power circuits.
The switch features a Single Pole Change Over (SPCO) contact configuration, suitable for various circuit control scenarios. Its low operating force of 0.12N allows sensitive actuation while guaranteeing long mechanical life of up to 500,000 operations, making it ideal for equipment requiring frequent switching cycles.
Built to operate reliably across temperatures from -25°C to 85°C, the switch is suitable for industrial, electronic, laboratory, and communication equipment environments. Its flux-resistant construction and integrally moulded terminals provide enhanced durability and consistent performance.
Compliance with key standards such as VDE, UR, RoHS, and CSA underscores its safety and quality, making it a dependable choice for applications in medical devices, vending machines, security systems, and data communication equipment.
This Panasonic AVT series switch is manufactured in Thailand, embodying high-standard production for precision industrial use. Long hinge lever actuator for sensitive mechanical response. Solder terminal type allows robust electrical connection.
100mA switching current capacity for AC/DC circuits. Rated for 250V AC and 30V DC voltage capabilities. SPCO contact configuration supports versatile switching applications. Low operating force of 0.12N reduces actuation effort.
Wide operating temperature range from -25°C to 85°C. Extensive mechanical life of 500,000 operations ensures durability. Flux resistant build with integrally moulded terminals enhances reliability. Complies with VDE, UR, RoHS, and CSA international standards.
Explore more Panasonic Micro Switches and precision components for your electronic and industrial automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact voltage for this model is 250 V AC and 30 V DC.
It supports a contact current of 100 mA for both DC and AC loads.
The operating force for this micro switch is low at 0.12 Newtons, allowing for minimal actuation energy.
This unit can operate within a temperature range of -25°C to 85°C.
It features solder terminals, which enable secure electrical connections.
This model has a mechanical life rated for up to 500,000 operations.
The contact configuration is Single Pole Change Over (SPCO), allowing for versatile switching applications.
It complies with several standards including VDE, UR, RoHS, and CSA.
This model is manufactured in Thailand.
It features a long hinge lever actuator for sensitive operation.
This switch is suitable for use in medical devices, vending machines, security systems, and data communication equipment.
The model number is AVT3232613-A.
