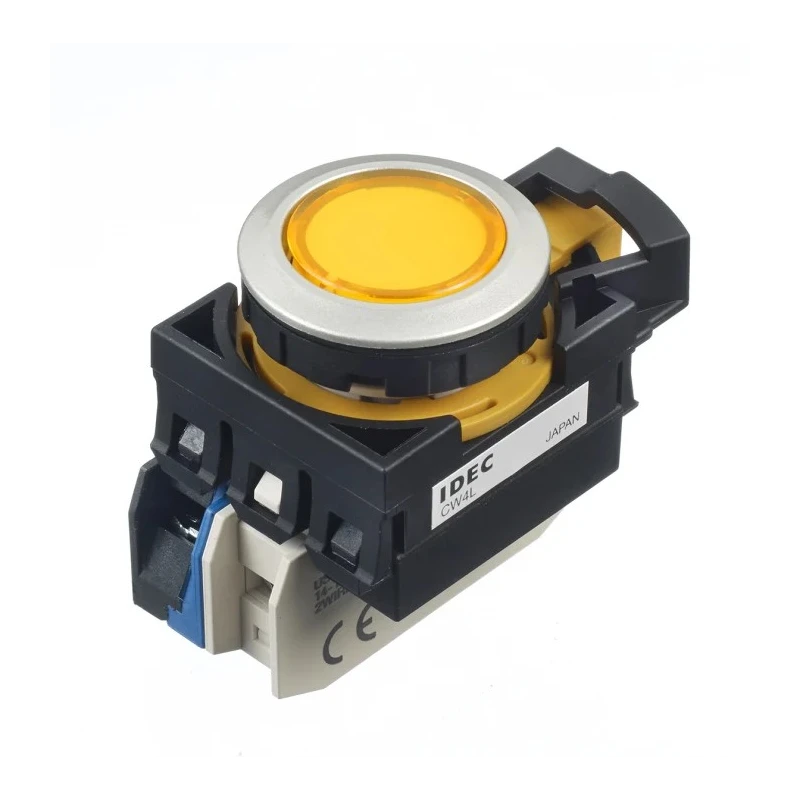

Idec CW Series Illuminated Push Button Switch Yellow LED Momentary Panel Mount 22 mm Cutout SPST IP65 24V CW4L-M1E10Q4Y

Name: Idec CW Series Illuminated Push Button Switch Yellow LED Momentary Panel Mount 22 mm Cutout SPST IP65 24V CW4L-M1E10Q4Y
Brand: Idec
SKU: 302287
Price: 29.88 USD
Availability: InStock



Category Push Button Switches Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Model	CW4L-M1E10Q4Y
IP Rating	IP65
Mount Type	Panel
Series	CW
Maximum Operating Temperature	55°C
Contact Configuration	SPST
Minimum Operating Temperature	-25°C
Panel Cutout Size	22 mm
Terminal type	Screw
LED Colour	Yellow
Switch Operation	Momentary
Actuator Colour	Yellow
Contact DC Voltage	24V
Switch Contact Current	10A
Legend	Marking Film can be Inserted

Key Features

The switch operates at 24 V DC and AC voltages with a 10 A contact current rating.
The mounting is panel type with screw terminal connections.
The actuator is yellow, with a legend where marking film can be inserted for custom labelling.
The product complies with multiple standards including CSA C22.2 No.14, GB14048.5, EN60947-5-1, and UL508 for safety and performance.
It features a flush silhouette design with 34.5 mm depth behind the panel to prevent accidental operations.
The switch is designed to operate in temperatures ranging from -25°C to 55°C.
The product originates from Japan, reflecting high manufacturing quality.

Product Description

Idec CW4L-M1E10Q4Y Illuminated Push Button Switch is a reliable momentary push button designed for panel mounting applications requiring a 22 mm cutout and featuring a yellow LED indicator. This switch belongs to the CW series, recognized for its sleek and flush silhouette design, which reduces dust accumulation and accidental activation.

With an ingress protection rating of IP65, the push button switch is resistant to dust and water ingress, making it suitable for industrial, automation, and control panel environments. It supports a single-pole single-throw (SPST) contact configuration and can handle a contact current of up to 10 A. The terminals are screw type, offering secure and easy wiring.

The switch operates at a contact voltage of 24 V DC and AC, making it compatible with various electrical systems. The yellow actuator and LED indicator provide high visibility and clear status indication. Its design includes a marking film slot allowing for custom legends suited to operator requirements.

The CW4L-M1E10Q4Y meets stringent international standards including CSA C22.2 No.14, GB14048.5, EN60947-5-1, UL508, and conforms to the EU Low Voltage Directive, ensuring safety, quality, and compliance for industrial applications.

This push button switch is ideal for use in electrical, industrial automation, manufacturing, and HVAC control panels, providing durable performance in ambient temperatures ranging from -25°C to 55°C. Its flush profile with a shallow behind-panel depth of 34.5 mm improves panel aesthetics and ergonomics.

The switch operates at 24 V DC/AC with a 10 A contact current rating. The yellow illuminated momentary actuator ensures clear visual feedback. IP65 rating protects against dust and splashing water. Screw terminal connection provides secure installation.

Meets multiple international safety and quality standards. Flush silhouette design reduces accidental operation risk and dirt accumulation. Marking film slot enables customization of switch labeling.

Manufactured in Japan, this Idec CW Series push button switch is a dependable choice for modern industrial control panel applications. Browse similar high-quality Push Button Switches and components on EnvMart to find suitable accessories and compatible products.
