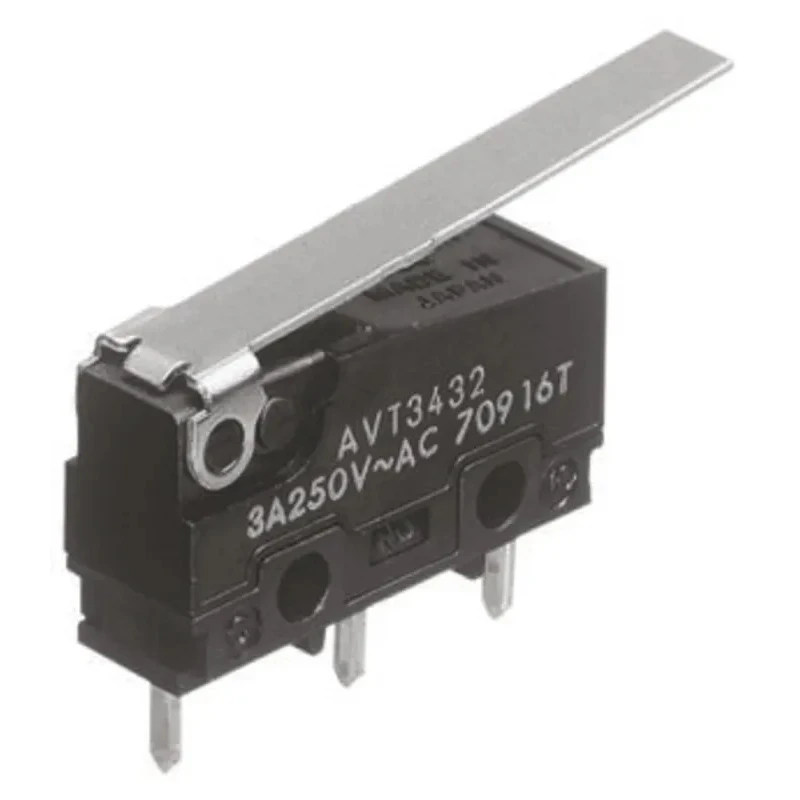

Panasonic Long Hinge Lever Micro Switch PCB Terminal 3A 250V AC SPCO AVT3434-A

Panasonic AVT3434-A Long Hinge Lever Micro Switch with PCB Terminal is a high-precision subminiature switch designed for industrial and commercial use. Rated for a switch contact current of 3A and a contact AC voltage of 250V, this switch utilizes a long hinge lever actuator providing precise and reliable mechanical actuation. The PCB terminal terminals offer integrity in electrical connections, suitable for integration into printed circuit boards.

This switch is built with a flux-resistant construction, enhancing its operational reliability in challenging environments. The low operating force of 0.25N ensures sensitivity and ease of actuation, making it ideal for applications where precise control is needed.

Engineered to operate effectively in a wide temperature range from -25°C to 85°C, it supports long-term use in diverse environmental conditions. The Panasonic AVT series ensures durability with a mechanical life rated at 500,000 operations, suitable for high-reliability applications.

The AVT3434-A complies with global safety and environmental certifications including CSA, UR, VDE, and RoHS, ensuring safe and environmentally responsible usage. Typical industries using this micro switch include communication equipment, vending machines, security systems, data systems, and medical equipment.

The micro switch features integrally molded terminals with options for cross line, right angle, and left angle terminals optimized for PC board mounting. Its subminiature size allows for installation in compact spaces without compromising performance.

Features a long hinge lever actuator for reliable mechanical operation. Equipped with PCB terminals for secure electrical connections. Switch contact current rating of 3A with SPCO configuration for versatility. Operates with a low force of 0.25N enhancing sensitivity and control.

Designed for temperature operation between -25°C and 85°C ensuring durability. Subminiature microswitch type suitable for compact spaces. Mechanical life rated for 500,000 operations providing long-term reliability. Conforms to CSA, UR, VDE, and RoHS standards for safety and environmental compliance.

Manufactured in Thailand ensuring quality assurance. Applicable for communication equipment, vending machines, security systems, data systems, and medical devices. Explore more Panasonic Micro Switches and related electrical components at EnvMart for high-quality industrial and automation solutions.
