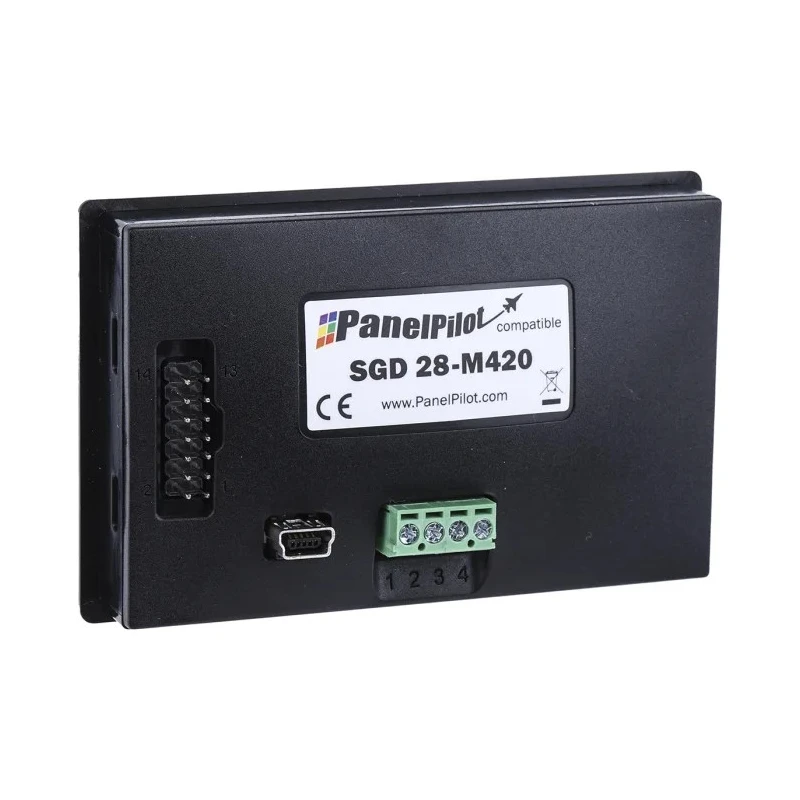

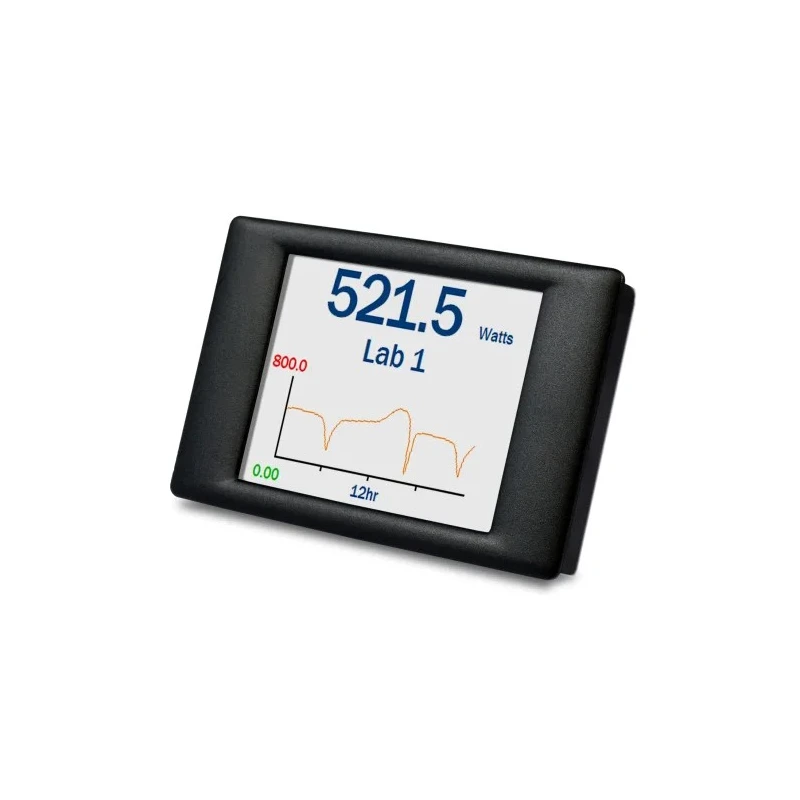

Lascar PanelPilot TFT Digital Panel Multifunction Meter for Current 2.8 inch Colour Touchscreen Display SGD 28-M420
Specifications
| Country of Origin | China |
|---|---|
| Display Type | TFT |
| Display | 2.8"" colour TFT screen |
| Brand | Lascar |
| Model | SGD 28-M420 |
| Depth | 17.8mm |
| Series | PanelPilot |
| Maximum Operating Temperature | 40°C |
| Meter Type | Digital |
| Minimum Operating Temperature | 0°C |
| Properties Measured | Current |
| Cutout Height | 54.5mm |
| Cutout Width | 87mm |
| Maximum Measurement | 240 V |
Key Features
- Equipped with dual 4-20mA analogue inputs for versatile measurement options.
- Customizable display using PanelPilot software supporting various graph and gauge configurations.
- Alarm outputs enhance monitoring and safety during operations.
- Simple panel mounting ensures easy installation in industrial equipment.
- Compatible with Windows 7, 8.1, and 10 for intuitive device setup and customization.
- Measures current loops up to a maximum of 240 V for broad application.
- Operates reliably within 0°C to 40°C operating temperature range.
- Compact size with 54.5 mm x 87 mm cutout dimensions and 17.8 mm depth.
Product Description
Lascar SGD 28-M420 is a advanced digital panel multifunction meter from the PanelPilot series designed specifically for current measurement applications. It features a 2.8 inch colour TFT touchscreen display that provides clear and intuitive visualization of current loop signals with high accuracy.
The device supports dual 4-20mA analogue inputs, but can also measure 10-50mA or 0-50mA current loops, making it flexible to a wide variety of industrial and marine applications. Alarm outputs included in the design allow for reliable status notifications.
Setup and customization of the meter display, such as bar-graphs, tank level, analogue styles, and trend graphs, are made simple through the PanelPilot software available for Windows 7, 8.1, and 10. Users can tailor colors, text labels, units, and input scaling to meet their requirements and upload the configurations via USB connection.
The meter has compact panel cutout dimensions of 54.5 mm height by 87 mm width, with a panel mounting depth of 17.8 mm. It operates efficiently within a temperature range from 0°C to 40°C, suitable for many industrial environments.
Its maximum measurable voltage is 240 V, allowing it to monitor a broad range of current loop applications accurately. This makes it ideal for industrial automation, test and measurement laboratories, and marine industry control systems.
Equipped with a 2.8-inch colour TFT touchscreen for clear data visualization. Dual analogue inputs measuring 4-20mA with expanded current range options. Free PanelPilot software facilitates easy display customization and configuration.
Alarm outputs provide enhanced operational safety. Robust panel mounting design for quick installation in control equipment. Operating temperature range suited to many industrial environments. Compact dimensions enable integration even where space is limited.
The Lascar SGD 28-M420 ensures precise current monitoring and flexible setup for complex industrial and marine applications. For a powerful and user-customizable digital panel meter, this model offers a trusted solution from a reputable brand.
Explore more Digital Panel Multifunction Meters at EnvMart to find the ideal fit for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum measurable voltage for this model is 240 V, allowing it to monitor a broad range of current loop applications accurately.
This unit requires a cutout of 54.5 mm in height and 87 mm in width for panel mounting.
It operates efficiently within a temperature range of 0°C to 40°C, making it suitable for many industrial environments.
It features a 2.8 inch colour TFT touchscreen display for clear and intuitive visualization of current loop signals.
This model supports dual 4-20mA analogue inputs and can also measure 10-50mA or 0-50mA current loops, providing flexibility for various applications.
The meter can be customized using the free PanelPilot software, which is compatible with Windows 7, 8.1, and 10.
Yes, it is equipped with alarm outputs that enhance monitoring and safety during operations.
The depth of this model is 17.8 mm, allowing for compact installation in control equipment.
Yes, it is designed for versatile applications, including industrial automation and marine industry control systems.
This unit is specifically designed to measure current, making it suitable for various current monitoring applications.
The country of origin for this model is China.
This model belongs to the PanelPilot series, which is known for its advanced digital panel meters.
