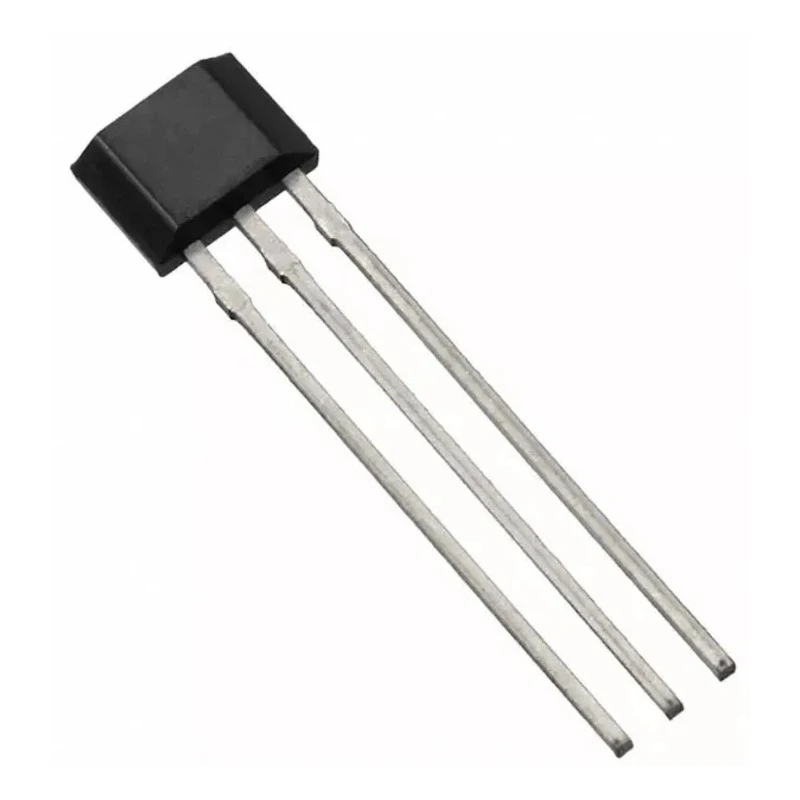

DiodesZetex Surface Mount Hall Effect Sensor, 3-Pin SIP Package, 3 V to 28 V, Unipolar, Chopper Stabilised AH3367Q-P-B
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Response time | 3.75μs |
| Height | 1.6mm |
| Length | 4.3mm |
| Model | AH3367Q-P-B |
| Technology | Chopper Stabilised |
| Sensor Type | Hall Effect Sensors |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | AH3367Q |
| Maximum Operating Temperature | 150°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | Pb-Free, RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 28V |
| Minimum Supply Voltage | 3V |
| Supply Current | 3.5mA |
| Magnetic Type | Unipolar |
| Maximum Frequency Response | 800kHz |
Key Features
- Utilizes unipolar chopper stabilised technology for accurate magnetic sensing.
- Supports a maximum frequency response of 800 kHz for fast signal output.
- Operating temperature range from -40°C to 150°C ensuring reliability in harsh environments.
- Compact dimensions with 4.3mm length, 3.2mm width, and 1.6mm height.
- Low supply current consumption at 3.5mA to optimize power efficiency.
- Automotive-grade sensor compliant with AEC-Q100 standards.
- Fast response time of 3.75 microseconds suitable for dynamic applications.
- Lead-free and RoHS compliant manufacturing ensuring environmental safety.
Product Description
DiodesZetex AH3367Q-P-B is a surface mount Hall Effect sensor designed for precise magnetic field sensing applications. It incorporates chopper stabilised technology with a unipolar magnetic response, making it well-suited for position and proximity detection in a wide range of industrial and automotive applications.
Operating reliably over a temperature range of -40°C to 150°C, this 3-pin SIP package device supports supply voltages from 3 V to 28 V with a low supply current of 3.5mA. The sensor delivers a rapid response time of 3.75 microseconds and can handle frequency responses up to 800 kHz, making it ideal for high-speed switching and sensing tasks.
The compact physical dimensions of the device - 4.3 mm in length, 3.2 mm in width, and 1.6 mm in height - allow efficient PCB space utilization. Additionally, this sensor meets automotive standard AEC-Q100, ensuring dependable performance under demanding automotive conditions. The product is Pb-Free and fully RoHS compliant.
Applications include position sensing, proximity detection, and non-contact switching in industrial machinery, automotive systems, and other electronic equipment. Its surface mount SIP form factor supports streamlined automated PCB assembly.
Unipolar Hall Effect sensor with chopper stabilised technology for enhanced signal stability. Wide supply voltage range from 3 V to 28 V for versatile deployment. Low power consumption with a 3.5mA supply current. High frequency response up to 800 kHz for dynamic magnetic sensing.
Automotive grade sensor meeting AEC-Q100 standards for quality assurance. Operating temperature range from -40°C to 150°C for harsh environment suitability. Compact SIP 3-pin package suitable for surface mounting. Fast response time of 3.75µs for quick switching applications.
RoHS and Pb-free compliant manufacturing ensuring environmental safety. Ideal for industrial, automotive, and electronic sensing applications. Explore more Hall Effect sensor options and related electronic components within EnvMart for your design and manufacturing needs.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably over a temperature range from -40°C to 150°C.
The maximum supply voltage for the AH3367Q-P-B is 28V.
It has a fast response time of 3.75 microseconds, suitable for quick switching applications.
This sensor supports a maximum frequency response of 800 kHz.
The sensor has compact dimensions of 4.3 mm in length, 3.2 mm in width, and 1.6 mm in height.
It utilizes chopper stabilised technology for enhanced signal stability in magnetic sensing applications.
The supply current consumption is 3.5 mA, optimizing power efficiency.
Yes, it meets the AEC-Q100 automotive standard, ensuring quality assurance for automotive applications.
The sensor features a unipolar magnetic response, making it suitable for various applications.
It comes in a 3-pin SIP package, designed for surface mounting.
The AH3367Q-P-B is Pb-Free and RoHS compliant, ensuring environmental safety.
This sensor is suitable for position sensing, proximity detection, and non-contact switching in industrial and automotive systems.
