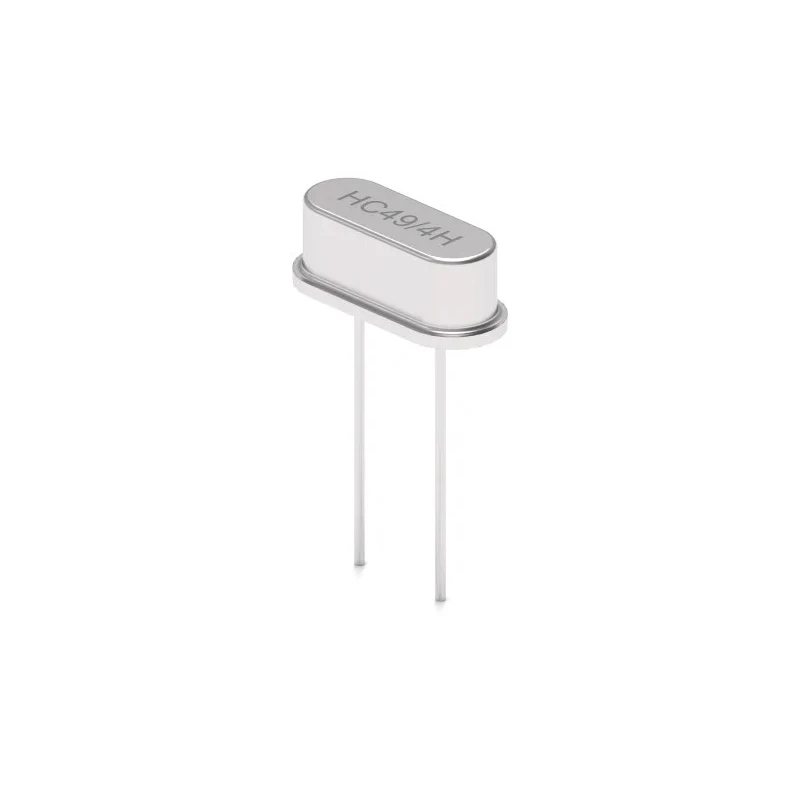

IQD 3.5795 MHz Crystal Unit ±30 ppm HC-49 2-Pin Through Hole LFXTAL003063B

Free Delivery in India | Lowest Global Shipping Charges

IQD 3.5795 MHz Crystal Unit ±30 ppm HC-49 2-Pin Through Hole LFXTAL003063B



Category Crystal Unit Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	4.1mm
Length	11.05mm
Model	LFXTAL003063B
Width	4.7mm
Mount Type	Through Hole
Maximum Operating Temperature	70°C
Package Type	HC-49
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	3.5795MHz
Load Capacitance	20pF
Series Resistance	300Ω

Key Features

The crystal unit operates at a standard frequency of 3.5795 MHz.
Constructed with a hermetically sealed HC-49 package ensuring durability.
Features 2-pin configuration for easy PCB integration.
Load capacitance is rated at 20 pF for precise oscillation.
Operating temperature range from -20°C to 70°C extends applicability.
Series resistance is specified at 300 Ω.
Compliant with RoHS environmental standards.
Suitable for electronics, power, and connector applications requiring stable frequency sources.

Product Description

The IQD LFXTAL003063B crystal unit is a precision electronic component designed to operate at a frequency of 3.5795 MHz with a frequency tolerance of ±30 ppm. Housed in an industry-standard HC-49 metal can package, this 2-pin crystal unit is hermetically sealed in an inert atmosphere, providing resistance to environmental factors and ensuring long-term reliability in demanding applications.

This through-hole mount crystal unit features a load capacitance of 20 pF and series resistance of 300 Ω, optimized for stable oscillation in electronic circuits. Its compact dimensions of 11.05 mm length, 4.7 mm width, and 4.1 mm height make it suitable for integration into various PCB designs.

The unit sustains performance across a temperature range from -20°C to 70°C with frequency stability maintained within ±50 ppm, making it applicable for industrial, laboratory, and commercial electronics uses such as signal generation, timing circuits, and communications equipment.

RoHS compliance affirms the component's adherence to environmental safety standards. The hermetically sealed, resistance welded construction eliminates moisture ingress, enhancing durability for long-term operation.

Standard frequency of 3.5795 MHz for precise timing. HC-49 through-hole mounting package ensures compatibility. ±30 ppm frequency tolerance safeguards signal accuracy. Hermetically sealed metal can extends reliability. Operational temperature embracing -20°C to 70°C.

Series resistance rated at 300 Ω. Two pins simplify PCB connection. Load capacitance of 20 pF balances circuit demands. RoHS certified environmentally safe component. Ideal for use in electronics, communication, and control systems.

This IQD Crystal Unit LFXTAL003063B is an essential component for engineers and designers seeking a dependable, precise, and environmentally compliant frequency source. Explore more components in the Electronics Components category at EnvMart for related products and technical support.
