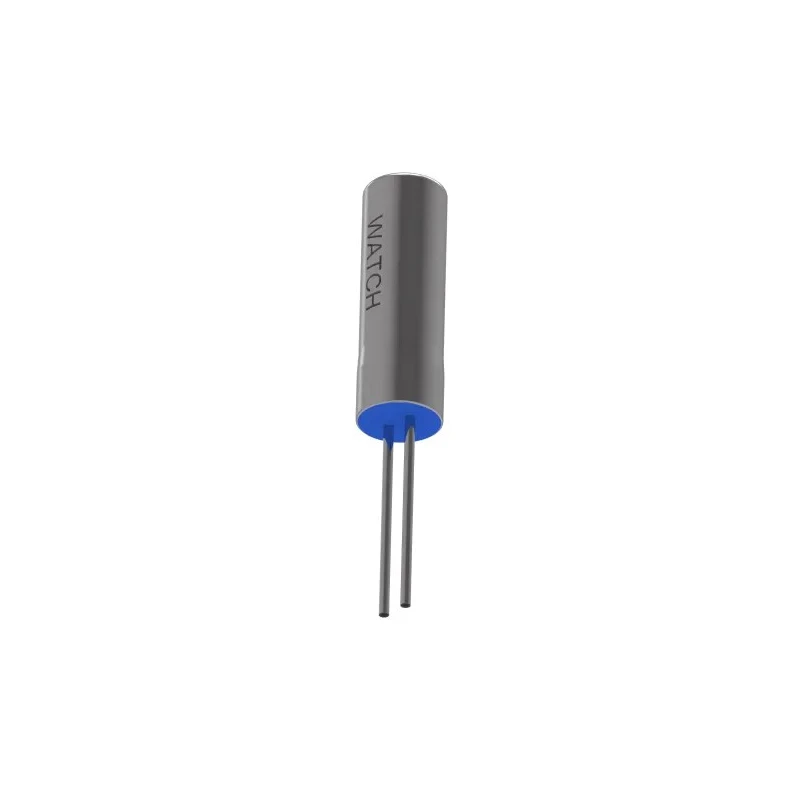

IQD 32.768 MHz Crystal Unit ±20 ppm Cylindrical 2-Pin 6.2 mm x 17.2 mm x 3 mm LFXTAL002997B

The IQD LFXTAL002997B is a 32.768 MHz crystal unit designed for accurate and stable frequency generation in various electronic devices. This component is crafted to support precise timekeeping functions in watches, clocks, and embedded low-power systems, benefiting from a frequency tolerance of ±20 ppm at room temperature (25°C).

Its cylindrical package with two pins is configured for through-hole mounting, measuring 6.2 mm in height, 17.2 mm in length, and 3 mm in width, making it compatible with standard PCB layouts. The device features a load capacitance of 12.5 pF and a maximum series resistance of 50 kΩ, contributing to reliable oscillation performance.

Operating temperature ranges from -40°C to 85°C, making it suitable for a variety of environments and industrial applications. The material composition adheres to RoHS compliance standards, ensuring minimal environmental impact.

This crystal unit is part of the WATCH-2X6 series by IQD, known for accuracy and longevity with an aging rate of ±5 ppm per year at 25°C. It is supplied in bulk packaging, ideal for production and manufacturing needs.

Applications include industrial, laboratory instruments, embedded system timing, instrumentation, communication equipment, and consumer electronics where precise frequency control is critical.

Designed for precise timekeeping and frequency control applications. Offers a frequency tolerance of ±20 parts per million at 25°C. Features a through-hole mount type with a two-pin configuration. Load capacitance of 12.5 pF and a maximum series resistance of 50 kΩ.

Operates reliably within a temperature range from -40°C to 85°C. Constructed with RoHS compliant materials, ensuring environmental safety. Ideal for use in watches, clocks, and low-power embedded systems. Cylindrical package type provides robust mechanical stability.
