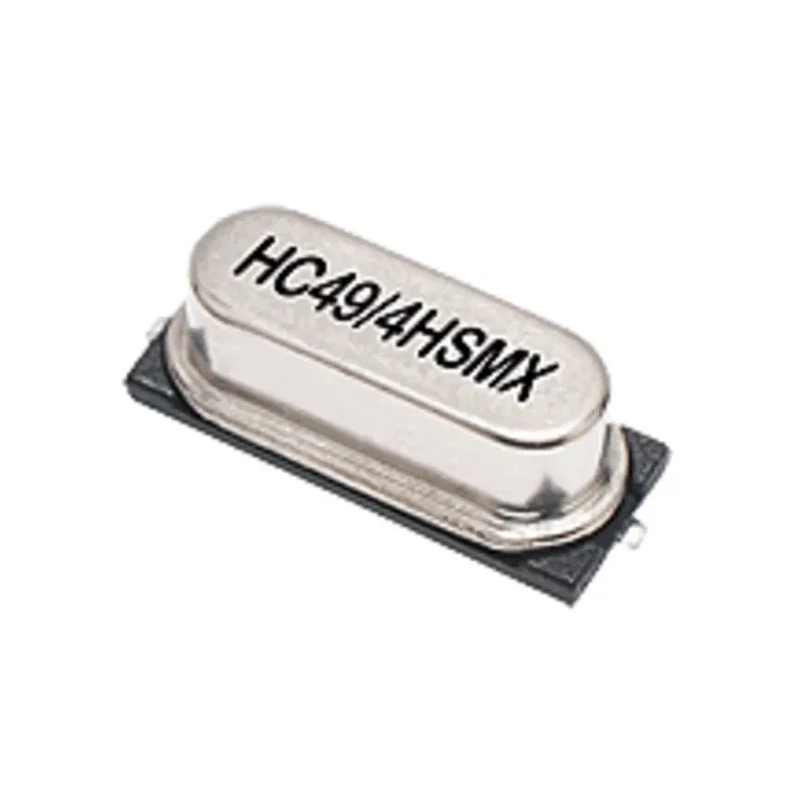

IQD 25 MHz Crystal Unit Surface Mount 2-Pin 4.3 mm Height 11.4 mm Length 4.9 mm Width ±30 ppm Tolerance LFXTAL010595
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Height | 4.3mm |
| Length | 11.4mm |
| Model | LFXTAL010595 |
| Width | 4.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 25MHz |
| Load Capacitance | 16pF |
| Series Resistance | 40Ω |
| IQD 25MHz Crystal ±30ppm HC-49-4H-SMX 2-Pin 11.05 x 4.7 x 4mmBrand | IQD |
Key Features
- This crystal unit operates at a standard frequency of 25 MHz.
- It features a ±30 ppm frequency tolerance ensuring high precision.
- The package type is surface mount with 2 pins for easy PCB integration.
- Load capacitance is specified at 16 pF for optimal circuit performance.
- Rated for a minimum operating temperature of -10°C and maximum of 60°C for reliability.
- Series resistance is 40 Ω compliant with industry standards.
- Resistance welded, hermetically sealed in an inert atmosphere for durability.
- Meets RoHS compliance standards ensuring environmental safety.
Product Description
IQD LFXTAL010595 25 MHz Crystal Unit is a precise and reliable surface mount component designed for electronic frequency control and timing applications. Featuring a 25 MHz standard frequency with a ±30 ppm tolerance, this crystal unit guarantees stable oscillator performance critical for communications, industrial, and consumer electronics.
Encased in a compact surface mount package with dimensions 11.4 mm length, 4.9 mm width, and 4.3 mm height, it utilizes a 2-pin gull wing mount for straightforward PCB assembly. The crystal is resistance welded and hermetically sealed under inert atmosphere, ensuring long-term performance stability in demanding environments.
Its load capacitance of 16 pF and series resistance of 40 Ω make it suitable for frequency control circuits that require tight tolerance and low power consumption. Operating temperature ranges from -10°C to 60°C, making it ideal for diverse industrial and commercial applications.
This crystal unit complies with RoHS directives, affirming its environmentally friendly manufacturing process. Typical uses include oscillators, communication devices, instrumentation, and other electronics requiring accurate timing references.
This crystal unit operates at a standard frequency of 25 MHz. It features a ±30 ppm frequency tolerance ensuring high precision. The package type is surface mount with 2 pins for easy PCB integration. Dimensions measure 11.4 mm in length, 4.9 mm in width, and 4.3 mm in height.
Load capacitance is specified at 16 pF for optimal circuit performance. Rated for a minimum operating temperature of -10°C and maximum of 60°C for reliability. Series resistance is 40 Ω compliant with industry standards.
Resistance welded, hermetically sealed in an inert atmosphere for durability. Meets RoHS compliance standards ensuring environmental safety. Explore the comprehensive range of Crystal Units for electronics and renew your product applications with IQD’s dependable components available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 25 MHz, ensuring stable oscillator performance for various applications.
It features a frequency tolerance of ±30 ppm, which provides high precision for timing applications.
The dimensions of this model are 11.4 mm in length, 4.9 mm in width, and 4.3 mm in height, making it suitable for compact PCB designs.
The load capacitance is specified at 16 pF, which is optimal for circuit performance in frequency control applications.
The series resistance is 40 Ω, compliant with industry standards, which helps in maintaining low power consumption.
It is rated for a minimum operating temperature of -10°C and a maximum of 60°C, allowing it to function in various environments.
This model is packaged as a surface mount component with a 2-pin gull wing mount for straightforward PCB assembly.
It meets RoHS compliance standards, ensuring that it is manufactured in an environmentally safe manner.
The country of origin for this crystal unit is India, indicating its manufacturing location.
Typical applications include oscillators, communication devices, instrumentation, and other electronics requiring accurate timing references.
It uses a surface mount type, which provides ease of integration into various electronic circuits.
The crystal unit is resistance welded and hermetically sealed in an inert atmosphere, which contributes to its long-term performance stability.
