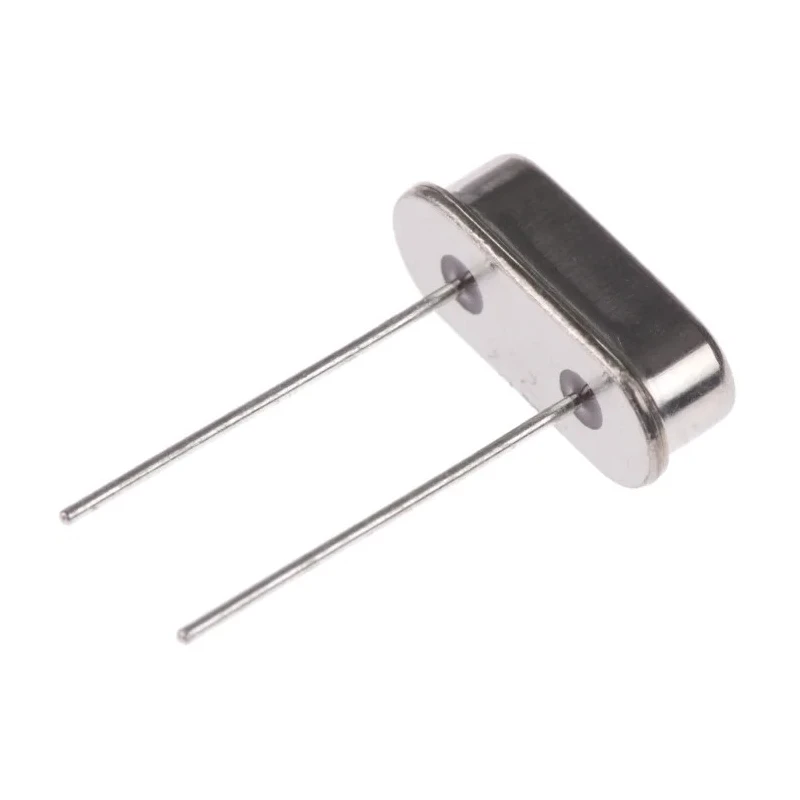

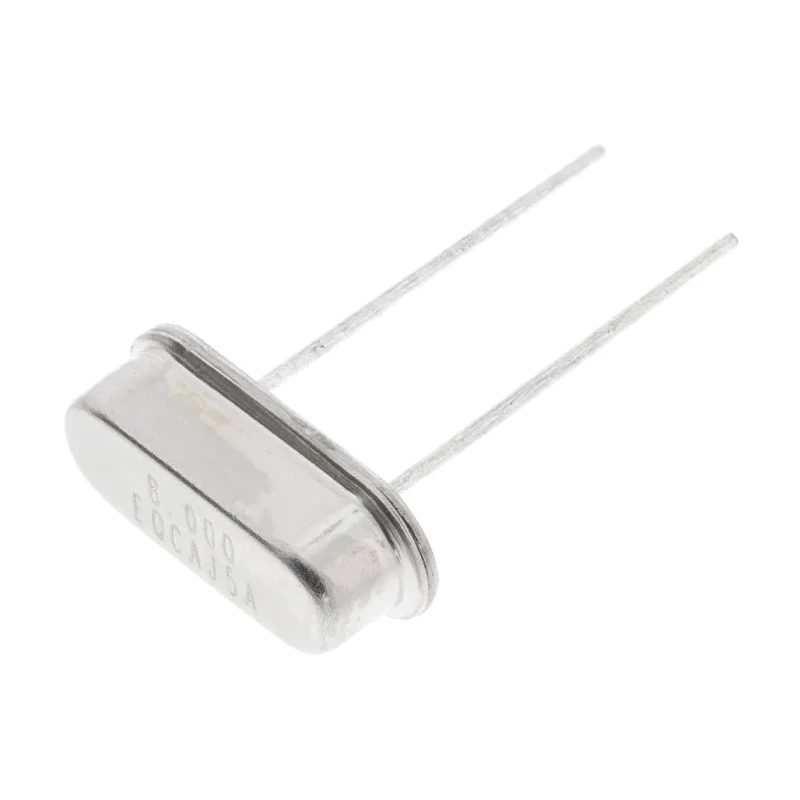

Euroquartz 8 MHz Crystal ±30 ppm HC-49 2-Pin 3.5 mm Height 10.77 mm Length 4.34 mm Width 8.000MHz HC49

Euroquartz HC49 8 MHz Crystal HC49/4H/30/50/-40+85/18pF/ATF is a precision frequency control device housed in a standard HC-49 through-hole package. Designed for electronic applications requiring stable oscillation, this crystal operates at 8 MHz frequency with a tolerance of ±30 ppm, making it well-suited for timing and frequency generation circuits.

The crystal features a 2-pin mount type enabling easy PCB mounting via through-hole technology. It has a load capacitance of 18 pF, optimizing oscillator performance and stability. Its dimensions measure 10.77 mm in length, 4.34 mm in width, and 3.5 mm in height, allowing compact design integration.

With a frequency stability rating of ±3 ppm and a series resistance of 60 Ω, the component ensures reliable signal integrity over extended use. The operational temperature range is broad from -40°C to 85°C, permitting usage in various industrial, commercial, and consumer electronics environments.

This crystal is RoHS compliant, reflecting adherence to environmental standards by restricting hazardous substances. Packaging in tape & reel format facilitates efficient handling and automated manufacturing processes in industrial PCB assembly.

Typical applications include electronic instrumentation, communication devices, embedded system clocks, and control systems where precise timing is critical. As a high-quality component from Euroquartz, it supports improvements in production efficiency and device reliability.

Operating frequency of 8 MHz with ±30 ppm tolerance. HC-49 package with 2-pin through-hole mounting. Load capacitance of 18 pF for stable oscillation. Compact footprint: 10.77 mm length, 4.34 mm width, 3.5 mm height. Wide temperature range from -40°C to +85°C operation.

Series resistance of 60 Ω ensures signal quality. Frequency stability of ±3 ppm for precision. RoHS compliant for environmental safety. Packaging in tape & reel for production automation. Manufactured in China under strict quality control.
