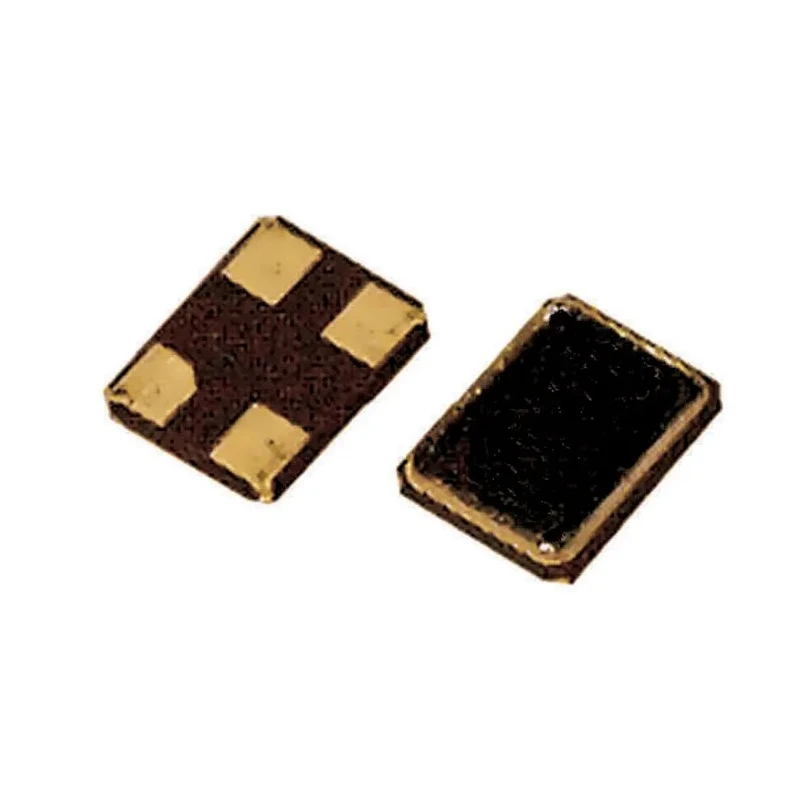

Euroquartz 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 3.2 mm x 2.5 mm x 0.7 mm 12pF 100Ω 16.000MHz MT/30/30/-40+85/12pF

Free Delivery in India | Lowest Global Shipping Charges

Euroquartz 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 3.2 mm x 2.5 mm x 0.7 mm 12pF 100Ω 16.000MHz MT/30/30/-40+85/12pF

Name: Euroquartz 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 3.2 mm x 2.5 mm x 0.7 mm 12pF 100Ω 16.000MHz MT/30/30/-40+85/12pF
Brand: Euroquartz
SKU: 213252
Price: 1.71 USD
Availability: InStock



Category Surface Mount Inductors Brand Euroquartz Condition New

Specifications

Country of Origin	Taiwan
Brand	Euroquartz
Height	0.7mm
Length	3.2mm
Model	16.000MHz MT/30/30/-40+85/12pF
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	16MHz
Load Capacitance	12pF
Series Resistance	100Ω

Key Features

This crystal operates at a standard frequency of 16 MHz, ensuring precise timing functions.

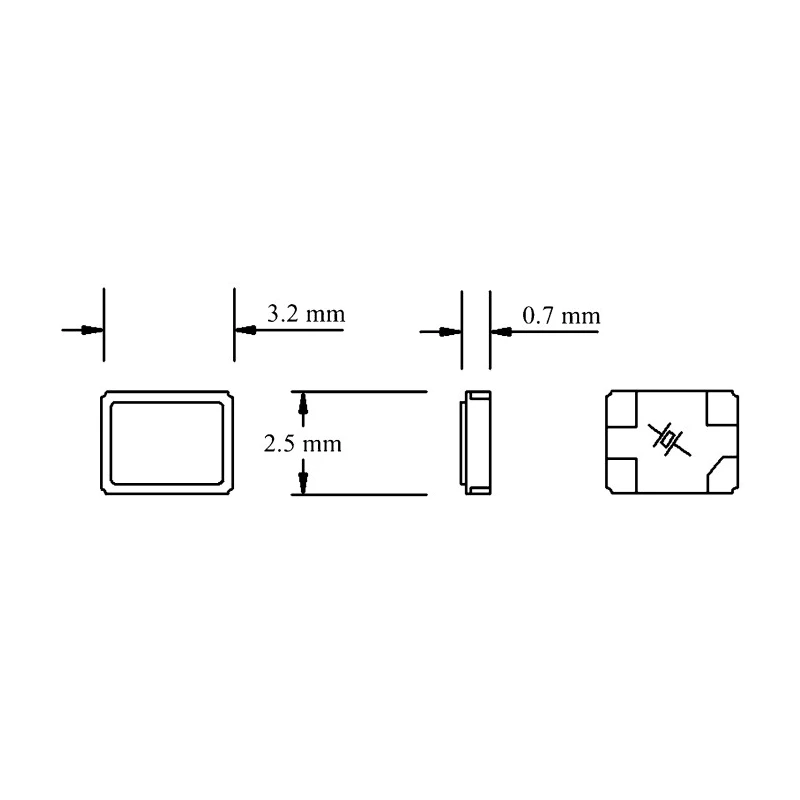

It features a compact surface mount package with dimensions of 3.2 mm length, 2.5 mm width, and 0.7 mm height.
The device has a series resistance of 100Ω and is rated for operation between -40°C and 85°C.
Mounting type is surface mount with 4 pins suitable for automated PCB assembly.
Packaged on tape and reel to facilitate efficient manufacturing processes.
It complies with RoHS standards ensuring environmental safety.
Manufactured in Taiwan, Province Of China, guaranteeing quality control and reliability.

Product Description

Euroquartz 16.000MHz MT/30/30/-40+85/12pF Crystal Surface Mount 4-Pin is designed for electronic timing and frequency control applications requiring high stability and precision. With a 16 MHz standard frequency and ±30 ppm frequency tolerance, this crystal unit maintains consistent oscillation performance across its operational temperature range.

The compact surface mount package measures 3.2 mm by 2.5 mm with a height of 0.7 mm, making it especially suited for space-constrained electronic assemblies. The crystal features a 4-pin configuration optimized for surface mount technology allowing integration into automated PCB production lines efficiently.

This crystal unit has a 12 pF load capacitance and a series resistance of 100Ω, characteristics that support stable oscillation frequency suitable for sensitive timing circuits in industrial, telecommunications, and computing applications.

Operating temperature ranges from -40°C to 85°C, adaptable for diverse environmental conditions found in industrial and commercial settings. Its RoHS compliance ensures the product meets critical environmental regulations limiting hazardous substances, which is important for eco-friendly manufacturing processes.

Precise 16 MHz standard frequency with ±30 ppm tolerance. Compact surface mount package: 3.2 mm (L) x 2.5 mm (W) x 0.7 mm (H). Load capacitance of 12 pF with a series resistance of 100Ω. Wide operating temperature range from -40°C to 85°C.

4-pin configuration for surface mount PCB assembly. Packaged on tape and reel to enhance automated manufacturing efficiency. Manufactured in Taiwan, Province Of China, ensuring reliable quality.

This crystal is ideal for use in electronics manufacturing, industrial instruments, communication devices, and embedded systems needing reliable and stable frequency control. Environmentally compliant and designed for surface mount technology, it supports high-volume production and consistent device performance.
