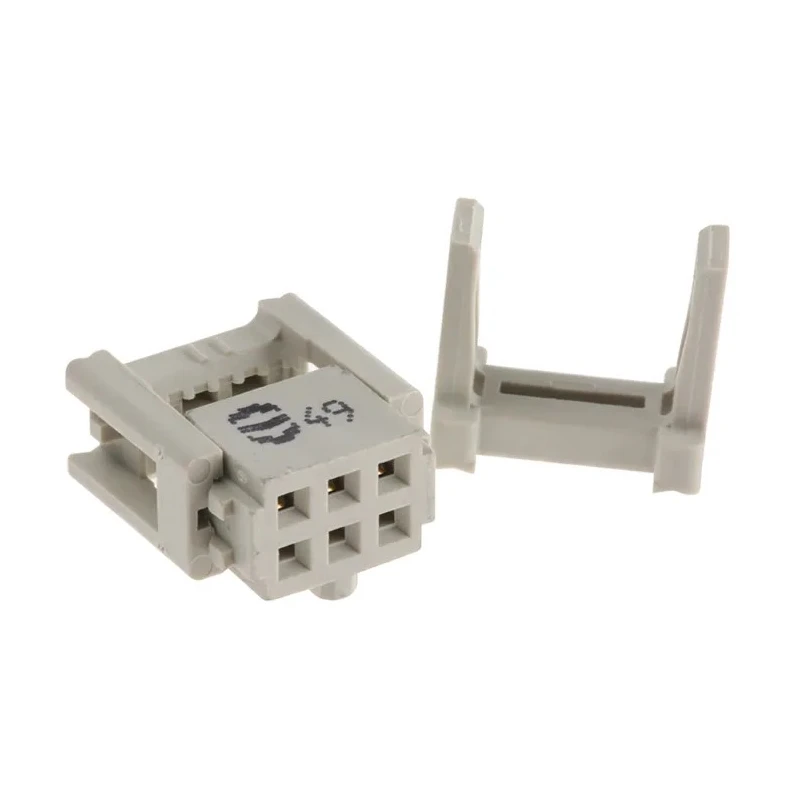

HARTING 6-Way IDC Connector Female for Cable, 2 Row 09185066813

HARTING 09185066813 is a precision-engineered 6-way IDC Connector designed for cable mounting applications. Featuring a shrouded female housing with two rows of 3 contacts each, this connector provides a reliable and compact wiring solution for industrial electronics.

The contacts are gold-plated copper alloy, offering outstanding electrical conductivity and resistance to corrosion, suitable for demanding environments. Each contact supports a current of 1 ampere and operates at voltages up to 320 volts AC, making it ideal for low to medium power electronic assemblies.

The connector's polybutylene terephthalate housing ensures robustness and thermal stability, accommodating operating temperatures from -55 degrees Celsius up to 125 degrees Celsius. Its right-angle orientation optimizes space on printed circuit boards or cable assemblies, and the IDC (Insulation Displacement Contact) termination type facilitates quick and reliable cable connection.

This model belongs to the SEK 18 series and complies with industry standards although explicit certifications are not indicated. The shrouded design enhances mating protection, and the female gender configuration suits complementary male connectors in circuit setups.

6 contacts arranged in 2 rows for dense pin placements. Gold-plated contacts for excellent conductivity and longevity. Current rating of 1A suitable for signal and control circuits. Voltage rating up to 320V AC ensuring safe operation.

Polybutylene terephthalate housing for thermal and mechanical durability. Operational temperature range from -55°C to 125°C for versatile applications. Right-angle cable mount for efficient space usage. Shrouded female connector enhances mating security and protection.

Compliant with RoHS for environmental safety. Manufactured in Switzerland ensuring premium quality standards.

This connector is well-suited for electronic manufacturing, telecommunications, instrumentation, and automotive electronics where secure, reliable cable-to-board connections are critical. End users and designers can depend on its robust construction and precise contact arrangement to optimize assembly efficiency and device performance.
