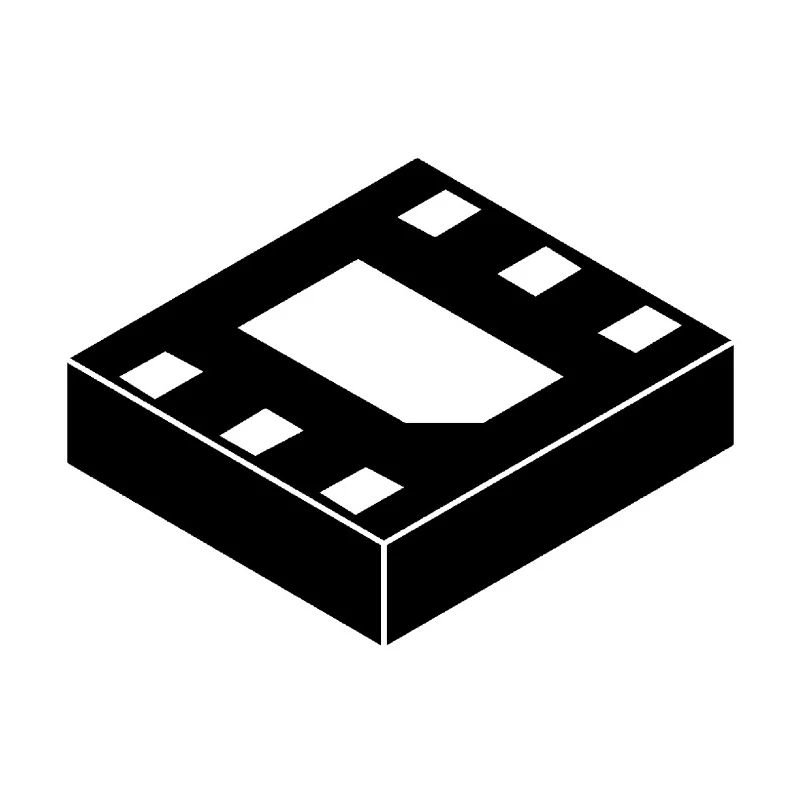

Semtech Uni-Directional TVS Diode Array 80 W, 6-Pin SLP EP RCLAMP2504P.TCT

Semtech RCLAMP2504P.TCT is a Uni-Directional TVS Diode Array designed for transient voltage suppression in sensitive electronic circuits. It offers an 80 W peak pulse power dissipation capability and comes in a compact 6-pin SLP EP surface mount package with dimensions 1.6 mm length, 1.6 mm width, and 0.55 mm height. This diode array has a maximum reverse stand-off voltage of 2.5 V and a clamping voltage of 13 V, ensuring effective protection of circuits against voltage spikes.

The device operates reliably within a temperature range of -40°C to 85°C, making it suitable for demanding ambient conditions in industrial and automotive applications. Its 5A maximum peak pulse current rating enables it to handle significant transient surges, such as those caused by lightning strikes, ensuring device and circuit longevity. The low maximum leakage current of 500 nA aids in efficient power management during normal operation.

This RCLAMP2504P series diode array includes ESD protection capability, further safeguarding electronic components from electrostatic discharge damage. The package's surface mount design allows for space-saving PCB layouts and easy integration into modern electronics manufacturing processes.

Applications include protection for power connectors, semiconductor devices, and discrete semiconductors in telecommunications, industrial control, automotive electronic systems, and general-purpose electronics. The robust construction supports high-current lightning protection, ensuring circuit integrity and reliability.

Uni-directional diode configuration guarantees effective voltage suppression in circuits. Compact 6-pin SLP EP package with dimensions 1.6mm x 1.6mm x 0.55mm. Maximum reverse stand-off voltage of 2.5 V and clamping voltage of 13 V for reliable protection.

Operates in a wide temperature range from -40°C to 85°C, ensuring durability in harsh environments. Peak pulse current rating of 5A supports protection against high voltage spikes. Low reverse leakage current of 500 nA minimizes power loss during normal operation.

ESD protection capability enhances circuit resilience against electrostatic discharge events. Single element per chip design optimized for high-current lightning protection applications. Ideal for electronic components and power connectors in industrial, automotive, and semiconductor uses.
