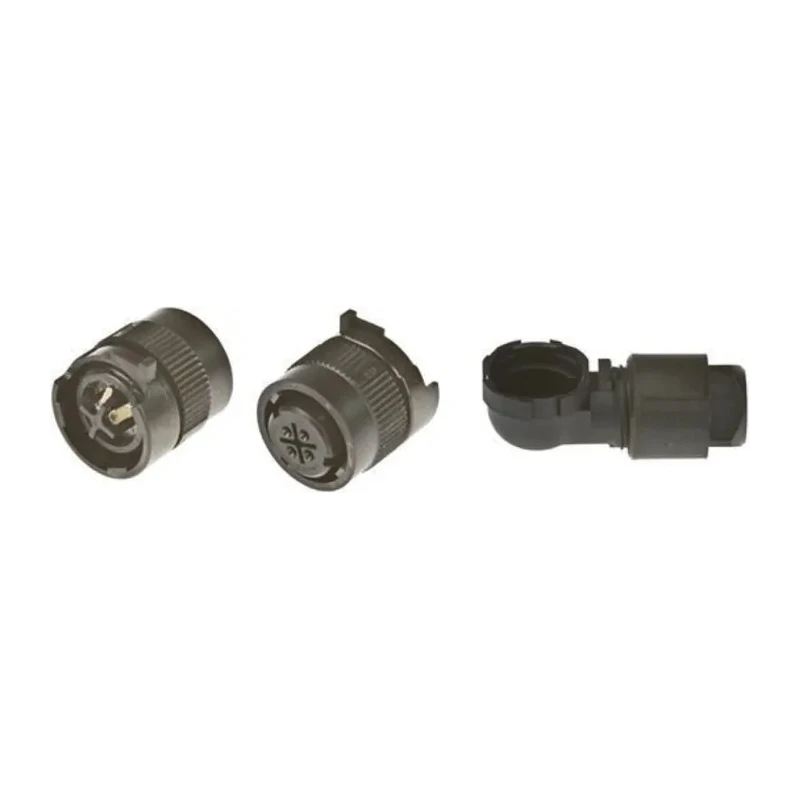

JAE Circular Connector, 10 Contacts, Cable Mount, 22 mm Connector Size, Plug Female, IP67 Rated, Right Angle JN2FS10SL1-R

JAE JN2FS10SL1-R is a high-quality circular connector designed for industrial electrical and electronic systems. With 10 female contacts, this cable mount plug connector offers reliable and efficient electrical connectivity under demanding conditions. It features a 22 mm connector size and a right angle orientation that enables flexible cable routing in confined spaces.

The connector's housing is made from synthetic resin, ensuring durability and resistance against environmental factors. Rated to IP67 standards, it provides excellent waterproof and dustproof protection, ideal for harsh industrial environments and outdoor applications.

Operating at voltages up to 200V and currents of 3A per contact, this connector supports varied industrial power and signal transmission needs. The gold over nickel plating on copper contacts ensures superior conductivity and corrosion resistance. The 90° plug orientation can be rotated in four directions, allowing adaptable cable lead positioning.

The connector incorporates a push lock mating mechanism characteristic of the JN2 series, facilitating easy, quick, and secure connections with a one-touch push and twist lock. The termination type is crimp, providing reliable termination for cable installation.

These features make the JAE JN2FS10SL1-R connector suitable for use in industrial automation, manufacturing equipment, power distribution systems, and other commercial electrical assemblies requiring durable and water-resistant circular connectors.

This connector features 10 contacts suitable for reliable electrical connections. It has a cable mount type with push lock mating for secure attachment. The plug is female with gold over nickel plated copper contacts for durability and conductivity.

The housing is made of synthetic resin, providing robust protection and IP67 waterproof and dustproof rating. Designed for operation between -20°C to 125°C temperature range and 200V voltage rating. The connector size is 22 mm with a shell size of 20 mm for compact installation.

The contact current rating is 3A, suitable for moderate current applications. The plug directs the cable leader at a 90° angle, rotatable in four directions. It complies with JAE's JN2 series offering push and twist type one-touch lock mechanism for ease of mating.

EnvMart provides comprehensive catalog access to JAE industrial connectors including the JN2FS10SL1-R model, supporting professionals with quality components for electrical connectivity needs.
