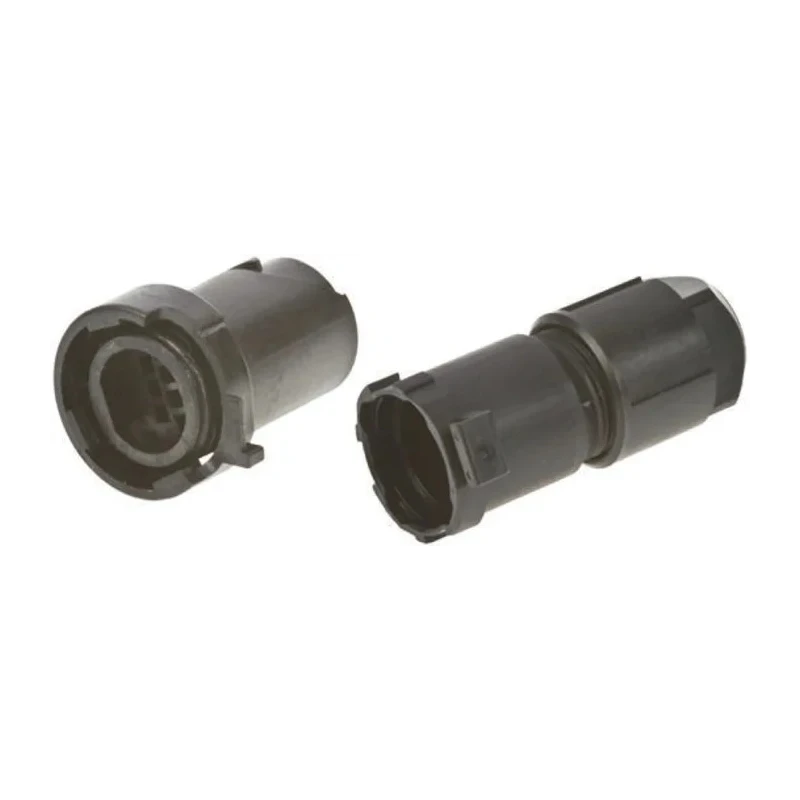

JAE Circular Connector, 10 Contacts, Cable Mount, 22 mm Size, Socket Male, IP67, 3A Current, 200V, Push Lock JN1HS10PL2

Free Delivery in India | Lowest Global Shipping Charges

JAE Circular Connector, 10 Contacts, Cable Mount, 22 mm Size, Socket Male, IP67, 3A Current, 200V, Push Lock JN1HS10PL2



Category Industrial Circular Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	200V
Brand	JAE
Orientation	Straight
Current	3A
Model	JN1HS10PL2
IP Rating	IP67
Mount Type	Cable
Housing Material	Synthetic Resin
Contact Material	Copper
Series	JN1
Termination Type	Crimp
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-20°C
Pole Format	10
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shell Size	20.3 mm
Mating Type	Push Lock
Connector Size	22 mm
Plug/Socket	Socket

Key Features

Constructed with synthetic resin housing for durability.
Gold-plated copper contacts ensure reliable conductivity.
Operates in a wide temperature range from -20°C to 125°C.
Crimp termination type guarantees secure wire connection.
Provides waterproof and dustproof protection with IP67 rating.
Straight orientation facilitates easy installation in inline cable receptacles.
Incorporates JN1 series push and twist one-touch lock mechanism.
Shell size measures 20.3 mm with a 10-pole format.

Product Description

JAE JN1HS10PL2 is a high-quality circular connector from the JN1 series, suitable for industrial and electronic applications. This connector is designed for cable mounting with 10 male contacts arranged in a 10-pole format within a 22 mm connector size. Its synthetic resin housing ensures robust protection while maintaining lightweight design.

The connector offers a push lock mating type that enables easy and secure connections, combined with a straight orientation for convenient inline cable receptacle installation. It is rated IP67, providing exceptional waterproof and dustproof protection, making it ideal for harsh environments and industrial settings.

The contacts are made of copper with gold plating to provide excellent electrical conductivity and corrosion resistance. Operating temperature ranges from -20°C to 125°C, allowing reliable performance in diverse conditions. With a current rating of 3A and voltage rating of 200V, it supports moderate power transmission needs.

The termination method is crimp, which secures wire connections firmly, enhancing reliability and safety. The shell size of 20.3 mm provides a compact form factor, suitable for dense wiring requirements. The JN1 series' push and twist one-touch lock mechanism ensures effortless and secure mating, beneficial for assembly lines and maintenance.

Constructed with synthetic resin housing for durability. Gold-plated copper contacts ensure reliable conductivity. Operates in a wide temperature range from -20°C to 125°C. Crimp termination type guarantees secure wire connection.

Provides waterproof and dustproof protection with IP67 rating. Straight orientation facilitates easy installation in inline cable receptacles. Incorporates JN1 series push and twist one-touch lock mechanism. Shell size measures 20.3 mm with a 10-pole format.

Designed for industrial applications requiring safe and reliable connections.

This circular connector is widely used across industrial automation, electronic manufacturing, machinery assembly, and control equipment wiring. Its reliable sealing and electrical properties make it suitable for harsh environments including manufacturing plants, water treatment facilities, and other industrial sites.

Explore a wide range of JAE connectors and circular connector solutions on EnvMart for robust and high-performance electronic component needs.

Explore more products in our Industrial Circular Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 3A and a voltage rating of 200V, making it suitable for moderate power transmission needs.

The connector has an IP67 rating, providing excellent waterproof and dustproof protection, suitable for harsh environments.

It features a synthetic resin housing for durability and copper contacts that are gold-plated to ensure reliable conductivity and corrosion resistance.

The operating temperature range for this connector is from -20°C to 125°C, allowing it to perform reliably in diverse conditions.

This connector has 10 male contacts arranged in a 10-pole format, facilitating various connection needs.

It utilizes a crimp termination type, which guarantees a secure wire connection for enhanced reliability.

The shell size measures 20.3 mm, providing a compact form factor suitable for dense wiring requirements.

This model incorporates a push lock mating type, which facilitates easy and secure connections.

The connector features a straight orientation, which makes installation in inline cable receptacles straightforward.

The JN1HS10PL2 connector is manufactured in India.

It is widely used in industrial automation, electronic manufacturing, machinery assembly, and control equipment wiring, particularly in harsh environments.

This model belongs to the JN1 series of connectors, which are designed for industrial and electronic applications.
