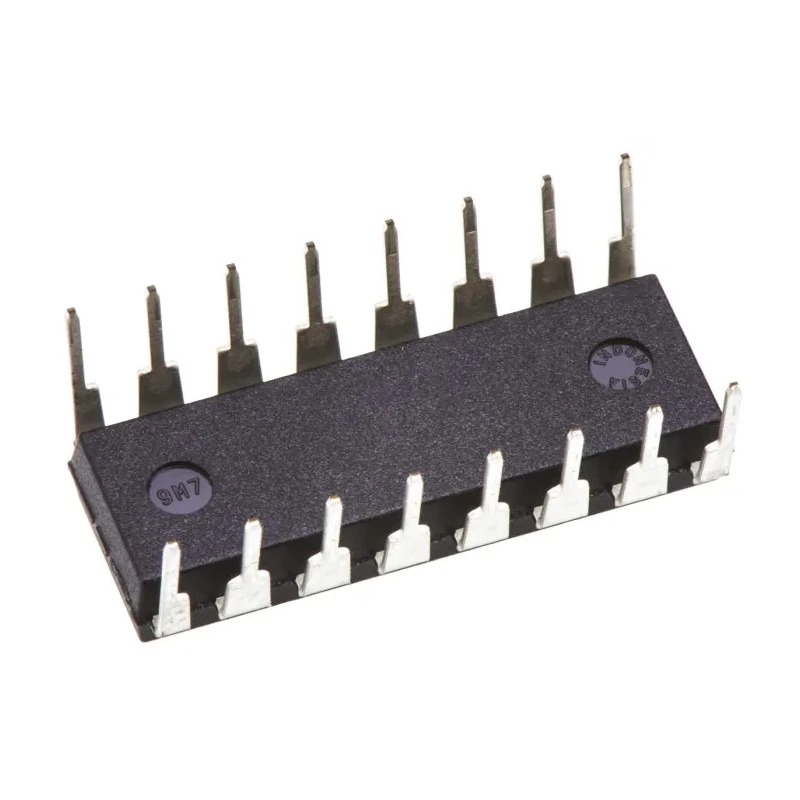

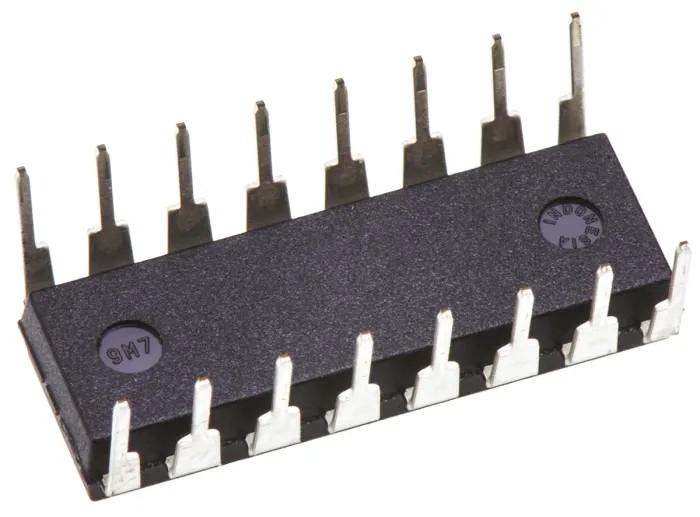

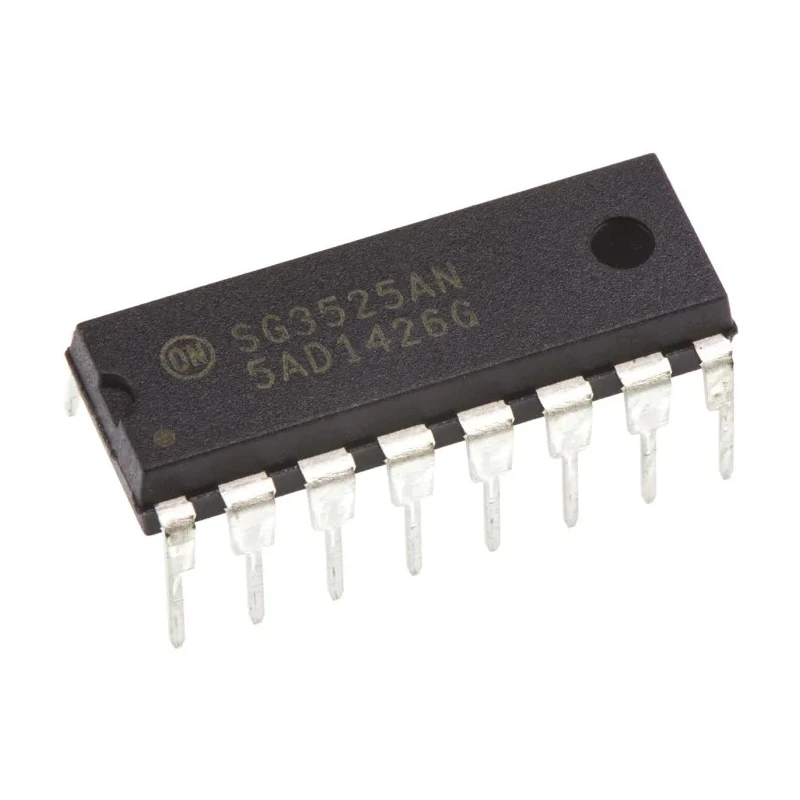

onsemi 16-Pin PDIP 2-Channel Voltage Mode PWM Controller 400 kHz 35V SG3525ANG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.43mm |
| Length | 19.55mm |
| Model | SG3525ANG |
| Width | 6.85mm |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 49% |
| Series | SG |
| Output Current | 400mA |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 2 |
| Output Voltage | 5.2V |
| Maximum Switching Frequency | 400kHz |
| Pin Count | 16 |
| Maximum Supply Voltage | 35V |
| Minimum Supply Voltage | 8V |
| PWM Controller Type | Voltage Mode |
Key Features
- The device operates with a maximum output current of 400mA.
- Provides two separate PWM outputs for versatile control.
- Package type is PDIP with through-hole mounting feature for reliable PCB integration.
- Supports a minimum supply voltage of 8V and an output voltage of 5.2V.
- Operates efficiently within a temperature range of 0°C to 70°C.
- The SG3525ANG delivers a maximum duty cycle of 49%, suitable for precise power control applications.
- The compact dimensions include length 19.55mm, width 6.85mm, and height 3.43mm.
Product Description
onsemi SG3525ANG is a 16-Pin PDIP package PWM Controller specifically designed for power conversion circuits, offering a maximum switching frequency of 400 kHz and capable of operating at supply voltages up to 35V. It features two voltage mode PWM outputs with a maximum output current of 400mA, making it suitable for efficient DC-DC converter designs.
This device supports through-hole mounting, facilitating easy integration on printed circuit boards. Its operating temperature range spans from 0°C to 70°C, allowing reliable performance in various industrial and commercial environments.
The SG3525ANG provides a maximum duty cycle of 49%, enabling precise modulation for power control applications. The device's compact dimensions - length of 19.55mm, width of 6.85mm, and height of 3.43mm - ensure minimal PCB space usage. Typical applications include power management ICs for industrial power supplies, laboratory equipment, and manufacturing control systems.
Its 5.2V output voltage and 8V minimum supply voltage support stable operation within required power specifications. The PWM controller's voltage mode operation supports diverse electronic components, delivering reliable performance for construction, HVAC, and embedded control system applications.
The device offers two-channel PWM outputs delivering up to 400mA current each. Through-hole mounting PDIP 16-pin package enables easy circuit design. Maximum switching frequency of 400 kHz ensures efficient power regulation.
Wide operating temperature from 0°C to 70°C for varied environments. Supports up to 35V supply voltage for high power applications. Compact form factor suitable for industrial and laboratory power control systems. Voltage mode PWM controller type enhances DC-DC converter designs.
This onsemi PWM Controller is ideal for use in industrial machines, laboratory instruments, construction equipment, and HVAC control circuits. For additional power management options, explore the EnvMart electronic components and power management ICs catalog.
