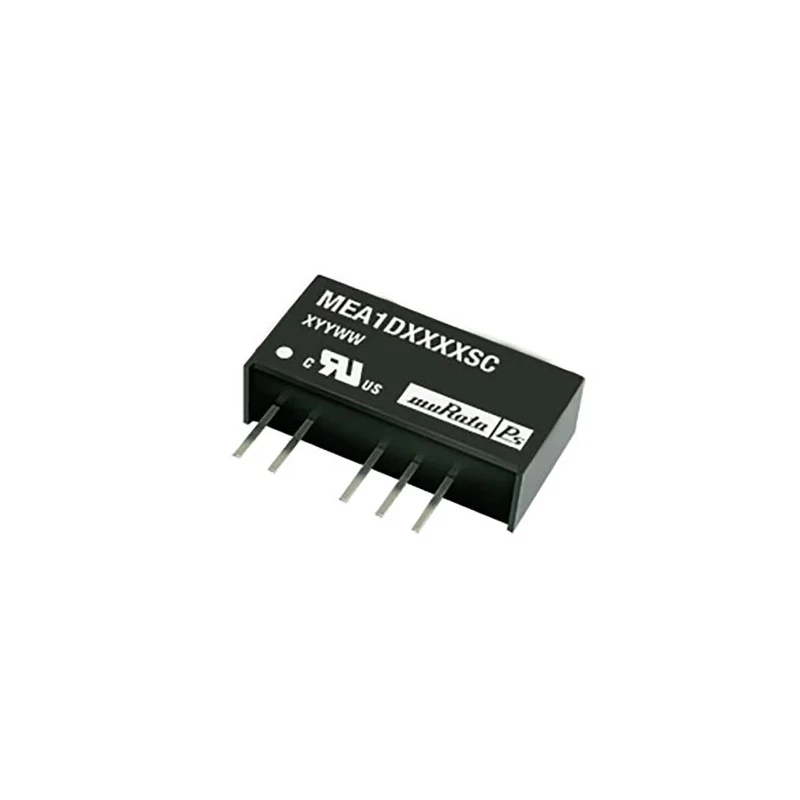

Murata Power Solutions 1W SIP Dual Output Unregulated Isolated DC-DC Converter, 5V DC, 5.5V DC Input, 4.5V Input MEA1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MEA1 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 85% |
| Length | 19.5mm |
| Model | MEA1 |
| Depth | 10mm |
| Gross Weight | 1.3g |
| Width | 6.9mm |
| Mount Type | Through Hole |
| Series | MEA1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -25°C |
| MTBF | 3663000h |
| Number of outputs | 2 |
| Ripple and Noise | 25mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | -100A |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 100A |
| Output Voltage 2 | -5V dc |
Key Features
- The converter supports an output current range from -100A to 100A across two outputs.
- It utilizes a through-hole mount type for robust PCB integration.
- This SIP package ensures an efficiency rating around 85% and MTBF of over 3.6 million hours.
- The device operates reliably across -25°C to 85°C temperature range with full load.
- High isolation voltage of 1kV DC enhances noise reduction and safety.
- Compact dimensions of 19.5 mm length, 10 mm depth, and 6.9 mm width optimize space utilization.
- Fully encapsulated design with toroidal magnetics requires no external heatsink or capacitors.
- It complies with RoHS standards ensuring environmental safety.
Product Description
Murata Power Solutions MEA1 1W SIP Dual Output Unregulated Isolated DC-DC Converter is designed for electronic applications requiring stable dual rail supplies with galvanic isolation. Featuring a SIP7 package and industry-standard pinout, this converter delivers up to 1 watt of total load power, with an output voltage of 5V DC and input voltage ranging from 4.5V to 5.5V DC.
This converter achieves a high efficiency of approximately 85%, making it energy efficient for continuous operation. It is designed to tolerate temperature ranges from -25°C up to a maximum of 85°C, allowing reliable use in various industrial and commercial settings including power management, instrumentation, and embedded systems.
The device offers excellent ripple and noise performance with 25 mV peak-to-peak ripple, and an isolation voltage of 1 kV DC, which helps in reducing switching noise and enhancing the reliability of sensitive electronics.
The compact rectangular SIP package measures 19.5 mm in length, 10 mm in depth, and 6.9 mm in width, weighing only 1.3 grams, making it ideal for space-constrained designs. Its fully encapsulated construction with toroidal magnetics negates the need for external heatsinks or tantalum capacitors, simplifying PCB layout and improving longevity.
No external components are required for operation, which reduces system complexity and maintenance. The converter is RoHS compliant, assuring adherence to environmental regulations.
Typical applications include industrial automation, laboratory instruments, telecommunications, and power supplies where isolated dual outputs are essential. The MEA1 series is recognized for its robustness, making it suitable for high-reliability operation with an MTBF of 3,663,000 hours as per MIL-HDBK-217F standards.
The converter's SIP7 construction and high efficiency suit advanced electronic designs. Wide temperature tolerance allows deployment in harsh environments. Provides noise filtration through galvanic isolation. Compact physical size and light weight improve integration flexibility.
No external heatsink or capacitors needed, reducing overall system cost. RoHS compliance supports eco-friendly designs. High MTBF ensures long service life for demanding applications. Explore more products and solutions in the DC/DC Converters category at EnvMart to meet your design and operational needs.
