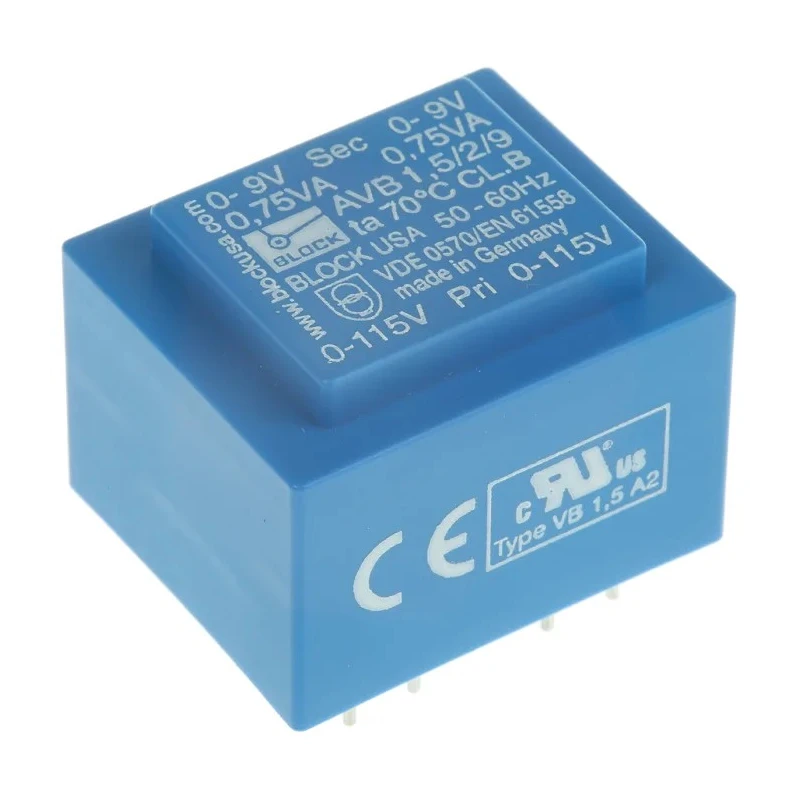

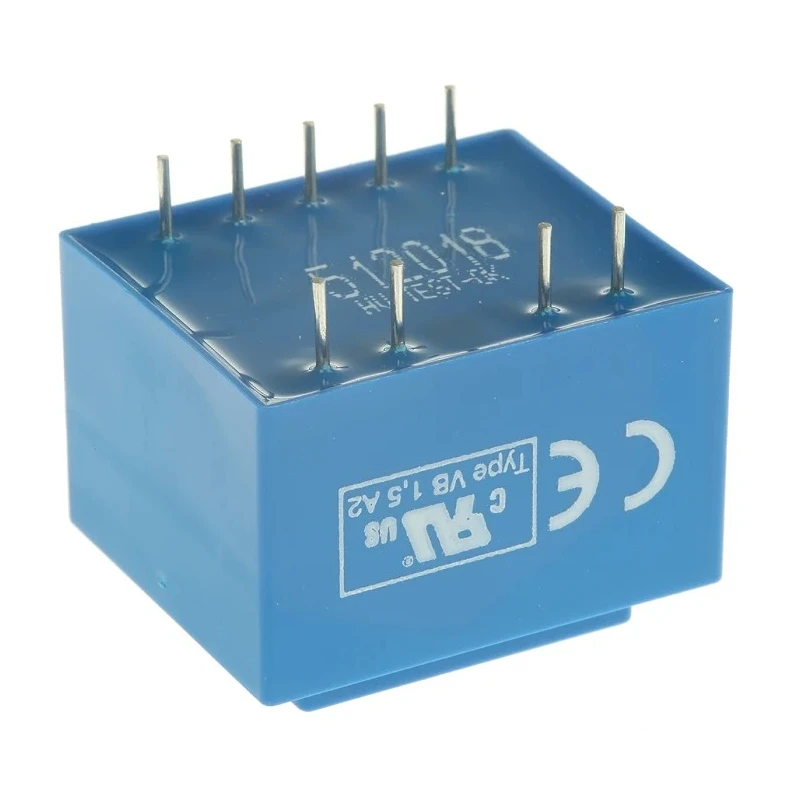

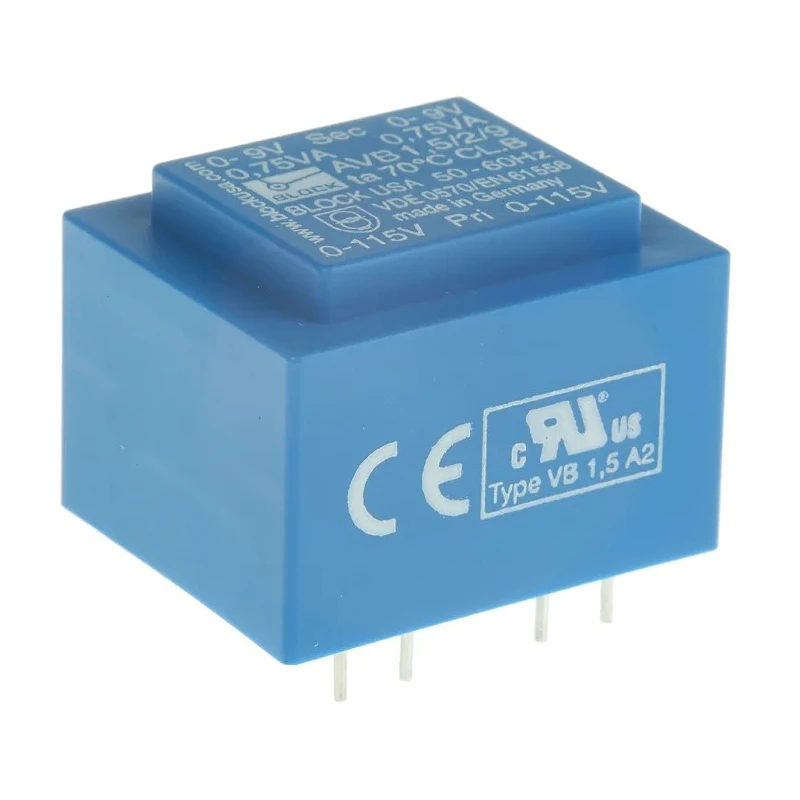

Block 9 V AC 2 Output Pin PCB Transformer, C-UL-US, ENEC 10 (VDE) 1.5 VA AVB1.5/2/9

Block AVB1.5/2/9 9 V AC 2 Output Pin PCB Transformer is a compact and reliable transformer designed for electronics applications requiring safe and efficient voltage transformation. It offers dual secondary outputs with the ability to connect windings in series or parallel, facilitating flexible circuit designs. The primary voltage supports both 115 V AC and 230 V AC inputs, with a standard frequency range of 50 to 60 Hz.

The transformer uses vacuum epoxy resin moulding rated to UL94-V0 standards, providing excellent flame retardance and protection. Double section glass fibre reinforced polyamide bobbins ensure mechanical durability. Its inherently short circuit proof design helps protect circuits and prolong device lifespan.

With a power rating of 1.5 VA and a 57% efficiency, the device balances compact size and thermal management, operating reliably up to 70°C maximum temperature. The isolation voltage of 5000 V provides electrical safety for sensitive equipment.

Approvals including C-UL-US and ENEC 10 (VDE) certify this transformer's suitability for demanding industrial and commercial electronic power supply applications. Its pin-type mount allows secure attachment to printed circuit boards, making it well-suited for manufacturing and repair workflows.

This PCB transformer features dual 115 V AC primary voltages supporting 50 to 60 Hz operation. It includes two secondary outputs providing 9 V AC suitable for series or parallel connections. Constructed with vacuum epoxy resin moulding for UL94-V0 flame resistance and high electrical safety standards.

Compact dimensions of 32.3 mm length, 27.3 mm width, and 23.8 mm depth suitable for PCB mounting with pin type installation. Maximum operating temperature is 70°C with 5000 V isolation voltage ensuring safe operation. Designed as a short circuit proof transformer with 57% efficiency and low temperature rise.

Approved to standards including C-UL-US and ENEC 10 (VDE) for industrial reliability. This transformer is manufactured in Germany, reflecting quality European engineering.

This Block PCB Transformer is highly applicable across industrial electronics, laboratory power supplies, manufacturing equipment, HVAC control systems, and other commercial or consumer electronic applications requiring low power, isolated voltage sources with high safety standards. For more transformers and power supply components, explore the Electronics & Electricals category on EnvMart.
