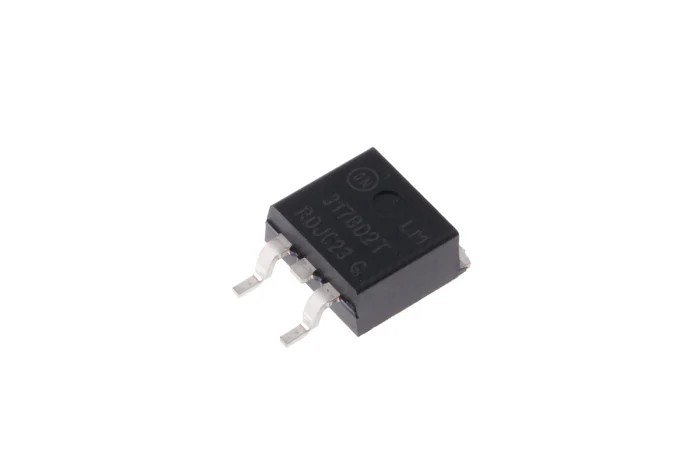

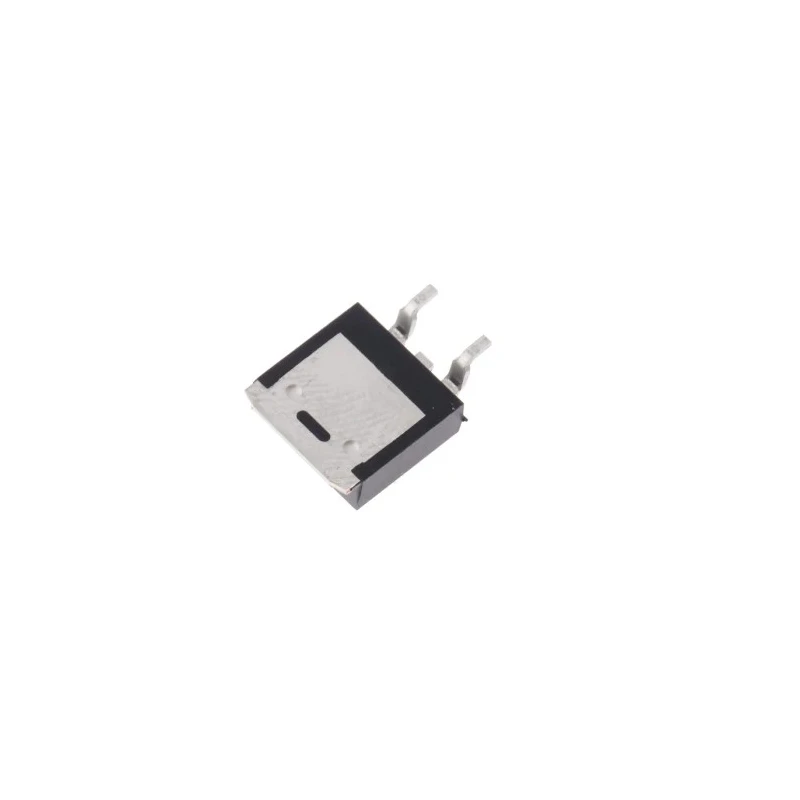

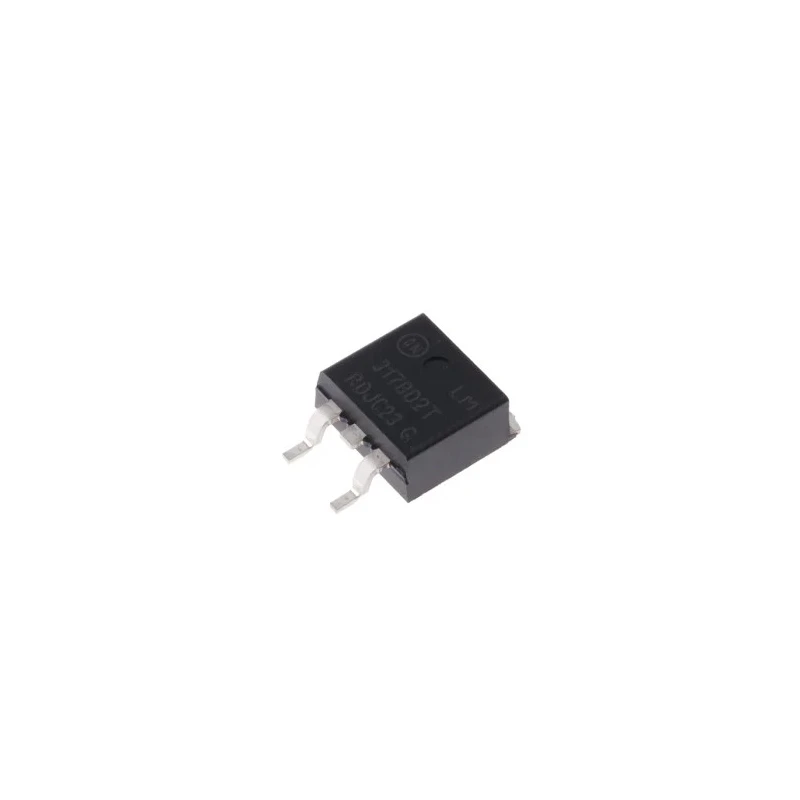

onsemi Adjustable Linear Voltage Regulator 1.2-37V 1.5A Surface Mount 3-Pin 125°C LM317BD2TR4G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi LM317BD2TR4G, Voltage Regulator 40V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 4.57mm |
| Length | 10.24mm |
| Model | LM317BD2TR4G |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | LM317 |
| Output Current | 1.5 A |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Output Voltage Range | 1.25 V to 37 V |
| Standards/Approvals | AEC-Q100, PPAP |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Adjustable output voltage range from 1.25 V to 37 V for versatile applications.
- Supports a maximum output current of 1.5 A ensuring robust power delivery.
- Surface mount type with 3 pins for easy PCB integration.
- Supports a maximum operating temperature of 125°C, suitable for demanding environments.
- Meets AEC-Q100 automotive standard and PPAP for automotive compliance.
- Compact dimensions of 10.24 mm length, 9.35 mm width, and 4.57 mm height.
- Includes short circuit current limiting and thermal protection for device safety.
- Commonly used for on-card regulation, programmable output regulation, and precision current regulation.
Product Description
onsemi LM317BD2TR4G adjustable linear voltage regulator is engineered for applications requiring a reliable positive voltage regulation with adjustable output between 1.25 V and 37 V. Designed for surface mount technology, this device features a compact 3-pin package with dimensions of 10.24 mm in length, 9.35 mm in width, and 4.57 mm in height.
Operating safely up to 125°C and supporting a maximum input voltage of 40 V, the LM317BD2TR4G offers versatility across various industrial, automotive, and electronics applications. It complies with the rigorous AEC-Q100 automotive standard and PPAP ensuring high reliability and suitability for automotive system integration.
The regulator provides an output current of up to 1.5 A with built-in short circuit current limiting, thermal shutdown, and safe-area compensation features enhancing protection against overload and overheating conditions. Its design allows use in on-card voltage regulation, programmable power supplies, and as a precision current regulator by using an external resistor.
This positive polarity voltage regulator is ideal for power management tasks in industrial controls, embedded systems, telecommunications, automotive electronics, and general-purpose electronic circuits.
Adjustable voltage output from 1.25 to 37 V. Maximum output current is 1.5 A. Surface mount 3-pin package. Thermal protection and current limiting. Automotive grade with AEC-Q100 qualification. Compact form factor: 10.24 x 9.35 x 4.57 mm.
Operating temperature range up to 125°C. Supports high voltage applications up to 40 V input.
This voltage regulator from onsemi is a trusted device for precision power regulation and efficiency in demanding industrial, automotive, and electronics manufacturing contexts. Explore more in the Voltage Regulator category on EnvMart for compatible components and solutions.
