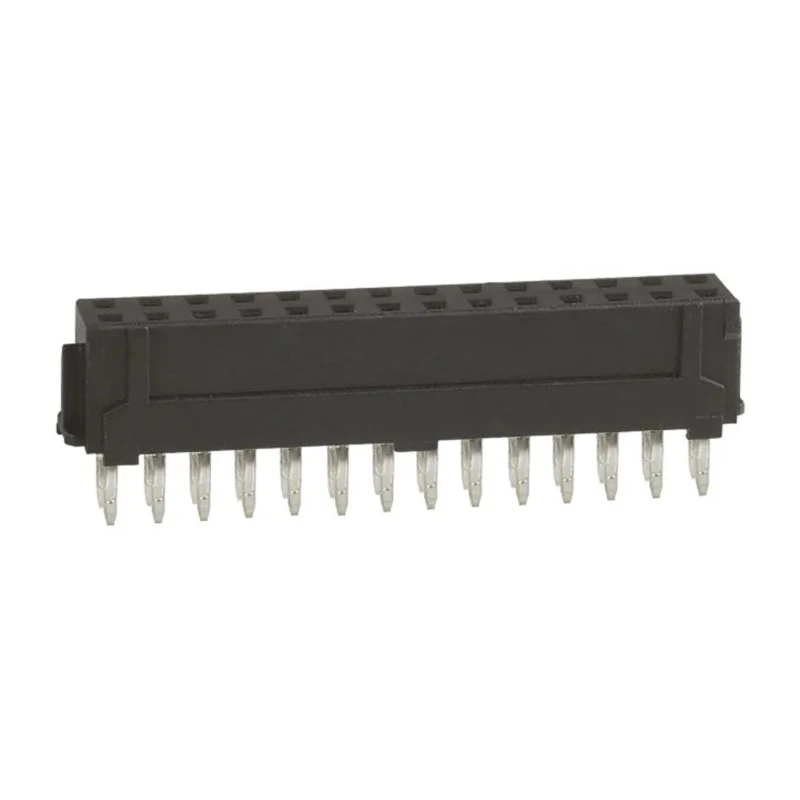

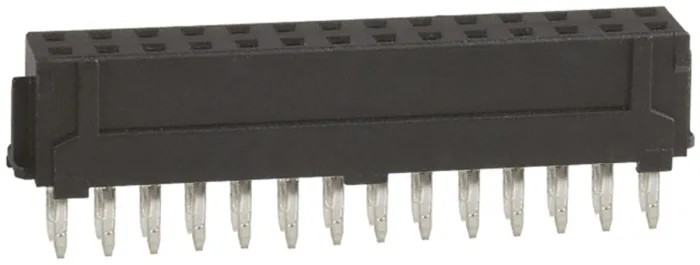

Hirose DF11 Series Straight Through Hole PCB Socket 28-Contact 2 Row 2 mm Pitch Solder DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 28 |
| Contact Gender | Male |
| Connector System | Board-to-Board |
Key Features
- Compact double row design saves board space with a 5 mm depth.
- Guide ribs prevent incorrect insertion and twisting during mating.
- Made with polyamide housing material for durability.
- Rated for 2 A current and 250 V voltage operation.
- Suitable for board-to-board connections in various electronic devices.
- Operating temperature range from -30°C to 85°C.
- Contacts are brass with tin plating ensuring reliable electrical performance.
- Through hole mount type with straight orientation for easy soldering.
Product Description
Hirose DF11 Series straight through hole PCB socket model DF11-28DS-2DSA(05) features a compact double row 28-contact design with 2 mm pitch solder termination, suitable for board-to-board electronic connections.
Its polyamide housing with guide ribs prevents incorrect insertion and twisting, while metal fittings on related SMT versions improve PCB retention and reduce solder peeling risks.
The connector supports up to 2 A current at 250 V voltage and operates reliably between -30°C and 85°C. Brass contacts plated with tin ensure durable and stable electrical contact.
This 5 mm depth socket allows double row contact placement in the space normally occupied by a single row connector, saving valuable PCB real estate.
The through hole mount and straight orientation allow secure and easy soldering insertion into circuit boards used in portable devices, digital cameras, LCD displays, digital video recorders, car navigation, access control units, and measurement instruments.
Compact, space-saving design with 5 mm depth. Guide ribs prevent mismating and twisting. Polyamide housing material for robust performance. Rated for 2 A current and 250 V voltage. Operates between -30°C and 85°C temperature range.
Brass contact material with tin plating for conductivity and corrosion resistance. Through hole mount type with straight orientation. Ideal for board-to-board applications in multiple electronic devices. Manufactured in Malaysia ensuring quality assurance.
This Hirose DF11 series PCB socket is a reliable component for industrial, electronic, and manufacturing applications requiring compact, efficient board connections. Explore more electronic connectors and PCB Sockets at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 2 A.
It is rated for a voltage operation of 250 V.
The operating temperature range is from -30°C to 85°C.
This socket uses a through hole mount type for installation.
The pitch size of the contacts is 2 mm.
It features 28 contacts in a double row configuration.
The housing is made of polyamide, and the contacts are brass with tin plating.
The socket has a straight orientation for easy soldering.
It is suitable for board-to-board connections in various electronic devices such as portable devices, digital cameras, and LCD displays.
Guide ribs are included to prevent incorrect insertion and twisting during mating.
This PCB socket is manufactured in Malaysia.
It uses solder termination for secure connections.
