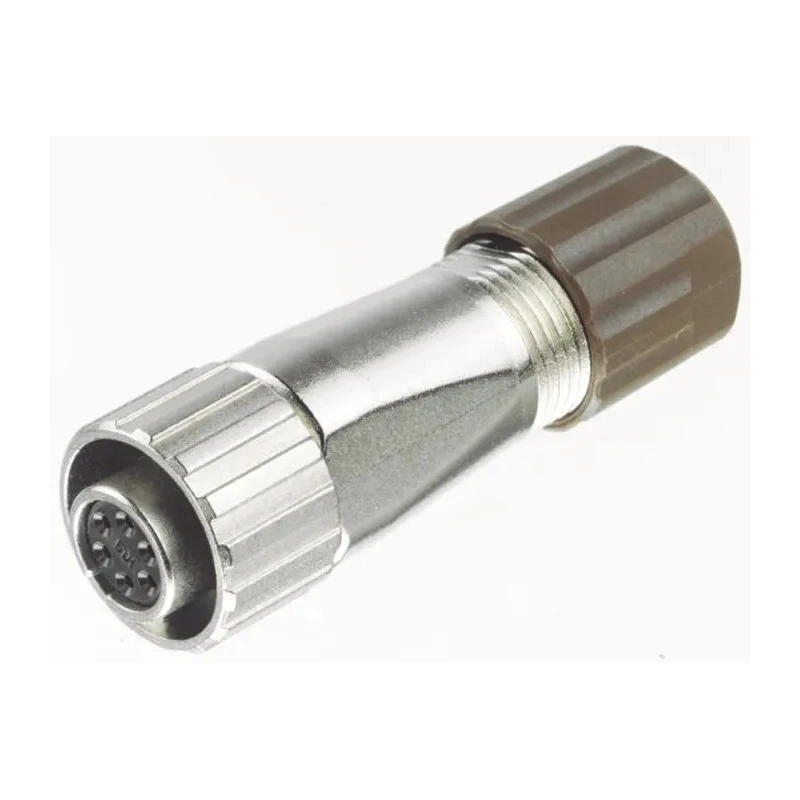

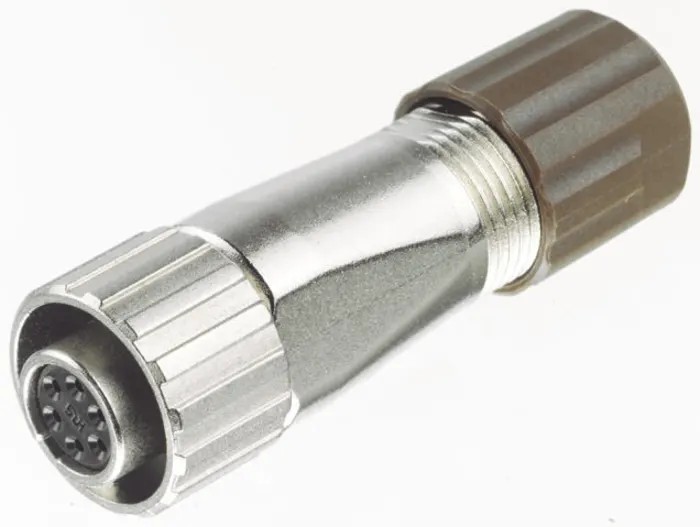

Hirose Miniature Circular Connector Cable Plug, 20 Contacts, Female, IP67/IP68, Bayonet Mating, Zinc Alloy Shell LF13WBP-20S

Free Delivery in India | Lowest Global Shipping Charges

Hirose Miniature Circular Connector Cable Plug, 20 Contacts, Female, IP67/IP68, Bayonet Mating, Zinc Alloy Shell LF13WBP-20S

Name: Hirose Miniature Circular Connector Cable Plug, 20 Contacts, Female, IP67/IP68, Bayonet Mating, Zinc Alloy Shell LF13WBP-20S
Brand: Hirose
SKU: 212330
Price: 36.81 USD
Availability: InStock



Category Industrial Circular Connectors Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	30, 42V
Brand	Hirose
Orientation	Straight
Current	2A
Model	LF13WBP-20S
IP Rating	IP67, IP68
Mount Type	Cable
Housing Material	Zinc Alloy
Contact Material	Bronze
Series	LF
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Pole Format	20
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Shell Size	13 mm
Mating Type	Bayonet
Connector Size	Miniature
Plug/Socket	Plug

Key Features

The connector is designed for cable mount applications.
It has a bayonet mating type for secure and easy connection.
The shell is constructed from zinc alloy providing durability.
Operating temperature ranges from -25°C to 85°C.
Contacts are gold plated bronze to ensure reliable conductivity.
Rated for up to 2 amperes at 30 to 42 volts.
The miniature connector size is suitable for compact installations.
The connector orientation is straight, optimizing cable routing.

Product Description

Hirose LF13WBP-20S is a miniature circular connector cable plug with 20 female contacts, designed for demanding industrial applications requiring reliable connectivity. It provides robust protection with IP67 and IP68 ingress protection ratings, making it suitable for environments exposed to dust and water.

This connector employs a bayonet mating system that ensures secure and fast engagement. Its straight orientation facilitates efficient cable management in tight spaces. The shell is crafted from zinc alloy, combining strength and corrosion resistance to withstand harsh industrial conditions.

Electrical specifications include a current rating of 2 amperes and voltage operation between 30 and 42 volts, suitable for low power signal and control uses. Contacts are gold plated bronze, which enhances conductivity and resists corrosion over long-term use.

The termination type is solder, allowing for permanent and reliable wire connections. Operating temperature spans from -25°C to 85°C, supporting use in various environments including automotive, industrial automation, and machinery control systems.

This connector is manufactured in Japan, assuring precision engineering and compliance with rigorous quality standards. The LF Series from Hirose is known for ease of shielded termination and assembly, making it ideal for professional electronic equipment manufacturing and repair.

The connector is designed for cable mount applications. It has a bayonet mating type for secure and easy connection. The shell is constructed from zinc alloy providing durability. Operating temperature ranges from -25°C to 85°C.

Contacts are gold plated bronze to ensure reliable conductivity. Rated for up to 2 amperes at 30 to 42 volts. The miniature connector size is suitable for compact installations. The connector orientation is straight, optimizing cable routing.

Termination is by solder, supporting secure wiring. Manufactured in Japan, ensuring high quality standards.

Suitable for use in Industrial, Electronics, Automation, and Power applications, this Hirose connector supports efficient and durable cable connections in challenging environments. Explore more Industrial Circular Connectors and electronic components on EnvMart for your project needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 2 amperes, making it suitable for low power signal and control applications.

It operates within a voltage range of 30 to 42 volts, allowing for versatile applications in various environments.

The connector features IP67 and IP68 ingress protection ratings, ensuring it is dust-tight and can withstand immersion in water.

The shell is made from zinc alloy, and the contacts are gold plated bronze, which enhances conductivity and corrosion resistance.

It can operate in temperatures ranging from -25°C to 85°C, suitable for various industrial applications.

The termination type for this connector is solder, providing a secure and permanent connection for wiring.

This connector has a straight orientation, which helps in optimizing cable routing in compact installations.

The LF13WBP-20S model features 20 female contacts, designed for reliable connectivity in industrial settings.

It utilizes a bayonet mating type, which ensures a secure and quick connection.

This model is classified as a miniature connector, making it suitable for installations where space is limited.

This connector is manufactured in Japan, ensuring adherence to high-quality engineering standards.

It is suitable for use in industrial, electronics, automation, and power applications, providing efficient cable connections in challenging environments.
