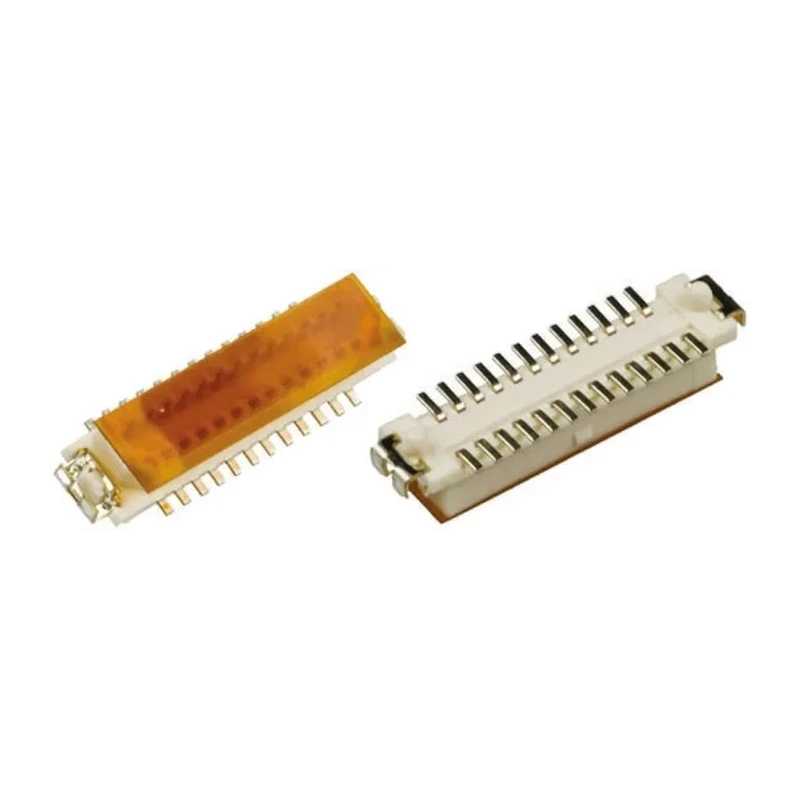

Hirose DF9 Series Straight Surface PCB Socket 41-Contact 2 Row 1 mm Pitch Solder DF9-41S-1V(69)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 150V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 500mA |
| Model | DF9-41S-1V(69) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | DF9 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 41 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact 1.0 mm pitch design complies with VESA FPDI-1 standard.
- Features trapezoidal shaped mating interface to prevent misinsertion.
- Easy lock mechanism provides secure connection with tactile feedback.
- Polyamide housing with gold-plated copper contacts ensures durability.
- Operating temperature range from -45°C to 125°C for harsh environments.
- Surface mount type designed for board-to-board applications.
- Metal fittings reduce solder joint peeling from mechanical stress.
- Mounting bosses hold connector in place during soldering or placement.
Product Description
Hirose DF9-41S-1V(69) is a high-quality straight surface PCB socket connector featuring 41 female contacts arranged in 2 rows with a 1 mm pitch. Designed to meet the VESA FPDI-1 standard, it ensures reliable board-to-board connections for LCD displays and other electronic applications.
The connector incorporates a trapezoidal shaped mating interface that effectively prevents misinsertion, along with an easy lock mechanism providing a secure connection with a tactile click confirmation. Manufactured with a durable polyamide housing and copper contacts plated in gold, this socket is engineered for long-lasting performance and corrosion resistance.
Its surface mount type facilitates efficient soldering onto PCBs, supported by metal fittings to prevent solder peeling caused by mechanical stress. The inclusion of mounting bosses aids in securing the connector during manual placement or soldering processes.
This PCB socket supports a current rating of 500 mA and an operating voltage of 150 V, withstanding temperature ranges from -45°C to 125°C, making it suitable for harsh environments. Applications include use in LCD displays for portable devices, point-of-sale terminals, measurement instruments, and other handheld equipment requiring compact, reliable connectors.
Compact 1.0 mm pitch design compliant with industry standards. Trapezoidal mating interface prevents misinsertion. Easy lock mechanism ensures secure and tactile mating. Polyamide housing with gold-plated copper contacts.
Mounting bosses assist in soldering and placement stability. Metal fittings reduce solder joint stress and peeling. Current rating of 500 mA and voltage rating of 150 V. Wide operating temperature range: -45°C to 125°C. Ideal for portable LCD displays and handheld electronic devices.
Surface mount board-to-board connector for reliable PCB attachment. Explore more connectors and PCB Sockets on EnvMart to meet your electronic components needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 500 mA.
The voltage rating for this PCB socket is 150 V.
It operates within a temperature range of -45°C to 125°C.
This socket features 41 female contacts arranged in 2 rows.
The pitch for this model is 1 mm.
It uses a solder termination type.
The housing is made from polyamide.
The contacts are made from copper and are gold-plated.
This connector has a straight orientation.
It is suitable for board-to-board applications, including use in LCD displays and handheld devices.
It features a trapezoidal shaped mating interface to effectively prevent misinsertion.
Yes, it includes mounting bosses that help secure the connector during soldering or placement.
