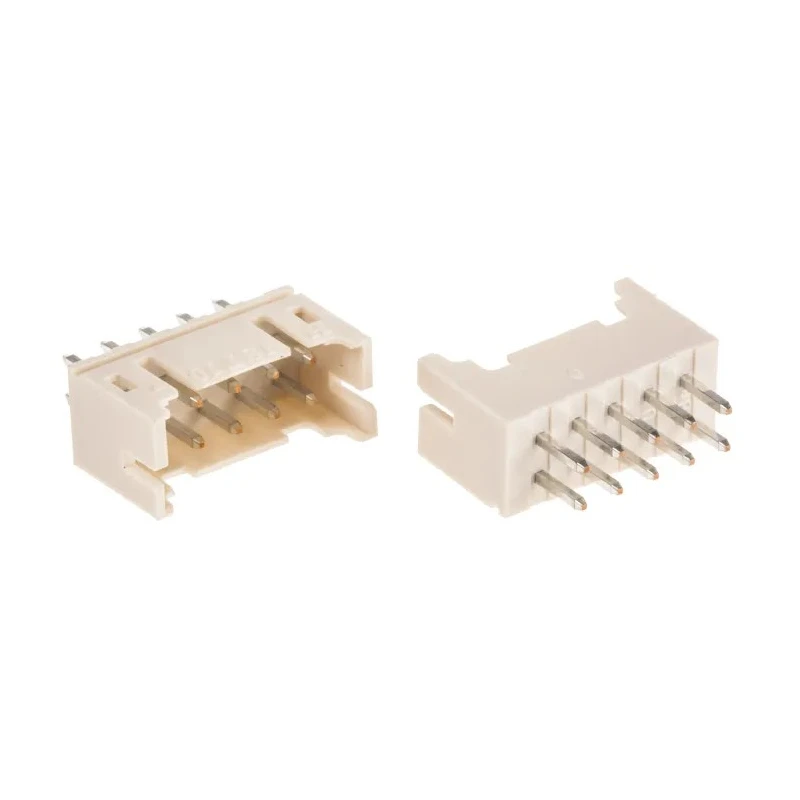

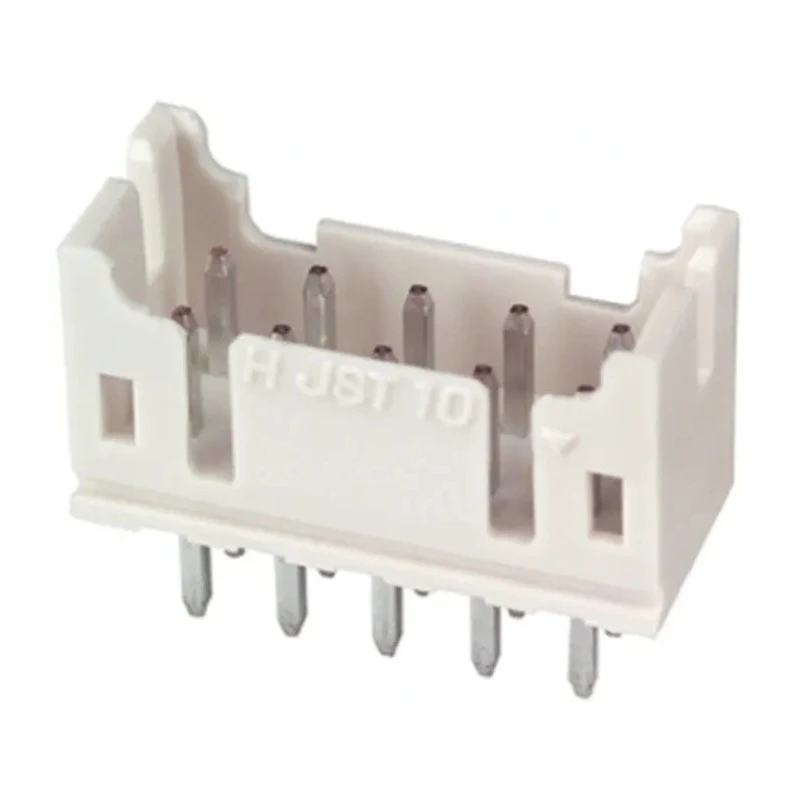

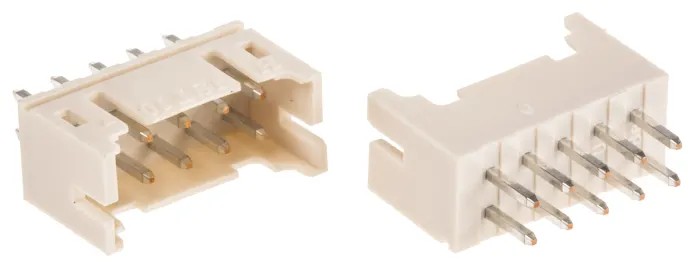

JST PHD Series Straight Through Hole PCB Header 10 Contact 2 mm Pitch 2 Row Shrouded B10B-PHDSS(LF)(SN)(P)

Free Delivery in India | Lowest Global Shipping Charges

JST PHD Series Straight Through Hole PCB Header 10 Contact 2 mm Pitch 2 Row Shrouded B10B-PHDSS(LF)(SN)(P)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B10B-PHDSS(LF)(SN)(P)
Mount Type	Through Hole
Housing Material	Glass Filled Nylon
Contact Material	Copper Alloy
Series	PHD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Compact 2.0 mm pitch PCB header for efficient space utilization.
Double row configuration with 10 male contacts ensures secure connections.
Shrouded housing prevents incorrect mating and contamination.
Housing made of glass filled nylon offering durability and high performance.
Contact material Copper Alloy with tin plating for reliable conductivity.
Through hole mount type for robust PCB attachment.
Operates safely between -25°C and 85°C temperature range.
Rated for 3A current and 250V voltage ensuring electrical reliability.

Product Description

JST B10B-PHDSS(LF)(SN)(P) PCB Header is a high-quality electronic component featuring a 2.0 mm pitch, 10 contact points in a double row arrangement, and a shrouded housing to prevent incorrect mating and contamination. This through hole mount header connector is designed for reliable wire-to-board connections in compact electrical designs.

The PCB header's glass filled nylon housing provides enhanced mechanical strength and electrical insulation while maintaining a low profile with just 8.8 mm height after mating, which is essential for high-density circuit board arrangements. Copper alloy contacts plated with tin offer excellent conductivity and resistance to corrosion.

Rated for 3A current and 250V voltage, this component delivers dependable performance within a wide operating temperature range of -25°C to 85°C, suitable for industrial, commercial, and consumer electronics applications.

The shrouded design of this PCB header prevents flux intrusion and contamination, enhancing durability and connection integrity in circuit assemblies. The male contact gender and solder termination provide a secure and long-lasting bond to the printed circuit board.

Manufactured in Malaysia, this JST PHD Series PCB Header connector meets the demand for modern high-density, low profile, and reliable electronic interconnection solutions. Compact 2.0 mm pitch PCB header for space-saving designs.

Double row with 10 male contacts for secure connections. Shrouded housing protects against mis-mating and contaminants. Durable glass filled nylon housing with tin plated copper alloy contacts. Through hole mount for firm PCB attachment and solder termination.

Wide temperature operating range from -25°C to 85°C. Rated for 3A current and 250V voltage ensuring electrical safety. Low profile height of 8.8 mm after mating suits dense PCB layouts. Male contact gender with high reliability in wire-to-board systems.

Product of Malaysia, assuring quality and standards.

These JST PCB Headers are widely used in Electronic, Industrial, Automotive, and Telecommunication sectors for creating reliable and compact PCB interconnections. For more quality PCB Headers, browse the Electronics Components category at EnvMart.
