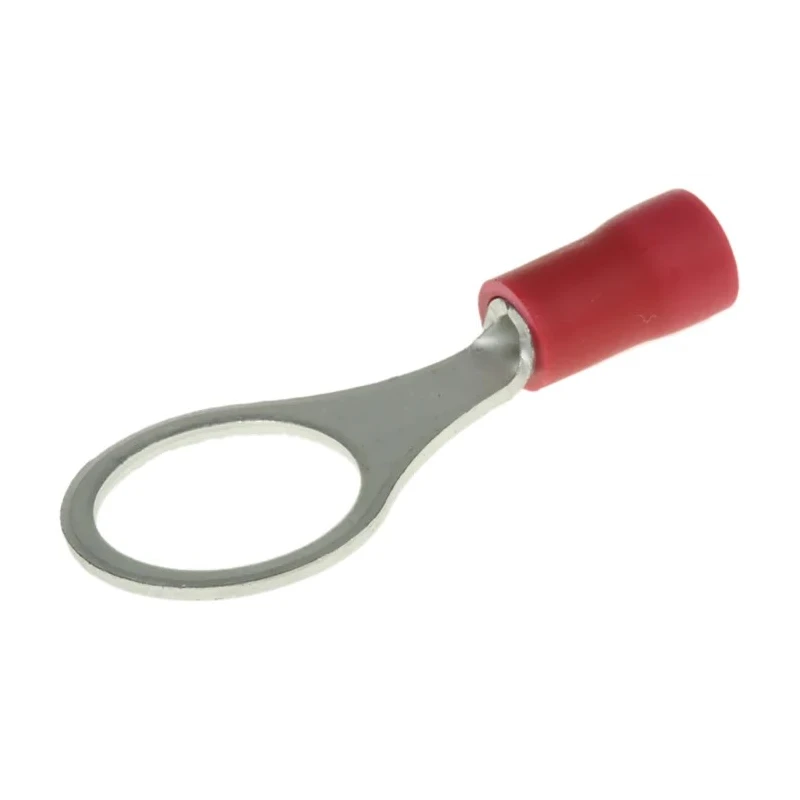

JST FV Insulated Ring Terminal M10 Stud Size 22 AWG to 16 AWG Wire, Vinyl Insulation, Red FVWS1.25-10(LF)

Free Delivery in India | Lowest Global Shipping Charges

JST FV Insulated Ring Terminal M10 Stud Size 22 AWG to 16 AWG Wire, Vinyl Insulation, Red FVWS1.25-10(LF)



Category Ring Terminal Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Colour	Red
THICKNESS	0.8mm
Model	FVWS1.25-10(LF)
Insulation	Insulated
Overall Length	29.7mm
Series	FV
Insulation Material	Vinyl
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Outer Ring Diameter	13.6mm
Inner Ring Diameter	10.5mm
Stud Size	M10
JST, FV Insulated Ring Terminal, M10 Stud Size 22 AWG 16 AWG Wire Size, RedBrand	JST

Key Features

The ring terminal features vinyl insulation providing electrical isolation and flame resistance.
Made of oxygen free copper for excellent electrical conductivity.
Overall length of 29.7 mm with a thickness of 0.8 mm ensuring durability.
The red color coding aids easy identification of wire size.
Suitable for reliable crimping and high-temperature resistance up to 105°C.
Flared entry design facilitates easy wire insertion and crimping.
Vinyl insulation material provides robust protection and insulation quality.
Ideal for electronics, power connectors, and industrial electrical wiring applications.

Product Description

JST FVWS1.25-10(LF) is a high-quality insulated ring terminal designed specifically for M10 studs and wire sizes ranging from 22 AWG to 16 AWG. Featuring a vinyl insulation that is flared for better wire insertion, this red-colored ring terminal provides excellent electrical insulation and flame resistance, rated for use at temperatures up to 105°C.

Manufactured from oxygen free copper, it offers superior electrical conductivity and high-strength brazing, making it suitable for demanding industrial and electrical applications including electronic component assembly, power connections, and control panel wiring.

The ring terminal has an outer ring diameter of 13.6 mm, an inner ring diameter of 10.5 mm, and an overall length of 29.7 mm with a 0.8 mm thickness, ensuring mechanical robustness along with easy and secure crimping.

Its vinyl insulation ensures protection against electrical shorts, mechanical abrasion, and environmental exposure. The red insulation color indicates its wire size compatibility for quick identification and compliance with wiring standards.

This product is ideal for industrial, manufacturing, electrical, and electronic systems requiring reliable electrical connections with insulating protection. The terminal's flared vinyl insulation enables efficient crimping and wire retention.

Oxygen free copper provides excellent conductivity and long-term reliability. Designed for wire sizes 22 AWG to 16 AWG and M10 studs ensuring broad compatibility. High-temperature resistance up to 105°C suits demanding operational environments.

Red vinyl insulation enhances visibility and categorization in wiring setups. Country of origin is Japan, and the product condition is New. This insulated ring terminal supports electrical wiring standards for consistent, safe, and durable connections.
