Sonitron Piezoelectric Miniature Speaker 88 dB 700 Hz 20 nF 8 kHz 5 V to 30 V Pk-Pk 9.7 mm SCS-17-P10

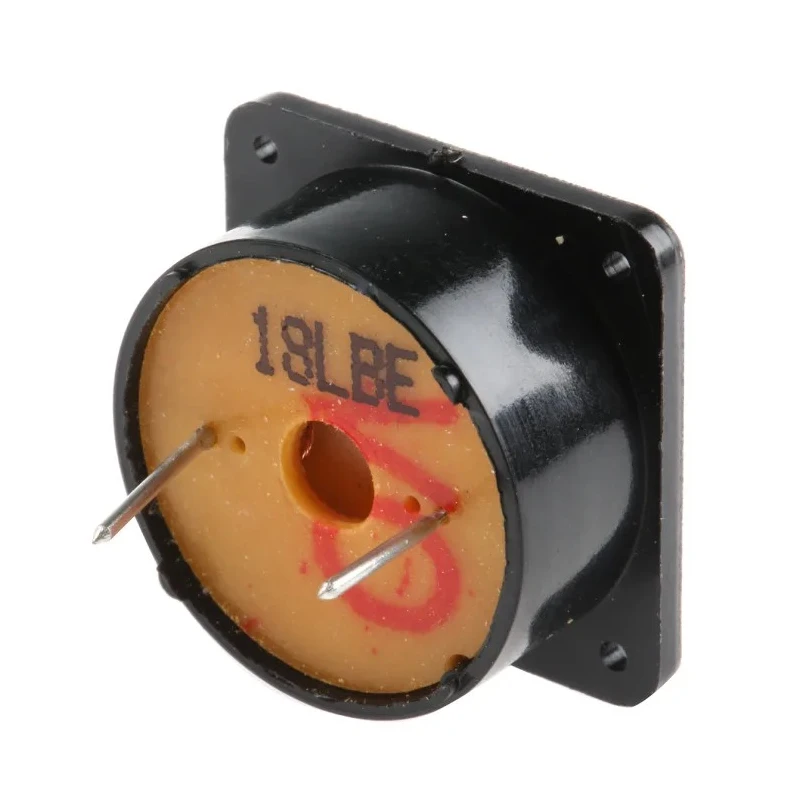

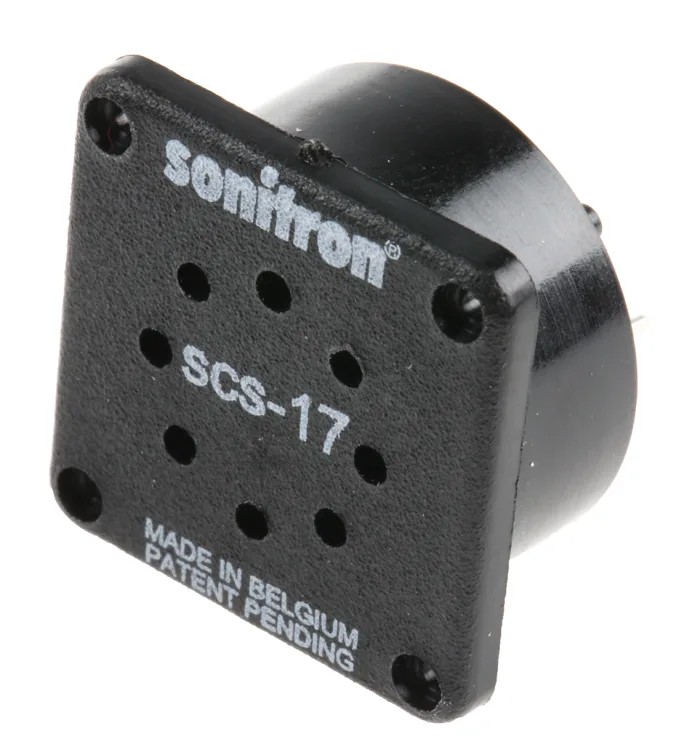

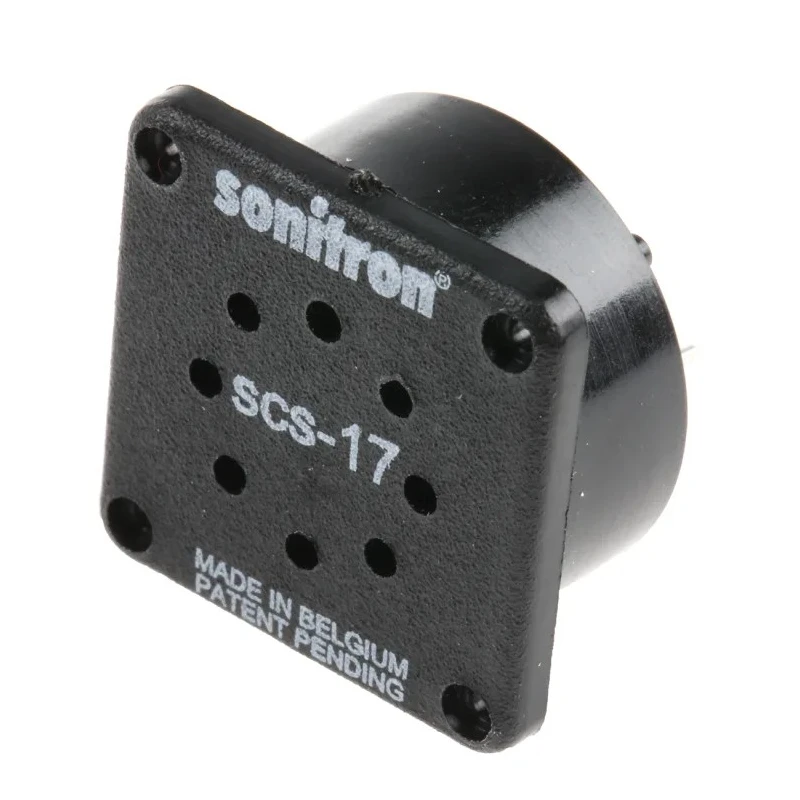

Sonitron SCS-17-P10 is a piezoelectric miniature speaker designed for precise audio signaling in diverse electronic applications. This speaker features a compact circular flanged casing with PCB pin terminals, optimized for mounting on printed circuit boards.

It delivers a high sound level output of 88 dB at a frequency of 700 Hz, with a maximum frequency capability of 8 kHz. The device operates effectively within a voltage range of 5 V peak-to-peak to 30 V peak-to-peak, enabling compatibility with various circuit requirements.

The speaker's capacitance is rated at 20 nF, essential for piezoelectric functionality, and it maintains operation under temperatures ranging from -20°C to 60°C, making it suitable for moderate industrial and commercial environments.

Physical characteristics include a diameter and length of 18.6 mm each, a height of 9.7 mm, and a lead length of 5.8 mm, facilitating compact and secure integration. This product is RoHS compliant, ensuring adherence to environmental safety standards, and is manufactured in Belgium, known for stringent quality controls.

Operates within a frequency range of 700 Hz to 8 kHz. Capacitance rating is 20 nF suitable for piezoelectric applications. Maximum operating voltage is 30 V peak-to-peak and minimum voltage is 5 V peak-to-peak. Compact circular case with flanged mounting and PCB pin terminals for easy installation.

Operating temperature range from -20°C to 60°C ensures durability in various environments. Lead length measures 5.8 mm with overall height of 9.7 mm and diameter of 18.6 mm. RoHS compliant and manufactured in Belgium ensuring quality and environmental standards.

Ideal for usage in industrial, electronic manufacturing, robotics, telecommunications, and consumer electronics where reliable audio feedback and signaling are critical. This miniature speaker offers a combination of compact size, high acoustic output, and robust design.
