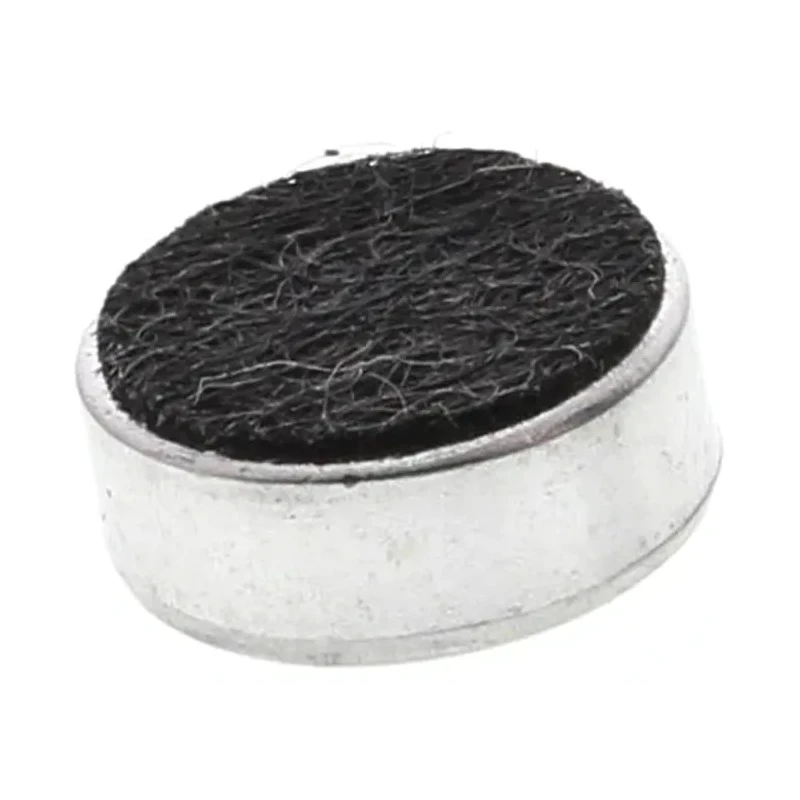

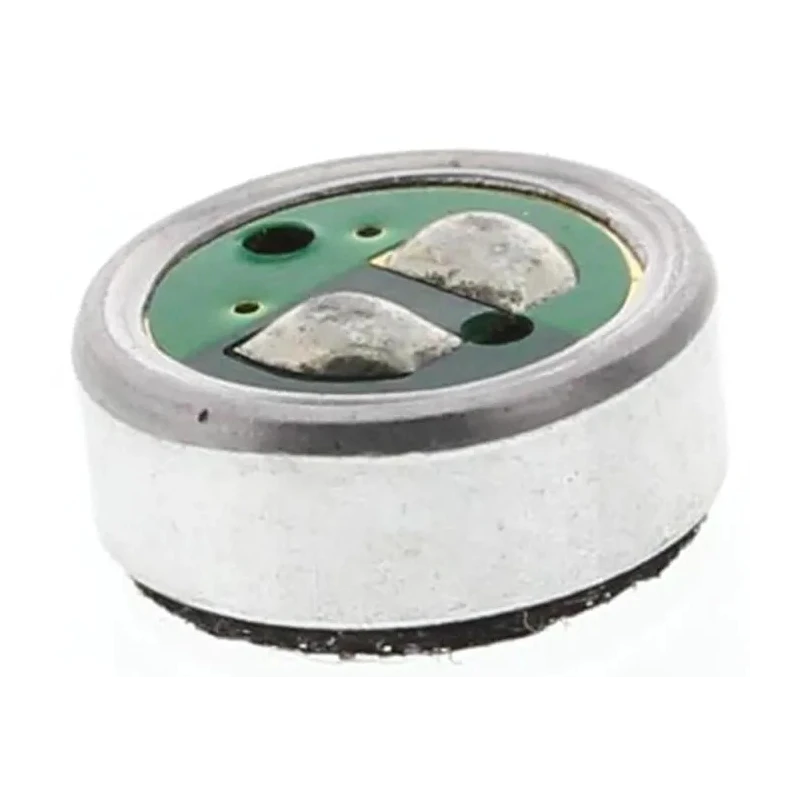

RS PRO Surface Mount 6 mm Electret Microphone Condenser -44dB Sensitivity 2V Operating Voltage 724-3144

RS PRO 724-3144 is a surface mount electret microphone condenser with a 6 mm diameter, engineered for precision audio capture in electronic assemblies. This microphone offers a sensitivity of -44 dB, providing accurate sound detection suitable for various electronic applications. It operates at a standard voltage of 2V, enabling compatibility with low-power devices and ensuring efficient performance with minimal power draw.

The microphone has an output impedance of 2.2 kΩ, making it suitable for diverse audio signal processing circuits. It features a signal to noise ratio of 58 dB, which ensures audio clarity by minimizing background noise. This device supports a wide frequency range from 50 Hz to 16 kHz, capable of capturing a comprehensive audio spectrum needed in sensitive audio designs.

Designed for robust operation, the microphone can function in environments ranging from -20°C to 60°C, making it reliable under varying thermal conditions. Its solder pad termination style allows secure surface mounting on printed circuit boards, facilitating straightforward integration in electronic devices. The microphone’s compact height of 2.2 mm fits seamlessly into slim-profile applications, optimizing space usage.

The supply current is 500 μA, indicating efficient energy consumption which extends battery life in portable electronics. Compliance with RoHS standards confirms the device is manufactured with environmentally safe materials and processes.

This microphone condenser is ideal for industrial electronics, laboratory instruments, telecommunications, and consumer electronic products requiring precise sound capture and low-noise audio input. Its small form factor and robust electrical characteristics support a wide range of professional, laboratory, and industrial applications.

Electret condenser microphone with a 6 mm diameter suitable for surface mount applications. Operates at standard voltage of 2V ensuring low power consumption. Delivers an output impedance of 2.2 kΩ for compatible audio circuits.

Features a signal to noise ratio of 58 dB for clear sound detection. Supports a frequency range from 50 Hz to 16 kHz for broad audio spectrum capture. Designed for operating temperatures from -20°C up to 60°C for diverse environments.

Equipped with solder pad termination style enabling reliable PCB attachment. Compact height of 2.2 mm fits low-profile electronic designs. Consumes a supply current of 500 μA minimizing energy usage in circuits. RoHS compliant ensuring adherence to environmental safety standards.
