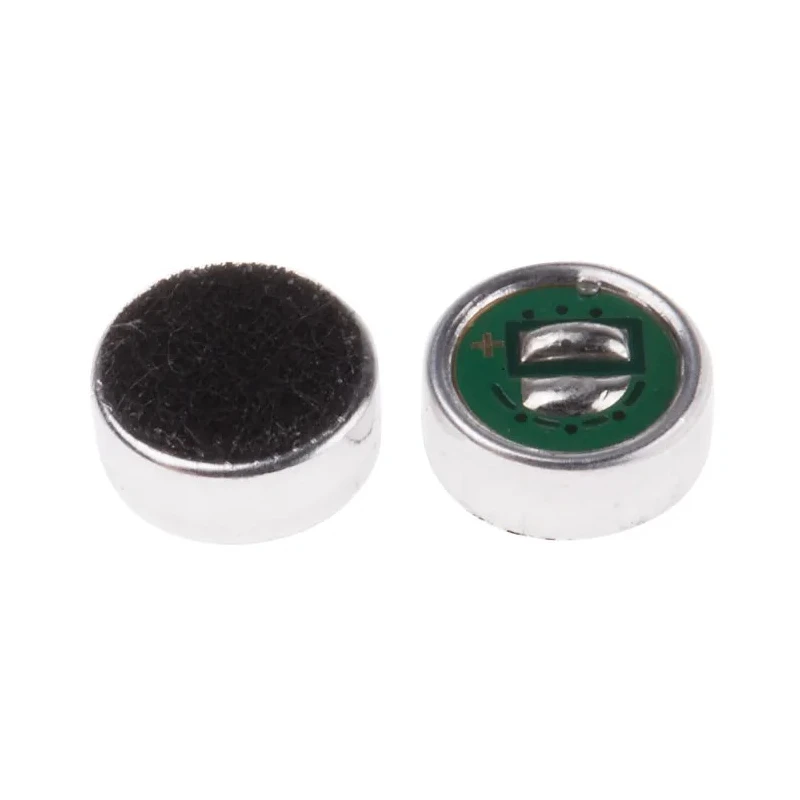

RS PRO Omni-Directional Surface Mount Electret Condenser Microphone 6 mm Diameter -40dB 724-3128

RS PRO model 724-3128 is an omni-directional surface mount electret condenser microphone designed for accurate sound acquisition in industrial, electronic component assembly, audio device manufacturing, and laboratory measurement applications. The microphone features a 6 mm diameter capsule with an operating frequency range of 50 Hz to 16 kHz, ideal for capturing a broad spectrum of audio signals with clarity.

This microphone operates at a standard voltage of 2V and has a low output impedance of 2.2 kΩ, allowing it to easily integrate into various electronic designs. Its -40 dB sensitivity combined with a 60 dB signal to noise ratio ensures high-fidelity sound input with minimal interference. The microphone's compact size, measuring 6 mm in diameter and 2.2 mm in height, allows for space-efficient mounting on printed circuit boards using solder pad terminations.

Engineered to withstand operating temperatures from -20°C up to 70°C, the 724-3128 microphone delivers reliable performance in diverse environmental conditions. With a supply current of only 500 μA, it supports low-power applications without compromising acoustic quality. This component is manufactured in China, complying with standard industrial manufacturing practices.

Applications include integration in audio recording devices, communication equipment, sensor systems, and electronic circuit designs requiring sensitive yet robust audio transducers. RS PRO's 724-3128 microphone is part of a comprehensive range of condenser microphone components suited for industrial electronics and electronics assembly.

Omni-directional design ensures uniform sound pickup from all directions. Surface mount type is suitable for SMT and PCB applications. Operates at a standard voltage of 2V with low output impedance of 2.2 kΩ. Wide frequency response from 50 Hz to 16 kHz for clear audio capture.

Signal to noise ratio of 60 dB delivers a clean audio signal with minimal noise. Compact dimensions: 6 mm diameter and 2.2 mm height enable flexible installation. Designed to operate reliably between -20°C to 70°C ambient temperatures.

Termination style uses solder pads for secure PCB mounting. Supply current requirement of only 500 μA ensures low power consumption. Manufactured in China for quality and consistency. Explore more RS PRO condenser microphone components and related electronic parts on EnvMart for your industrial, laboratory, and commercial electronic assembly needs.
