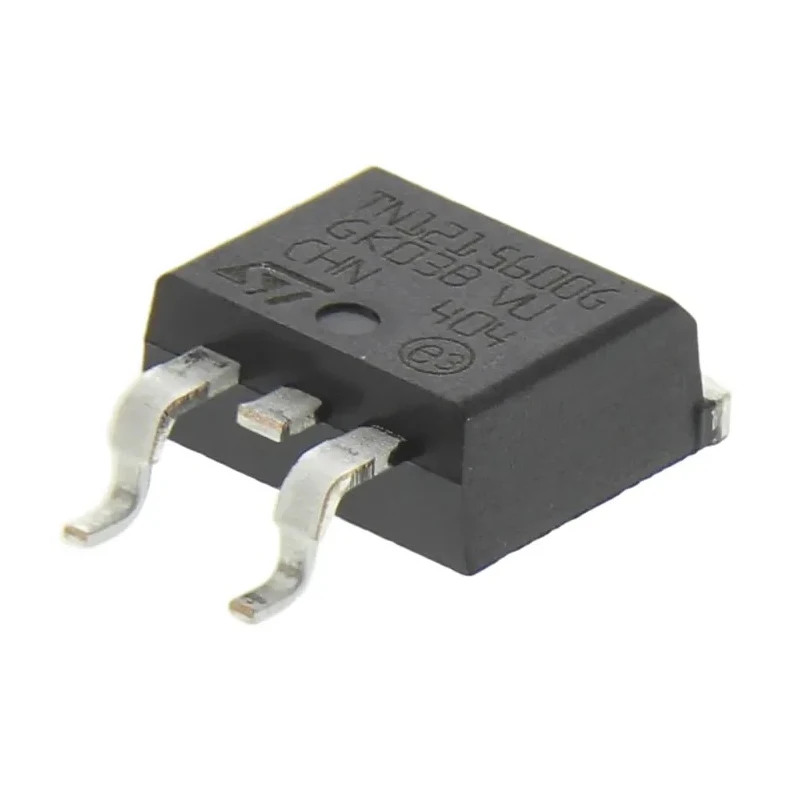

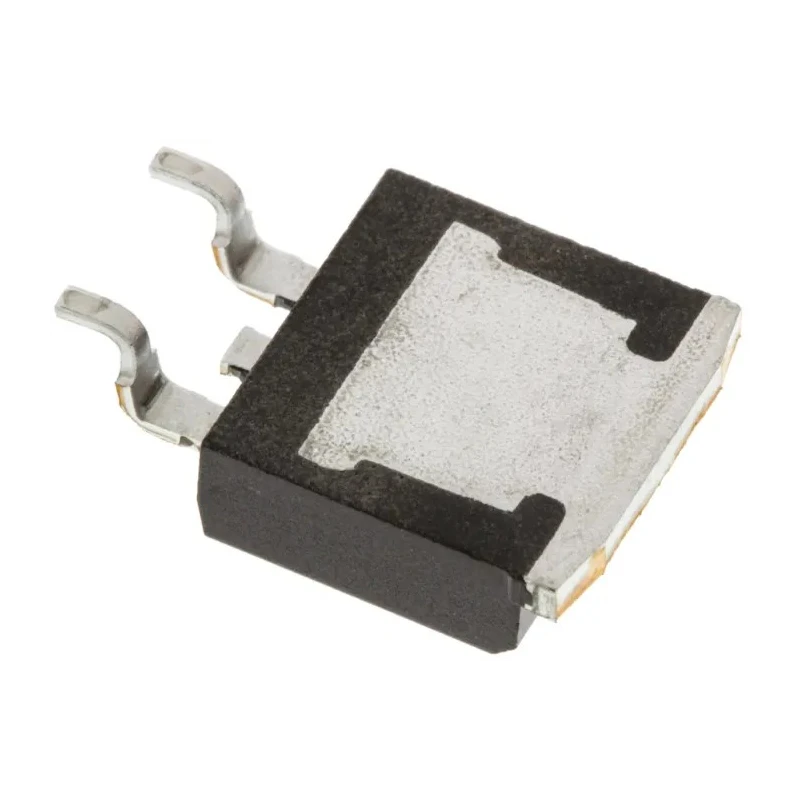

STMicroelectronics Thyristor SCR TO-263 Package 1000 V 12 A TN1215-600G-TR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Thyristor SCR TO-263 Package 1000 V 12 A TN1215-600G-TR

Name: STMicroelectronics Thyristor SCR TO-263 Package 1000 V 12 A TN1215-600G-TR
Brand: STMicroelectronics
SKU: 211861
Price: 1.03 USD
Availability: InStock



Category Thyristor Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	TN1215-600G-TR
Mount Type	Surface, Through Hole
Maximum Operating Temperature	125°C
Package Type	TO-263
Minimum Operating Temperature	-40°C
Standards/Approvals	V0, Epoxy meets UL94
Pin Count	3
Rated Average On-State Current Irms	12A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	1000V
Surge Current Rating	145A
Maximum Gate Trigger Current Igt	15mA
Maximum Holding Current Ih	40mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak On-State Voltage	1.6V
Repetitive Peak Off-State Current	0.005mA

Key Features

Rated average on-state current of 12 amperes ensures efficient conduction.
Repetitive peak reverse voltage up to 1000 volts for high voltage tolerance.
Surge current rating of 145 amperes suitable for transient loads.
Surface and through-hole mounting options with TO-263 package.
Maximum gate trigger current of 15 milliamperes for sensitive triggering.
Wide operating temperature range from minus 40 to 125 degrees Celsius for robust performance.
Low peak on-state voltage of 1.6 volts reduces power loss during conduction.
Compliance with V0 epoxy standard meeting UL94 for safety.

Product Description

STMicroelectronics TN1215-600G-TR is a silicon controlled rectifier (SCR) thyristor designed for robust power switching and control. Featuring a repetitive peak reverse voltage of 1000 V and an average on-state current rating of 12 A, it meets demands for high reliability in industrial and electronic applications.

The device is housed in a TO-263 package suitable for surface-mount and through-hole PCB assembly, offering versatility in mounting options. Its surge current rating of 145 A enables it to handle short transient overload currents efficiently.

With a maximum gate trigger current of 15 mA and a low peak on-state voltage of 1.6 V, the TN1215-600G-TR ensures precise and efficient control of power flow. The operating temperature range of -40°C to 125°C allows use in harsh environmental conditions.

The epoxy encapsulation meets the V0 flammability rating as per UL94 standards, providing safety for electronic assemblies. The three-pin configuration simplifies integration into a variety of power electronics circuits.

Rated average on-state current of 12 amperes ensures efficient conduction. Repetitive peak reverse voltage of 1000 V for high voltage tolerance. Surge current rating of 145 amperes suitable for transient loads. Surface and through-hole mounting options in TO-263 package.

Maximum gate trigger current of 15 mA for sensitive triggering. Wide operating temperature range from -40°C to 125°C for reliable use. Low peak on-state voltage of 1.6 V reduces power dissipation. Epoxy encapsulation meeting V0 UL94 flame resistance standard.

Three-pin device for easy circuit integration.

This thyristor is ideal for use in industrial power control, motor drives, heater controls, and other switching applications requiring durable and efficient semiconductor devices. Its specifications align well with applications in automation, power supply regulation, and general electronics manufacturing.
