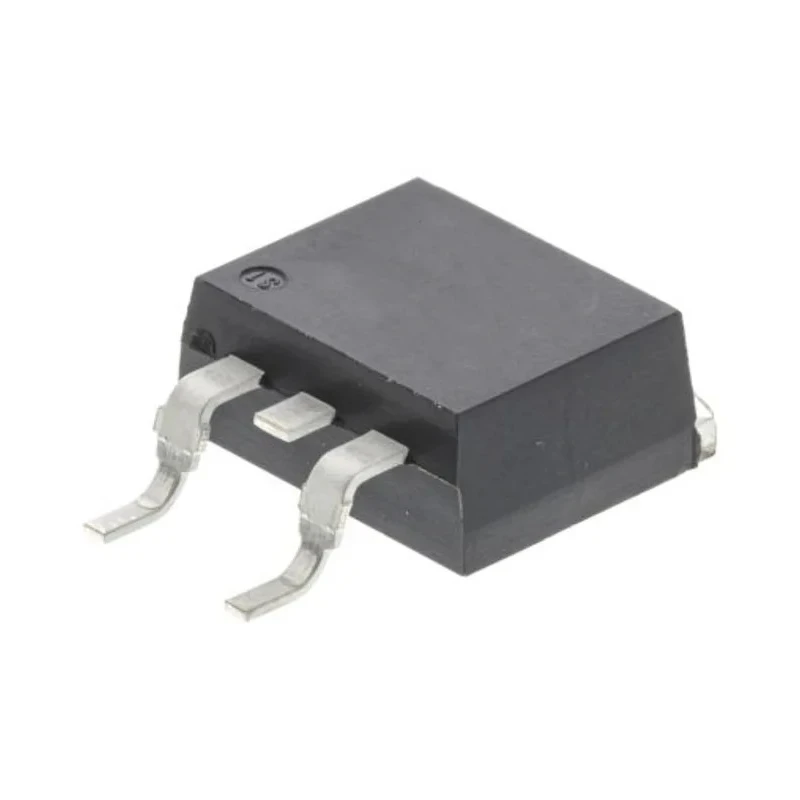

STMicroelectronics Thyristor SCR, Surface Mount, 600 V Peak Reverse Voltage, 30 A Rated Average On-State Current TN5015H-6G

STMicroelectronics TN5015H-6G is a high-performance surface-mount thyristor (SCR) designed for robust industrial, automotive, and consumer electronics applications. Featuring a TO-263 package, it supports compact SMD designs and back-to-back configurations enabling flexible circuit implementations.

The device operates with a peak reverse voltage (VDRM) of 600 V and a surge current rating of 493 A, ensuring reliable operation during transient conditions. Its rated average on-state current (Irms) is 30 A, suitable for controlling substantial power loads.

The gate trigger current (Igt) is low at 15 mA, facilitating efficient switching control circuits while maintaining high noise immunity with a dv/dt rating of 500 V/μs. This attribute enhances performance in noisy electrical environments such as motor drives and power tools.

The thyristor supports operation over a wide temperature range from -40°C to 150°C, allowing deployment in demanding thermal environments. Its maximum gate trigger voltage is 1.3 V and it features a holding current of 60 mA, enabling precise and stable switching operation.

This device is well suited for applications such as voltage regulation in motorbikes and industrial drives, overvoltage crowbar protection circuits, motor control in power tools and kitchen appliances, and inrush current limiting circuits. Its surface mount package and 3-pin configuration make it ideal for automated PCB assembly and compact designs.

TO-263 package for surface mount applications. High surge current rating of 493 A supports transient robustness. Low gate trigger current of 15 mA for efficient triggering. Wide operating temperature range from -40°C to 150°C.

High noise immunity with dv/dt of 500 V/μs suitable for industrial uses. Rated average on-state current of 30 A. Peak off-state voltage of 600 V for reliable blocking voltage. Compact 3-pin design optimized for modern electronics.

Originating from China and classified as new condition, the STMicroelectronics TN5015H-6G Thyristor is an essential discrete semiconductor for power control and regulation in various industrial and consumer electronic sectors. Discover a wide range of semiconductor devices and power electronic components in EnvMart.
