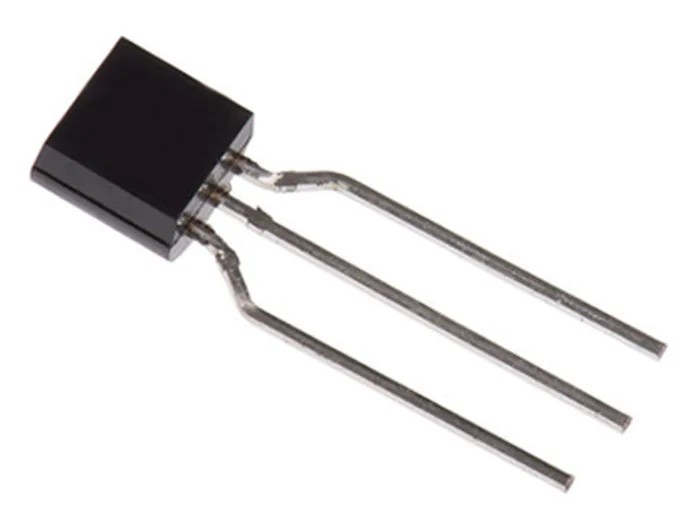

STMicroelectronics Linear Voltage Regulator 35V 100mA TO-92 3-Pin L78L12ABZ-AP
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics L78L12ABZ-AP, Voltage Regulator 35V TO-92 3-Pin RS |
| Brand | STMicroelectronics |
| Height | 4.95mm |
| Length | 4.95mm |
| Model | L78L12ABZ-AP |
| Width | 3.94mm |
| Mount Type | Through Hole |
| Series | L78Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 6.5mA |
| Pin Count | 3 |
Key Features
- This linear voltage regulator features a maximum operating temperature of 125 degrees Celsius.
- It utilizes a three-terminal positive regulator configuration with internal current limiting and thermal shutdown for enhanced reliability.
- The device operates with a quiescent current of 6.5mA, optimizing power efficiency in circuits.
- The TO-92 through-hole package measures 4.95mm in length, 4.95mm in height, and 3.94mm in width for compact PCB integration.
- Designed for positive polarity applications, it is suitable for various power management needs in electronics.
Product Description
STMicroelectronics L78L12ABZ-AP is a linear three-terminal positive voltage regulator designed for reliable power regulation in electronic circuits. It supports input voltages up to 35V and delivers a maximum output current of 100mA. Featuring internal current limiting and thermal shutdown protection, this regulator ensures stable operation in demanding conditions.
The device is housed in a TO-92 3-pin through-hole package, ideal for easy PCB mounting and compact system designs. Measuring 4.95mm by 4.95mm by 3.94mm, it integrates well into space-constrained applications. Its positive polarity configuration and quiescent current of 6.5mA make it suitable for power-sensitive projects.
Operating with a maximum case temperature of 125°C, the L78L12ABZ-AP can withstand harsh industrial, automotive (non-standard), and laboratory environments. The regulator's linear design provides low noise output voltage, making it apt for precision instrumentation and power management IC solutions.
Applications include industrial systems, power supplies, consumer electronics, automation equipment, and embedded system voltage regulation. The device complies with general semiconductor standards but does not hold specific automotive or industry certifications.
The package contains one STMicroelectronics L78L12ABZ-AP voltage regulator component. This product supports through-hole mounting techniques and positive polarity power management tasks requiring stable 12V regulated output from higher DC voltages.
This linear voltage regulator features a maximum operating temperature of 125 degrees Celsius. It utilizes a three-terminal positive regulator configuration with internal current limiting and thermal shutdown for enhanced reliability.
The device operates with a quiescent current of 6.5mA, optimizing power efficiency in circuits. The TO-92 through-hole package measures 4.95mm in length, 4.95mm in height, and 3.94mm in width for compact PCB integration.
Designed for positive polarity applications, it is suitable for various power management needs in electronics. Explore more power management ICs and Voltage Regulators at EnvMart for your industrial and electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this voltage regulator is 35V.
It delivers a maximum output current of 100mA.
The quiescent current for this model is 6.5mA, optimizing power efficiency in circuits.
The TO-92 package measures 4.95mm in length, 4.95mm in height, and 3.94mm in width.
The maximum operating temperature is 125 degrees Celsius.
This model supports through-hole mounting techniques.
It is designed for positive polarity applications.
This voltage regulator belongs to the L78Lxx series.
It features internal current limiting and thermal shutdown protection for enhanced reliability.
It is suitable for various applications including industrial systems, power supplies, consumer electronics, and embedded system voltage regulation.
This voltage regulator has a pin count of 3.
The country of origin for this product is India.
