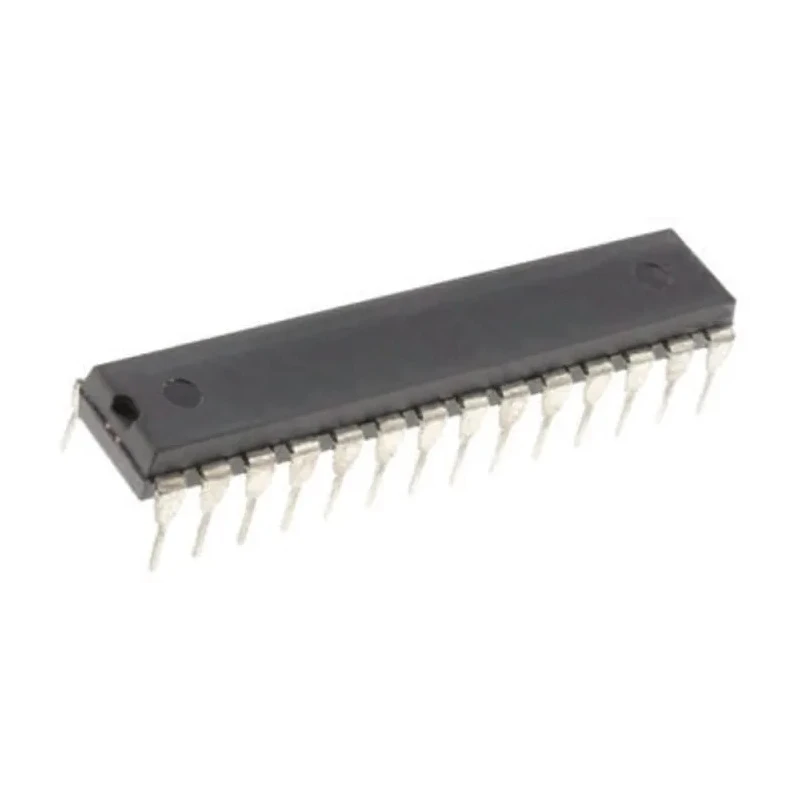

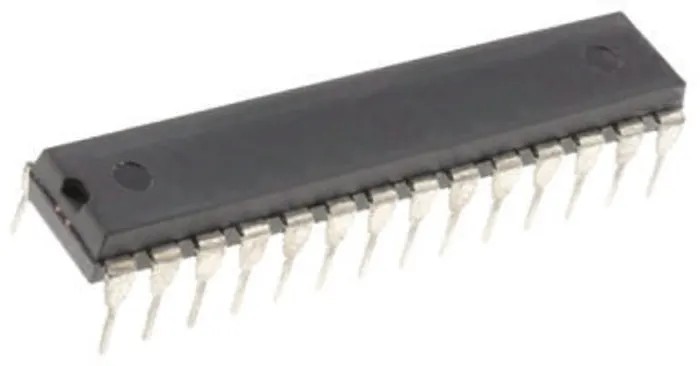

Microchip 8 bit PIC16C7X Microcontroller 20 MHz 7kB EPROM 28-Pin SPDIP PIC16C73A-04/SP

Microchip PIC16C73A-04/SP is an 8 bit PIC microcontroller from the PIC16C7X series, designed with a RISC instruction set and capable of operating at a maximum clock frequency of 20 MHz. Featuring 7kB EPROM program memory and 192-bit RAM, this microcontroller supports embedded system designs requiring efficient control and processing capabilities.

It offers 22 programmable I/O pins and 5 channels of 8-bit analogue-to-digital converters along with 2 analogue comparators, making it suitable for mixed signal applications. The device supports through-hole mounting in a 28-pin SPDIP package with compact dimensions of 35.18 mm length, 7.49 mm width, and 3.556 mm height.

Designed to operate between 2V and 5.5V supply voltages, the PIC16C73A-04/SP has a maximum power dissipation of 1 watt and can reliably work in ambient temperatures from 0°C to 70°C. It features three timers, including one 16-bit timer, and communication modules such as synchronous serial port (SPI, I2C) and USART for serial data exchange. Additional onboard features include Watchdog Timer, Power-on Reset, power-up timer, oscillator start-up timer, and brown-out reset.

The device includes 35 14-bit instructions and an 8 level hardware stack for program management. Its architecture enables up to 5 million instructions per second (MIPS) performance for embedded control tasks. In-circuit serial programming (ICSP) supports convenient programming and prototyping.

Compliance with ISO 9001 automotive standard demonstrates quality and reliability. The microcontroller is ideal for industrial, automotive, laboratory, and consumer embedded applications. Package contains one microcontroller chip in 28-pin SPDIP form factor.
