TE Connectivity EI Series Straight Through Hole PCB Header, 8 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 171825-8

Free Delivery in India | Lowest Global Shipping Charges

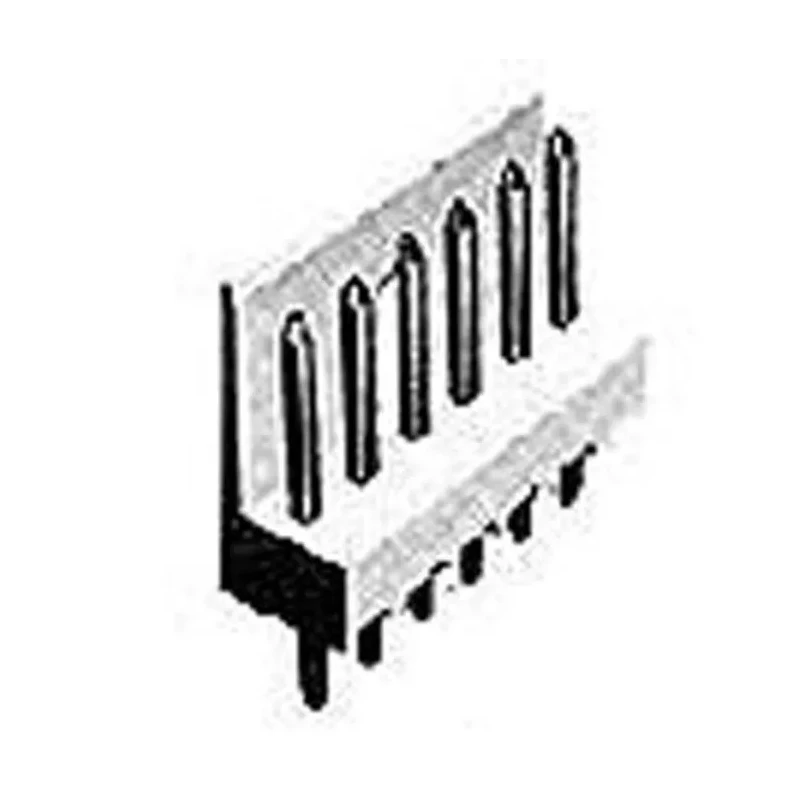

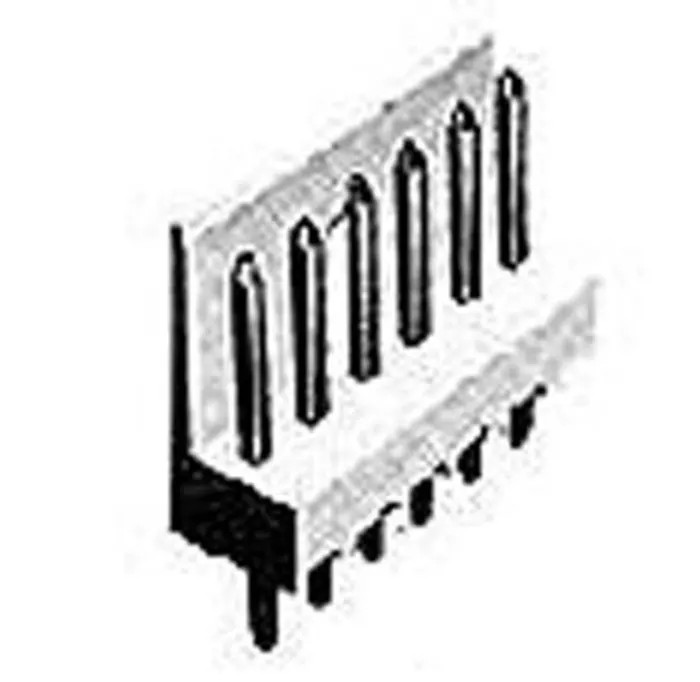

TE Connectivity EI Series Straight Through Hole PCB Header, 8 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 171825-8

Name: TE Connectivity EI Series Straight Through Hole PCB Header, 8 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 171825-8
Brand: TE Connectivity
SKU: 211107
Price: 1.07 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	3.5A
Model	171825-8
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	EI
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Constructed with a nylon housing for durability and insulation.
Features 8 male contacts with brass contact material plated with tin for reliable conductivity.
Designed for through-hole mounting with wire-to-board connector system.
Supports a maximum current of 3.5A and operating voltage of 250V.
Operates reliably from -65°C to 105°C temperature range.
Offers a pin contact type with square shape contact design for secure connections.
Termination type is solder, ensuring stable board mounting.
Partially shrouded for protection against mechanical damage.

Product Description

TE Connectivity 171825-8 PCB Header is a precision-engineered straight through hole PCB connector designed for reliable wire-to-board applications. It features a robust nylon housing that offers excellent mechanical strength and electrical insulation, combined with brass contacts plated with tin for optimal conductivity and corrosion resistance.

This single row header has 8 contacts spaced at a 2.5 mm pitch, suitable for compact circuit board layouts requiring secure connections. The male square contact pins ensure reliable engagement and solder termination provides stable mounting to the PCB.

Operating effectively within a temperature range of -65°C to 105°C and supporting a maximum current rating of 3.5A with an operating voltage of 250V, it is suitable for various industrial, commercial, and electronic applications requiring robust electrical connections on printed circuit boards.

The connector system is wire-to-board with through hole mounting, offering excellent mechanical retention and electrical performance. The shrouded design protects contacts from damage and prevents misalignment during mating.

TE Connectivity's EI Series PCB Header 171825-8 supports a wide range of industrial uses including electronic assemblies, automation equipment, instrumentation, and control systems, ensuring long-lasting and dependable performance in demanding environments.

Constructed with durable nylon housing for electrical insulation. 8 brass contacts with tin plating for reliable signal transmission. Single row, 2.5 mm pitch male square pins. Through hole mount type with solder termination.

Current rating of 3.5A and voltage rating of 250V AC/DC. Operating temperature range from -65°C to 105°C. Partially shrouded design protects contacts. Wire-to-board connector system ensures secure connections. Ideal for electronics, automation, and industrial applications.
