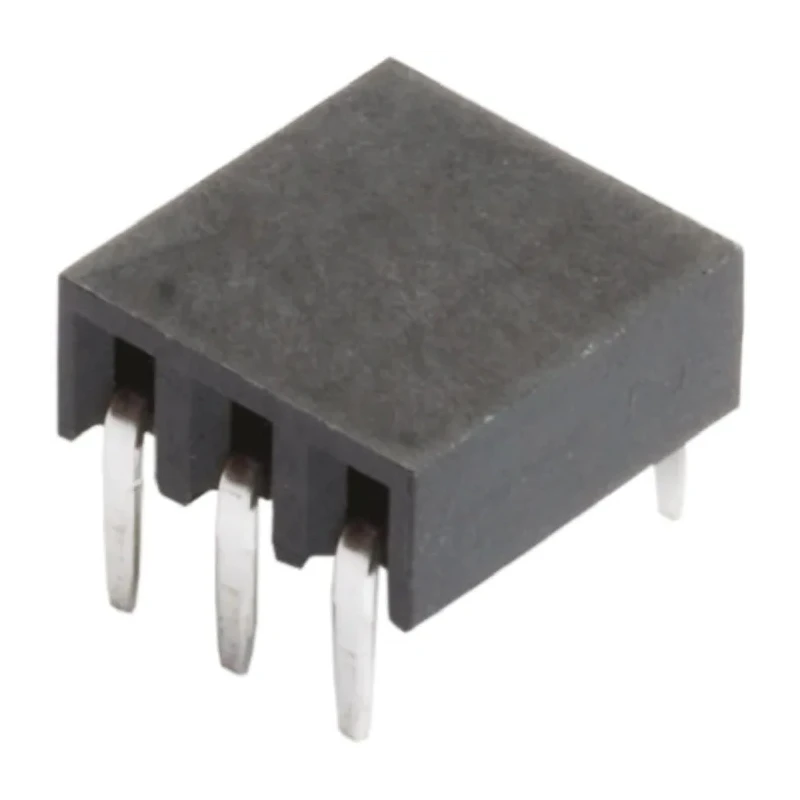

HARWIN M20 Series Right Angle Through Hole PCB Socket 3-Contact 1 Row 2.54 mm Pitch M20-7890346

HARWIN M20-7890346 Right Angle Through Hole PCB Socket is a high-quality component designed for board-to-board electrical connections requiring a 2.54 mm pitch and 3 contacts in a single-row configuration. Its right angle orientation facilitates efficient PCB layout designs, perfectly suited for compact electronics manufacturing.

The socket's housing is crafted from UL94V-0 rated high temperature nylon material, providing excellent thermal resistance and mechanical stability. The contacts are made of bronze with a tin over nickel plating, ensuring excellent conductivity and corrosion resistance.

With a current rating of up to 12A per contact, these sockets support robust electrical performance even under demanding industrial applications. The product withstands operating temperatures from -40°C up to 105°C, making it reliable across a broad range of environments.

The dual beam contact design improves electrical connection consistency and durability, allowing up to 300 mating cycles. These features make the M20 Series socket well-suited for use in consumer electronics, communication equipment, embedded PCs, industrial monitoring, personal computing, and control systems.

This PCB socket has 3 contacts arranged in a single row. The 2.54 mm pitch is standard for board-to-board connections. It features a right angle orientation for compact PCB mounting. Constructed with a durable nylon housing and bronze contacts plated with tin over nickel.

Rated for 12A current with high temperature tolerance from -40°C to 105°C. Designed with dual beam contacts ensuring reliable electrical connection. The termination type is solder, compatible with through-hole PCB mounting.

These sockets withstand up to 300 mating operations for durability. RoHS compliant, suitable for industrial and electronic applications. Compact M20 series design supports increased PCB density and height restrictions.

This PCB socket is an industry-standard component widely used in industrial, electronic, communication, and computing equipment manufacturing. It enables compact yet reliable electrical connections vital for modern device performance and longevity.
