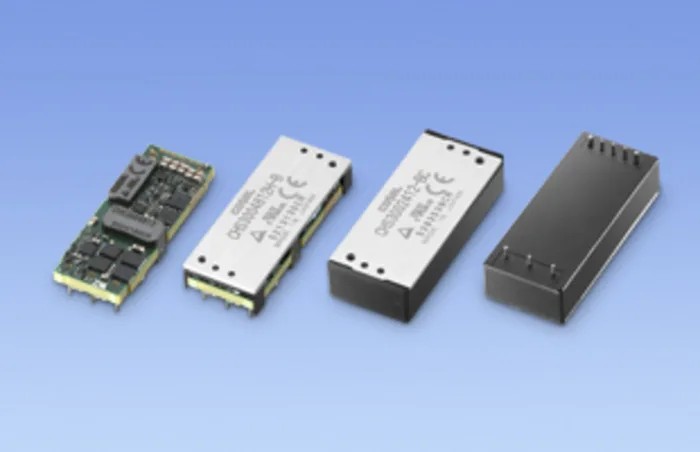

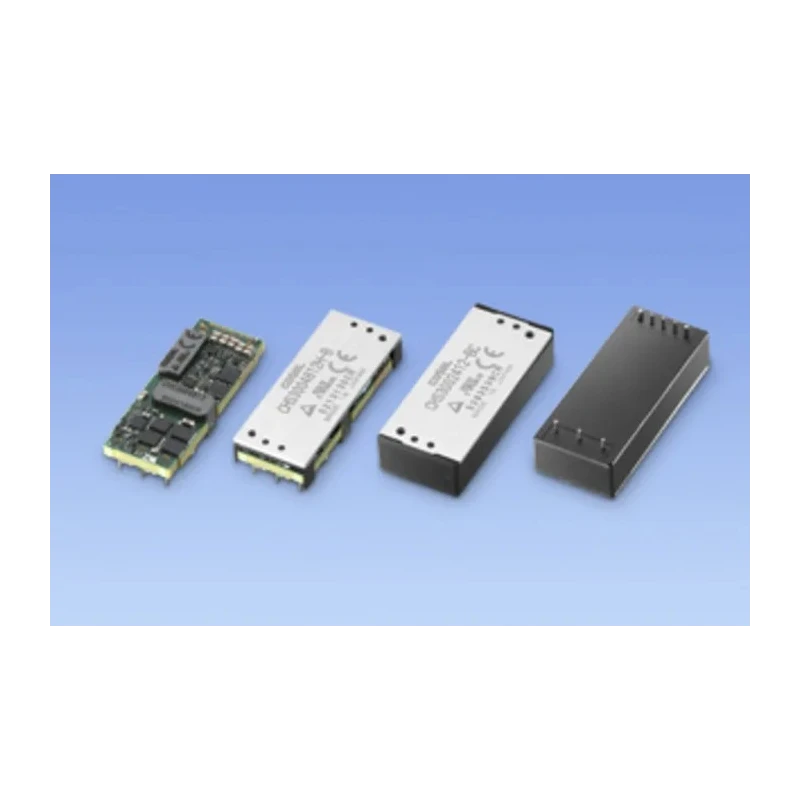

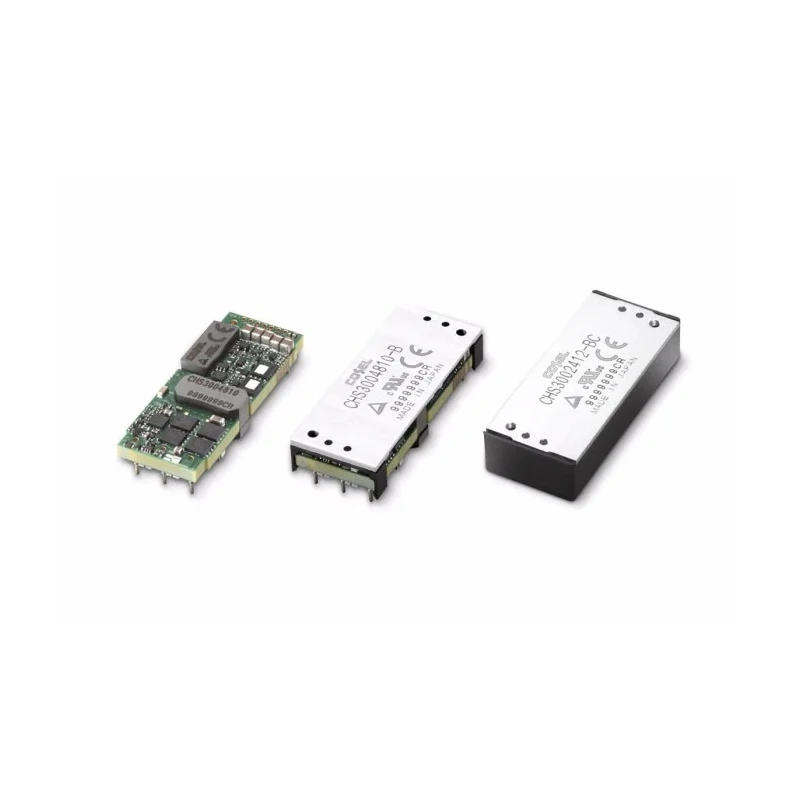

Cosel High-Efficiency DC/DC Converter 10V DC Output 30A, 36-76V DC Input 300W Through Hole DIP Package CHS3004810
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters Cosel CHS DC/DC Converter, 10V dc/ 30 A, 76V dc In |
| Brand | Cosel |
| Efficiency | 94.5% |
| Length | 58.4mm |
| Model | CHS3004810 |
| Depth | 22.86mm |
| Gross Weight | 38g |
| Width | 11mm |
| Mount Type | Through Hole |
| Series | CHS |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Number of outputs | 1 |
| Ripple and Noise | 120mV |
| Maximum Output Power | 300W |
| Maximum Input Voltage | 76V dc |
| Maximum Switching Frequency | 170kHz |
| Standards/Approvals | CE, cURus, RoHS |
| Minimum Input Voltage | 36V |
| Number of Pins | 8 |
| Output Voltage 1 | 10V dc |
| Output Current 1 | 30A |
| Isolation Voltage | 500V dc |
Key Features
- High efficiency of 94.5% ensures minimal energy loss during conversion.
- Built-in overcurrent, overvoltage, and thermal protection circuits for reliable operation.
- Remote ON/OFF functionality allows flexible system control.
- Compact size with dimensions 58.4 x 11 x 22.86 mm suitable for dense electronic assemblies.
- Supports maximum switching frequency of 170 kHz for efficient power regulation.
- Offers ±10% output voltage adjustment for precise voltage control.
- Isolated output with 500V DC isolation voltage enhances safety and noise immunity.
- Designed for temperatures ranging from -85°C to 85°C operating range.
Product Description
Cosel CHS3004810 DC/DC Converter is a high-performance power supply module designed for demanding industrial and electronic applications requiring stable, efficient DC voltage conversion. It converts a wide input voltage range of 36V to 76V DC into a precise 10V DC output at 30 amps, delivering up to 300 watts of power.
The device features a through-hole DIP package, measuring 58.4mm in length, 11mm in width, and 22.86mm in depth, making it suitable for integration into compact electronic assemblies. Its lightweight design at 38 grams ensures minimal added mass to systems.
This converter integrates built-in protection against overcurrent, overvoltage, and thermal overload, enhancing operational reliability even in harsh environments. A remote ON/OFF function allows users to control power delivery conveniently.
It operates at a maximum switching frequency of 170 kHz and provides an efficiency rate up to 94.5%, which reduces heat generation and improves system energy efficiency. The output voltage can be adjusted by ±10%, offering fine-tuning ability for precise voltage requirements.
The CHS3004810 delivers isolated output with an isolation voltage rating of 500V DC, providing safety and noise immunity critical for sensitive electronics. The converter complies with CE, cURus, and RoHS directives, asserting adherence to quality and environmental standards.
This product is ideal for industrial electronics, power management systems, communications equipment, and various embedded electronic solutions requiring robust and efficient DC conversion.
High efficiency minimizes energy waste and heat. Built-in protection circuits ensure safe operation. Adjustable output voltage for application-specific needs. Compact through-hole DIP package for easy PCB integration. Wide operating temperature range for versatile use.
Compliance with international safety and environmental standards. Explore more power and converter solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 36V to 76V DC.
This unit provides a maximum output current of 30A.
It has an efficiency rating of 94.5%, ensuring minimal energy loss during conversion.
The dimensions of the converter are 58.4mm in length, 11mm in width, and 22.86mm in depth.
The isolation voltage rating is 500V DC, which enhances safety and noise immunity.
The maximum switching frequency is 170 kHz, allowing for efficient power regulation.
Yes, it includes built-in overcurrent, overvoltage, and thermal protection circuits for reliable operation.
This model uses a through-hole DIP package, suitable for compact electronic assemblies.
The operating temperature range is from -85°C to 85°C.
It complies with CE, cURus, and RoHS directives, ensuring adherence to quality and environmental standards.
Yes, the output voltage can be adjusted by ±10% for precise voltage control.
The weight of this converter is 38 grams.
