HARWIN 40-Contact 2 Row 2.54 mm Pitch Straight Surface PCB Socket M20-7872042

Free Delivery in India | Lowest Global Shipping Charges

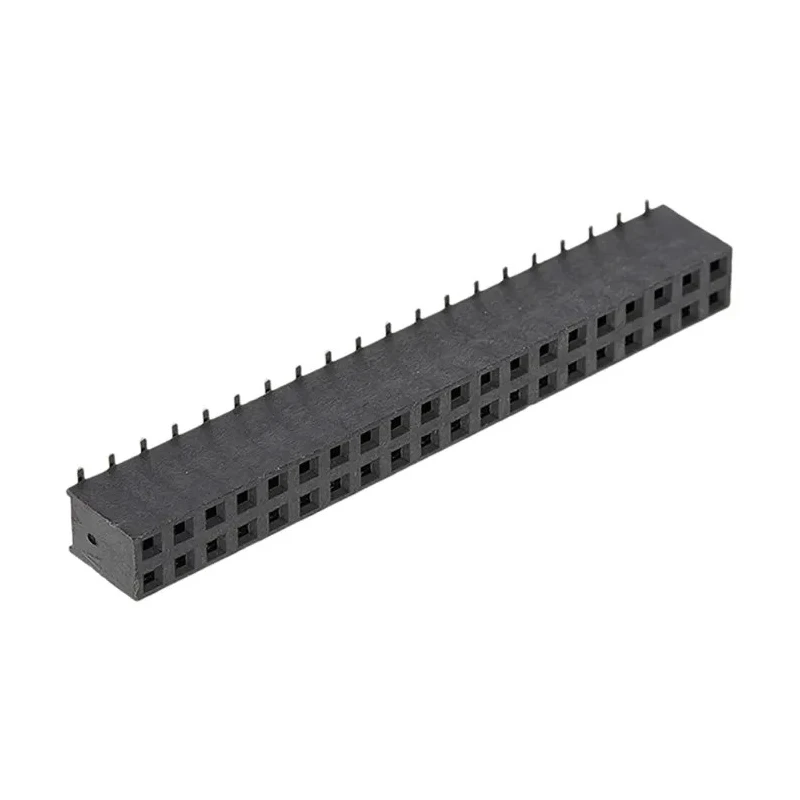

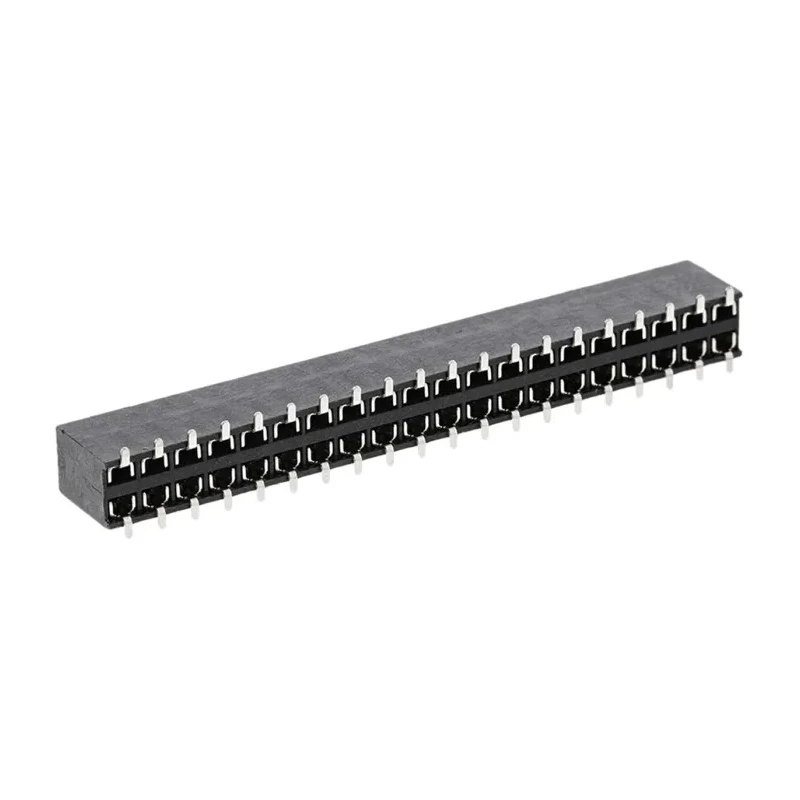

HARWIN 40-Contact 2 Row 2.54 mm Pitch Straight Surface PCB Socket M20-7872042

Name: HARWIN 40-Contact 2 Row 2.54 mm Pitch Straight Surface PCB Socket M20-7872042
Brand: HARWIN
SKU: 210683
Price: 5.81 USD
Availability: InStock



Category PCB Sockets Brand HARWIN Condition New

Specifications

Country of Origin	Taiwan
Brand	HARWIN
Orientation	Straight
Current	12A
Model	M20-7872042
Mount Type	Surface
Housing Material	Nylon
Contact Material	Bronze
Series	M20
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector System	Board-to-Board

Key Features

This PCB socket utilizes a durable phosphor bronze contact with gold plating for excellent electrical contact.
It features a compact, space-saving dual entry SMT design suitable for top and bottom entry.
The housing material is nylon, providing strong insulation and mechanical stability.
Rated for a current of 12 A, the socket supports a wide operating temperature range from -40°C to 105°C.
Its straight orientation and surface mount design allow versatile PCB assembly options.
Compliant with RoHS standards, ensuring environmental safety and quality assurance.
Ideal for applications in consumer electronics, communications, industrial monitoring, and control systems.

Product Description

The HARWIN M20-7872042 is a high-quality 40-contact, 2-row straight surface PCB socket featuring a 2.54 mm pitch. Designed for board-to-board connector applications, this M20 series SMT socket provides a compact and industry-standard space-saving design that facilitates efficient PCB layouts.

Manufactured with phosphor bronze contacts and gold plating, the socket ensures high durability, reliable electrical connections, and excellent repeatability during multiple mating cycles. The dual beam contact design increases contact retention reliability, ideal for demanding industrial and commercial applications.

The nylon housing offers robust insulation and mechanical stability, while the surface mount technology (SMT) mount type supports automated PCB assembly and soldering processes. Its straight orientation makes it compatible with various PCB configurations for both top and bottom entries.

Operating specifications include a 12 A current rating and wide temperature tolerance from -40°C up to 105°C, enabling use in harsh environments. This socket meets RoHS directives, ensuring compliance with environmental and safety standards.

Typical applications for the HARWIN M20 Series socket include consumer electronics, communication devices, drives and control systems, industrial monitoring equipment, and personal computing hardware, making it a versatile solution for board connectivity needs.

This connector features 40 female contacts arranged in 2 rows. The pitch between contacts is 2.54 mm, suitable for standard PCB designs. Mounting type is surface mount for SMT assembly compatibility. The contact material is bronze with gold plating for corrosion resistance.

Rated for a maximum current of 12 A and an operating temperature range of -40°C to 105°C. Housing is made of durable nylon providing sufficient insulation and mechanical strength. The connector system supports board-to-board connections with a straight orientation.

It conforms to RoHS standards, ensuring it meets electronic assembly regulations.

Set yourself up for industrial, laboratory, and manufacturing success with the reliable HARWIN M20 Series PCB Sockets. Browse more PCB connectors and electronic components at EnvMart for comprehensive solutions.
