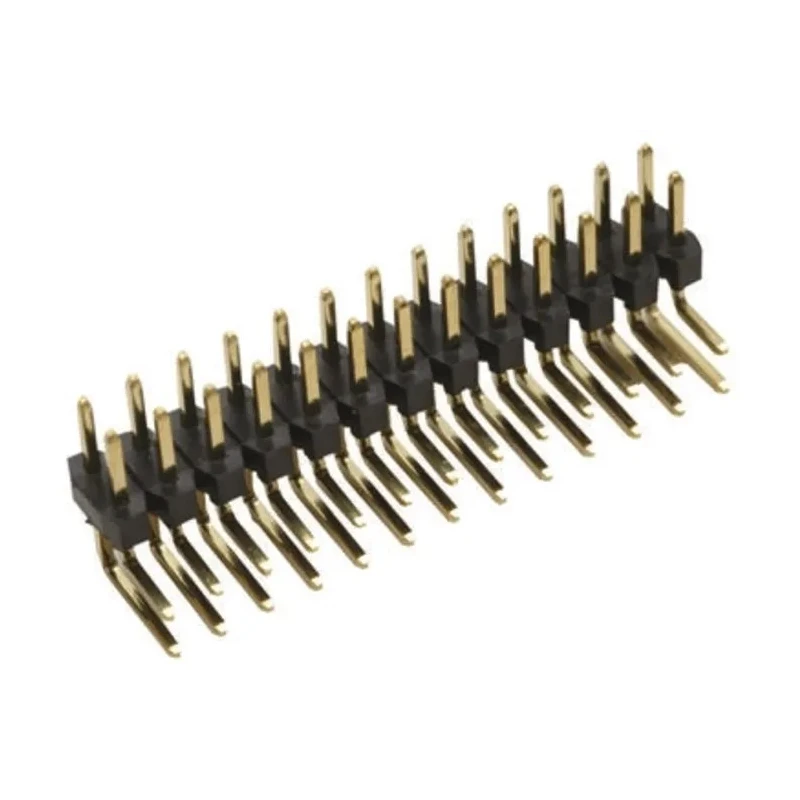

HARWIN M22 Series Right Angle Through Hole Pin Header 40 Contacts 2 mm Pitch 2 Row Unshrouded M22-2042005
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Right Angle |
| Current | 1A |
| Model | M22-2042005 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 3.5mm |
Key Features
- The pin header features unshrouded design suitable for various electronic applications.
- Supports a current rating of 1 Ampere ensuring efficient electrical conduction.
- Constructed with nylon housing for high temperature resistance and durability.
- Phosphor bronze male contacts with gold plating offer excellent corrosion resistance and conductivity.
- The right angle orientation facilitates compact PCB layouts in embedded systems.
- Pin header mount type is through hole for secure installation and robust mechanical strength.
- Suitable for solder termination type ensuring reliable connection integrity.
- Operating temperature range from -40°C to 105°C accommodates diverse environments.
Product Description
HARWIN M22-2042005 is a high-quality right angle through hole pin header connector designed for board-to-board connection in electronic assemblies. Featuring 40 male contacts arranged in two rows with 2 mm pitch, this unshrouded connector is engineered to provide durable and reliable electrical interfacing.
The connector housing is made of high temperature nylon thermoplastic, enabling it to withstand reflow soldering processes commonly used in modern PCB manufacturing. The phosphor bronze contacts are plated with gold for superior conductivity and corrosion resistance, ensuring longevity and consistent performance.
This M22 series header’s right angle orientation makes it ideal for compact and space-critical designs in embedded PCs, motherboards, and large electronic systems. The connector supports a current rating of 1 Ampere and operates reliably within a temperature range of -40°C to 105°C, allowing use in a broad range of industrial and consumer electronic applications.
The design includes castellated housings allowing users to easily cut the headers to required sizes, while care must be taken to avoid damaging the solder tails. The pin header features unshrouded male contacts with gold plating.
Housing material is durable nylon resistant to high temperature soldering. Through hole mount type ensures a secure, robust PCB attachment. Right angle orientation suits tight PCB layouts. The component supports standard 2 mm pitch with 40 contacts in two rows.
Mating pin length is 3.5 mm for reliable socket engagement. Operation temperature ranges from -40°C up to 105°C for industrial use. Current rating of 1 Amp allows moderate electrical loads.
This connector series is widely used in consumer electronics, communications equipment, and industrial monitoring systems. It is an established standard for embedded PC and motherboard applications where reliable board-to-board connector performance is critical.
Explore more PCB Headers and connectors from HARWIN on EnvMart for your electronics projects and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The M22-2042005 pin header has a current rating of 1 Ampere, ensuring efficient electrical conduction.
This pin header operates reliably within a temperature range of -40°C to 105°C, accommodating diverse environments.
The housing is constructed from nylon, while the contacts are made of phosphor bronze with gold plating for corrosion resistance and conductivity.
This model features 40 male contacts arranged in two rows with a 2 mm pitch.
The M22-2042005 uses a through hole mount type for secure installation and robust mechanical strength.
The mating pin length for this connector is 3.5 mm, ensuring reliable socket engagement.
This pin header has a right angle orientation, making it suitable for compact PCB layouts.
The M22-2042005 supports solder termination type, ensuring reliable connection integrity.
The maximum operating temperature for this pin header is 105°C, suitable for various industrial applications.
This pin header is unshrouded, which allows for versatile use in various electronic applications.
This model is widely used in consumer electronics, communications equipment, and industrial monitoring systems.
The tail pin length for this connector is 3 mm, providing a secure connection when soldered.
