HARWIN M22 Series Straight Through Hole Pin Header 20 Contacts 2 mm Pitch 1 Row Unshrouded M22-2012005

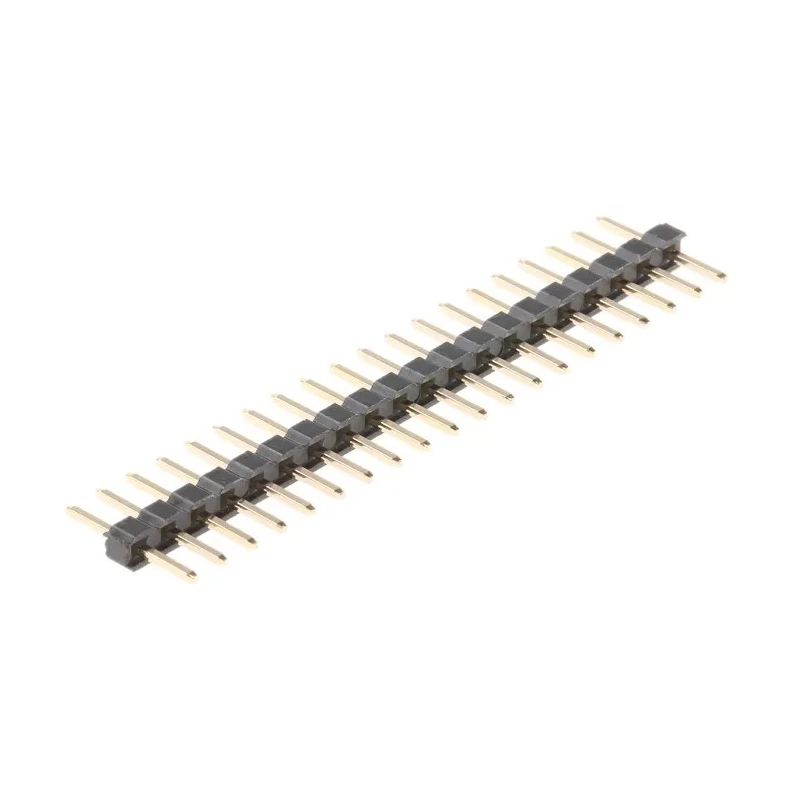

HARWIN M22-2012005 is a straight through hole pin header featuring 20 male contacts arranged in a single row with 2 mm pitch. This PCB connector is built with a nylon housing that withstands the high temperatures encountered during reflow soldering processes, making it suitable for robust electronics manufacturing environments.

The contact pins are fabricated from phosphor bronze and plated with gold to deliver excellent electrical conductivity and corrosion resistance over long service life. Designed to operate reliably between -40°C and 105°C, this pin header accommodates a 1A current rating, ideal for various industrial, consumer electronics, and embedded system applications.

The header’s tail pins have a length of 3.4 mm, and the mating pins extend 3.5 mm, offering secure board-to-board connections. As an unshrouded connector, it enables straightforward access and connection while maintaining durability. This component is through-hole mounted to PCBs, facilitating strong mechanical and electrical bonds.

Common uses of the HARWIN M22 series include embedded PCs, motherboards, industrial monitoring systems, and communication devices. Its versatility and standardized pitch ensure it suits a wide range of electronics assembly and manufacturing needs.

Features a straight orientation for easy integration on PCB boards. Constructed with durable nylon housing supporting high-temperature reflow soldering. Contacts made of phosphor bronze with gold plating ensure reliable conductivity and corrosion resistance.

Designed for a maximum operating temperature of 105°C and minimum of -40°C. Unshrouded pin header type with a 3.4 mm tail pin length and 3.5 mm mating pin length. Supports a maximum current rating of 1A for moderate power applications.

Through hole mount type suitable for secure PCB attachment. Compatible with M22 series sockets and jumpers for versatile use. Manufactured in Taiwan, Province Of China, ensuring quality production standards. Explore EnvMart's extensive catalog of PCB connectors, headers, and other electronics components to support your project and manufacturing requirements.
