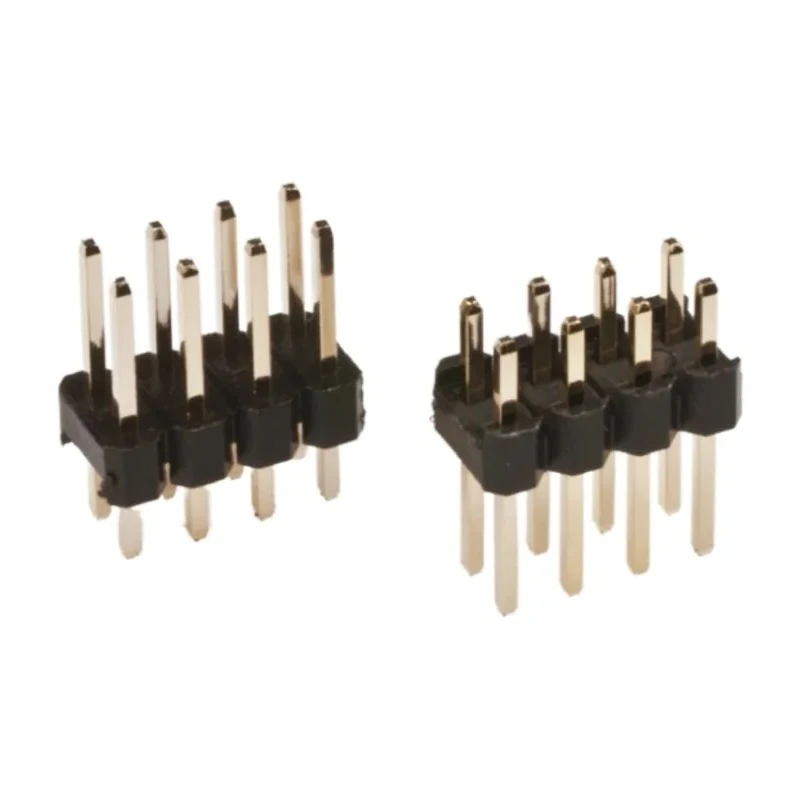

HARWIN M20 Series 2.54 mm Pitch 16 Contact Straight Through Hole Pin Header, 2 Row, Unshrouded M20-9980845

HARWIN M20-9980845 is a high-quality straight through hole pin header designed for PCB connectivity with 16 male contacts arranged in 2 rows and a standard 2.54 mm pitch. The connector housing is made from nylon thermoplastic capable of withstanding reflow soldering temperatures, enabling reliable surface mount or through-hole assembly processes.

The pin header features gold-plated brass contacts providing excellent conductivity and corrosion resistance. It supports a maximum continuous current rating of 3A and operates within a temperature range of -40°C to 105°C, making it suitable for diverse industrial, consumer electronics, communication equipment, and embedded system applications.

The unshrouded, dual-row configuration offers easy access to the pins while ensuring a secure mating with corresponding M20 series sockets and connectors. Tail pins measure 3 mm for solder termination, and mating pins extend 6.1 mm ensuring robust connectivity. Its thermoplastic housing includes castellations that allow users to cut the connector to a smaller size if required, providing design flexibility.

This M20 series pin header is widely used in motherboards, embedded PC boards, industrial control systems, and other electronics requiring durable and configurable connector solutions. Its board-to-board and wire-to-board compatibility makes it a versatile choice for prototyping and production environments.

Constructed with nylon housing suitable for high temperature soldering processes. 16 gold-plated brass contacts ensuring reliable male pin connections. Dual-row design with 2.54 mm pitch for versatile board-to-board and wire-to-board applications.

Supports current of up to 3A with operating temperature range from -40°C to 105°C. Tail pin length of 3 mm and mating pin length of 6.1 mm optimize soldering and mating reliability. Unshrouded configuration enables easy access and installation.

Thermoplastic housing features castellations allowing size customization by trimming as needed. Compatible with M20 series PCB sockets, socket housings, and jumpers for flexible design integration.

Choose HARWIN M20-9980845 pin headers for reliable, consistent, and customizable PCB interconnection in industrial, commercial, telecom, and computing applications. Explore more PCB headers and connectors from HARWIN at EnvMart.
